OE Quality
60-Day Returns

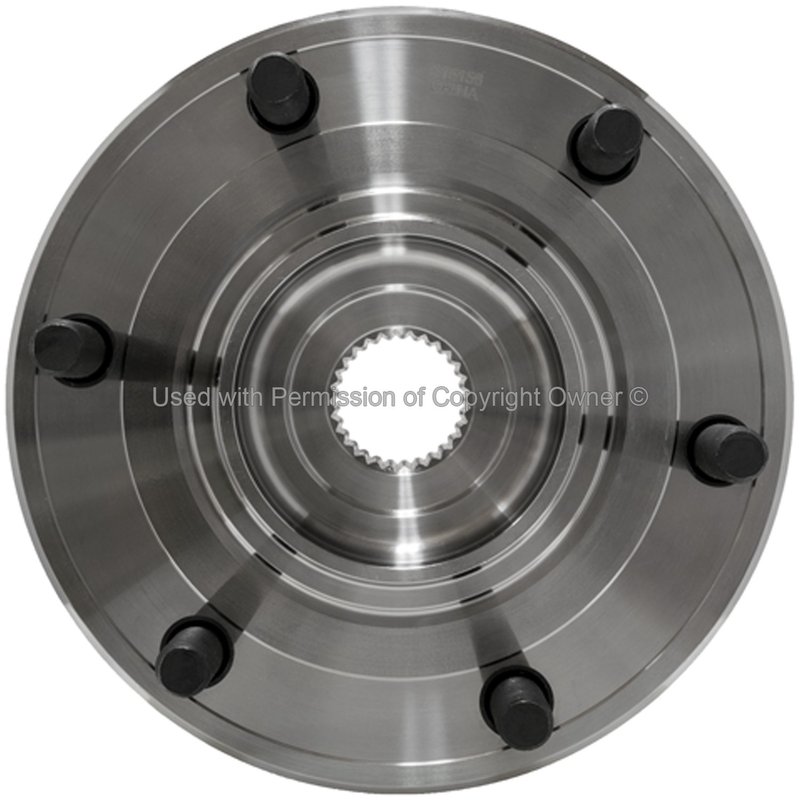

MPA Electrical WH515156 Wheel Bearing and Hub Assembly - Front
Front Wheel Hub Assembly for Nissan Armada and Titan
MPA Electrical WH515156 is a front wheel bearing and hub assembly built for select Nissan full-size trucks and SUVs. It combines the hub, bearing, ABS sensor, flange, and seal components needed for a direct front-end replacement on 2012-2015 Nissan Armada and 2012-2015 Nissan TITAN applications.
Key Features
- Front wheel hub assembly for Nissan Armada and Nissan TITAN
- 29-spline hub design with steel construction
- Integrated ABS sensor included for sensor-type anti-lock brake systems
- Flange included with triangle shape, 3 bolt holes, and 6.735-inch diameter
- 6-stud hub with M12 x 1.25 wheel studs
- Gasket or seal included
- New quality-built hub and bearing assembly
Product Details
WH515156 is a front wheel bearing and hub assembly engineered for vehicles that use a 29-spline front hub setup and a sensor-style ABS system. The steel hub body, 3-bolt flange, and integrated anti-lock brake sensor support a clean OE-style replacement for the front axle on Nissan Armada and Nissan TITAN models. This part cross-references Nissan 40202-9FG0A for the same application. MPA Electrical WH515156 is a practical choice when replacing a worn front hub on a 2012-2015 Nissan Armada or 2012-2015 Nissan TITAN.
Common Problems This Part Can Address
- Front wheel bearing noise or growling from the hub area
- ABS warning light caused by a failed hub-mounted sensor
- Front wheel looseness or play from hub wear
- Uneven hub rotation or rough front-end operation
- Corrosion or damage at the front hub flange
Installation Notes
Fits 2012 Nissan Armada, front; Fits 2013-2015 Nissan Armada, front; Fits 2012 Nissan TITAN, front; Fits 2013-2015 Nissan TITAN, front. Axle nut torque specification should be verified in the OE service manual during installation. Confirm spline count, flange dimensions, ABS sensor style, and wheel stud size before installation to match the original front hub assembly. MPA Electrical WH515156 should be installed on the front axle only for the listed applications.
Quality Assurance
MPA Electrical supplies this as a new, quality-built hub and bearing assembly for direct replacement use. The part is built with steel construction, an included ABS sensor, and an included seal to support consistent fitment on the specified Nissan Armada and Nissan TITAN front applications.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH515156 |
| Spline Quantity | 29 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Flange Shape | Triangle |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Bolt Hole Diameter | 4.75 |
| Flange Offset | 1.788 |
| Flange Diameter | 6.735 |
| Flange Diameter Inch | 6.735 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.505 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 29 |
| Stud Quantity | 6 |
| Wheel Stud Size MM | M12 x 1.25 |
| Wiring Harness Included | No |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Nissan | Armada | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Nissan | TITAN | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Nissan | Armada | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Nissan | TITAN | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Nissan | Armada | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Nissan | TITAN | 5.6L | V8 | Front | Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Nissan | Armada | 5.6L | V8 | Front | From 12/2011; Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Nissan | TITAN | 5.6L | V8 | Front | From 12/2011; Wheel Hub Assembly; Front, Axle Nut Torque Spec: Refer to OE service manual |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
