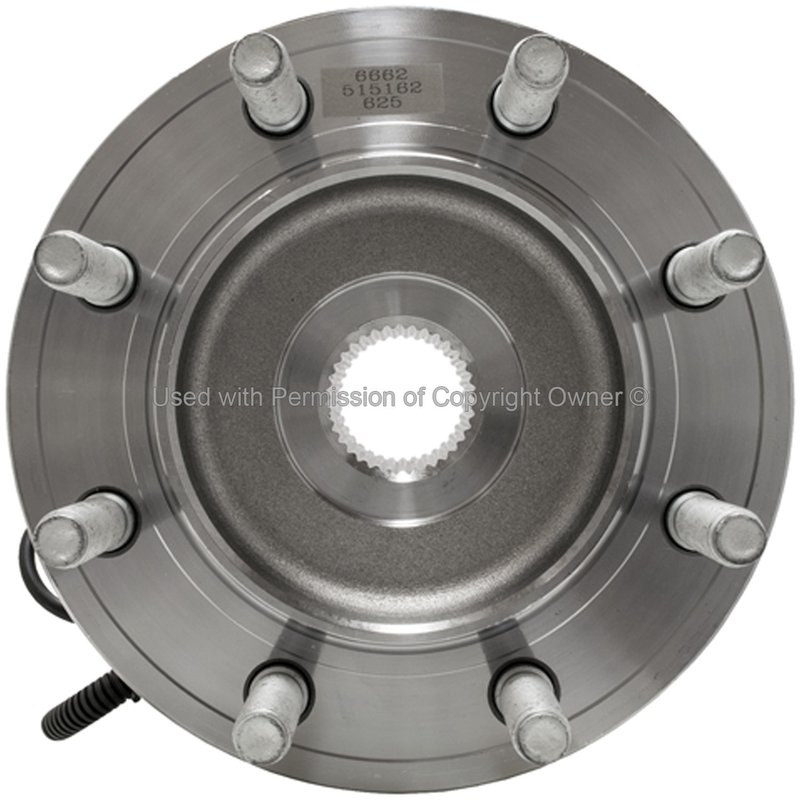

MPA Electrical WH515162 Wheel Bearing and Hub Assembly - Front
Reliable Wheel Bearing and Hub Assembly for Ram 2500 and 3500
The MPA Electrical WH515162 wheel bearing and hub assembly is engineered to meet the demands of Ram 2500 and 3500 trucks. Designed with precision, this new steel hub assembly includes an integrated anti-lock braking system (ABS) sensor to ensure optimal vehicle safety and performance.
- Compatible with Ram 2500 and 3500 models
- 35 spline count for secure axle engagement
- Includes square flange with 4 bolt holes (6.5 mm diameter)
- Equipped with ABS sensor and wiring harness not included
- Flange diameter of 8.073 inches and flange offset of 2.216 inches
- 8 wheel studs sized M14 x 1.5 for reliable wheel mounting
- Includes gasket or seal for proper installation
- Constructed from durable steel material
- Non-greaseable design for maintenance-free operation
Detailed Product Description
The MPA Electrical WH515162 wheel bearing and hub assembly is a direct replacement part designed specifically for Ram 2500 and 3500 trucks. Featuring a 35 spline count, this assembly ensures a precise fit with the axle shaft, providing reliable torque transfer and wheel alignment. The square flange design includes four bolt holes with a 6.5 mm diameter, supporting secure attachment to the vehicle’s driveline. The flange diameter measures 8.073 inches with an offset of 2.216 inches, matching factory specifications for proper fitment.
This assembly comes with an integrated anti-lock braking system (ABS) sensor, which is essential for maintaining accurate wheel speed data and enhancing braking performance. The ABS sensor is included, but the wiring harness is not part of the package. The hub pilot diameter is 5.51 inches, ensuring proper centering on the axle. Constructed from high-quality steel, this new hub assembly is built to withstand the rigors of heavy-duty use without requiring grease maintenance.
Common Applications and Problem Resolution
- Replacement for worn or damaged wheel bearing and hub assemblies on Ram 2500 and 3500
- Fixes wheel vibration or noise caused by bearing wear
- Restores proper ABS sensor function to prevent braking issues
- Addresses wheel hub looseness or play affecting vehicle handling
- Resolves seal leaks that can lead to contamination and premature failure
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes align correctly with the vehicle’s mounting points. Use the included gasket or seal to prevent contamination and maintain bearing integrity. Since this assembly is non-greaseable, no additional lubrication is required during installation. Confirm ABS sensor connections are properly secured and tested after installation.
Quality Assurance and Warranty
The MPA Electrical WH515162 wheel bearing and hub assembly is supplied new and manufactured to meet OEM standards for fit and function. Constructed from durable steel, it is designed for long service life under demanding conditions. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
| Brand | MPA Electrical |
| Part Number | WH515162 |
| Spline Quantity | 35 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Square |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Bolt Hole Diameter | 6.5 |
| Flange Offset | 2.216 |
| Flange Diameter | 8.073 |
| Flange Diameter Inch | 8.073 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 5.51 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 35 |
| Stud Quantity | 8 |
| Wheel Stud Size MM | M14 x 1.5 |
| Wiring Harness Included | No |
This part fits 37 vehicles. Search below:
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Ram | 2500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2018 | Ram | 2500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2018 | Ram | 2500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2018 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2018 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2018 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 2500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 2500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 2500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2017 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 2500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 2500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 2500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2016 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 2500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 2500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 2500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2015 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 2500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 2500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 2500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ SRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ DRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | Cab & Chassis | 4WD | 6.7L | L6 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ SRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ DRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | Cab & Chassis | 4WD | 6.4L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ SRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs. , w/ DRW; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual | |
| 2014 | Ram | 3500 | Cab & Chassis | 4WD | 5.7L | V8 | Front | Axle Nut Torque Spec: Torque to 132 ft. lbs., rotate wheel 5 to 10 times, tighten final torque to 263 ft. lbs.; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Ram | 3500 | 4WD | 6.7L | L6 | Front |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
