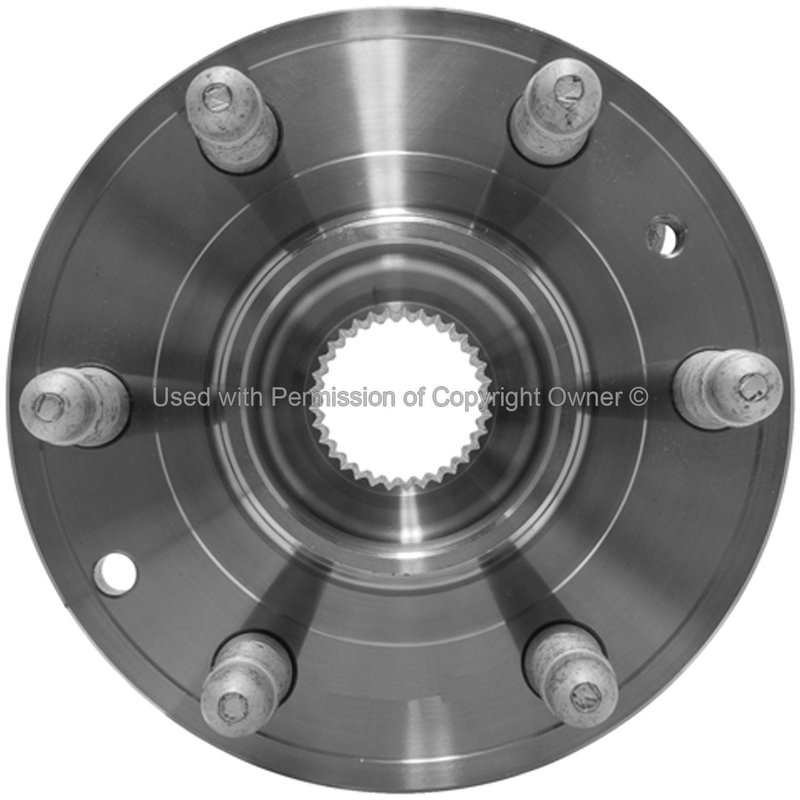

MPA Electrical WH515167 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Chevrolet and GMC

The MPA Electrical WH515167 wheel bearing and hub assembly is designed specifically for Chevrolet Canyon and GMC Colorado models. Engineered with precision, this new steel hub assembly ensures proper fitment and reliable driveline performance.

• 33 spline quantity for accurate drivetrain engagement
• Includes trapezoid-shaped flange with 4 bolt holes
• Flange diameter of 6.028 inches and offset of 2.285 inches
• Equipped with an encoder-type anti-lock braking system (ABS) interface
• Includes gasket or seal for secure installation
• 6 wheel studs sized M12 x 1.75 for secure wheel mounting
• Hub pilot diameter of 3.564 inches for precise alignment
• Constructed from durable steel material

Detailed Product Description

The MPA Electrical WH515167 wheel bearing and hub assembly is a direct replacement part designed to meet the specifications of Chevrolet Canyon and GMC Colorado vehicles. Featuring a 33-spline design, this assembly ensures proper torque transfer and drivetrain compatibility. The trapezoid flange shape with four bolt holes and a flange diameter of 6.028 inches provides a secure mounting surface. The flange offset of 2.285 inches maintains correct wheel positioning relative to the suspension and brake components.

This assembly supports an encoder-type anti-lock braking system (ABS), although it does not include the ABS sensor itself. The inclusion of a gasket or seal helps prevent contamination and maintains bearing integrity. With six M12 x 1.75 wheel studs, the hub assembly offers a secure and stable wheel attachment. The steel construction provides strength and durability for long-term use under typical driving conditions.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chevrolet Canyon and GMC Colorado
• Addresses wheel vibration or noise caused by bearing wear
• Resolves ABS warning lights related to hub encoder issues (sensor sold separately)
• Corrects wheel alignment problems due to flange or hub damage
• Prevents grease leakage and contamination with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the mounting surface thoroughly to remove debris and old gasket material. Verify the flange bolt hole alignment and spline engagement during assembly. Since this hub assembly is not greaseable, avoid over-lubrication. The ABS sensor must be installed separately if required by the vehicle. Torque all fasteners to manufacturer specifications to ensure proper fit and function.

Quality Assurance and Warranty

This MPA Electrical WH515167 wheel bearing and hub assembly is supplied new and manufactured from high-quality steel to meet OEM standards. It undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, the product condition and materials support reliable service life when installed correctly on compatible Chevrolet Canyon and GMC Colorado models.
