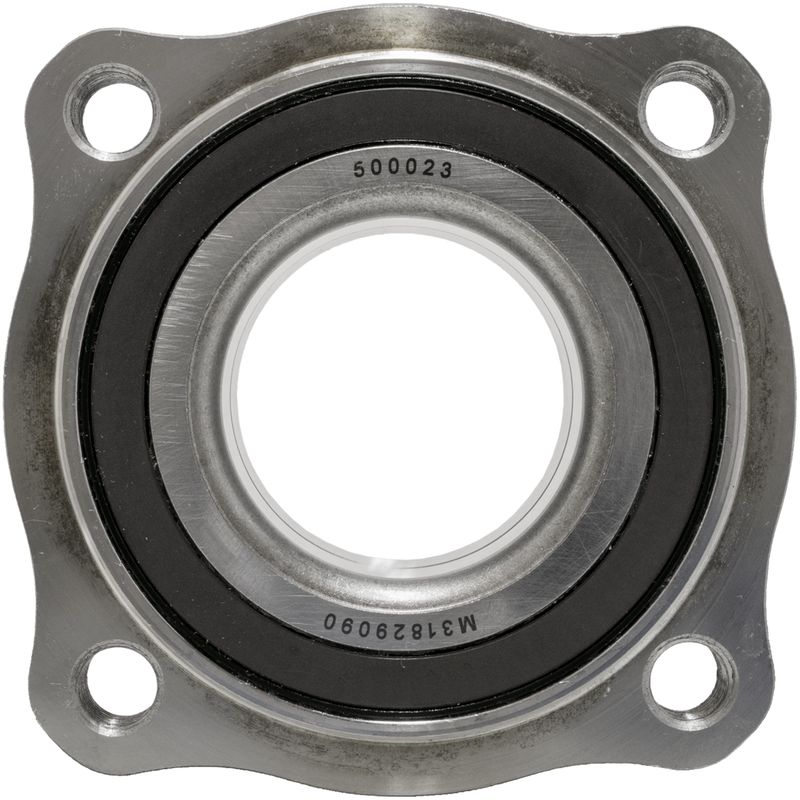

MPA Electrical WH515206 Wheel Bearing and Hub Assembly - Front
| Brand | MPA Electrical WH515206 |
|---|---|
| Position | Front |
| Spline Quantity | 35 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 4.723 |
| Flange Shape | Square |
| Anti Lock Brake Sensor Included | Yes |
| Grade Type | Standard replacement |
| Flange Bolt Hole Diameter | 6.5 |
| Flange Offset | 2.22 |
| Flange Diameter | 8.07 |
| Bolt Circle Diameter | 165.1 |
| Bolt Circle Diameter | 6.5 |
| Material | Steel |
| Product Condition | New |
| Wiring Harness Included | No |
| Fits | Ram · 12 vehicles |
OE replacement. Installation-ready wheel hub assembly for direct service replacement.
Steel construction. Standard replacement design with a durable metal hub body.
Integrated ABS sensor. Includes sensor support for complete hub assembly service.
Cross-references 6829 2887AA for the same application. See all 1.
OE Replacement Wheel Hub Assembly
The MPA Electrical WH515206 wheel bearing and hub assembly is built for professional repair work and direct replacement service. It is installation ready out of the box and includes the components needed to restore safe vehicle operation on compatible heavy-duty trucks.
Key Features
- OE replacement wheel hub assembly for straightforward service
- Steel construction with a standard replacement grade
- Includes flange, wheel studs, and an ABS sensor
- Square flange design with 8.07-inch flange diameter
- 35-spline hub with 6.5-inch bolt circle diameter
Detailed Description
WH515206 is a new wheel bearing and hub assembly from MPA Electrical for front applications on the Ram 2500 and Ram 3500. The assembly uses a steel hub design with a 4.723-inch hub pilot diameter, 4-bolt flange pattern, and integrated anti-lock brake sensor to support a complete hub replacement. The WH515206 is a practical choice when replacing a worn hub on a Ram 2500 or Ram 3500, and the WH515206 part number is useful for matching the correct service part during ordering.
This part cross-references Monroe Shocks & Struts (e.g., 6829, 2887AA) for the same application.
What It Is Used For
- Restoring proper wheel support when the hub bearing is worn or noisy
- Replacing a damaged flange or wheel stud mounting surface
- Addressing ABS sensor-related hub service needs
- Correcting looseness, vibration, or rough wheel rotation at the hub
Installation Notes and Tips
Fits 2019-2024 Ram 2500, front. Fits 2019-2024 Ram 3500, front. Verify spline count, bolt circle diameter, flange dimensions, and sensor configuration before installation. Confirm the WH515206 part number against the removed unit and vehicle service information to ensure proper application.
Quality Assurance
MPA Electrical markets this wheel hub assembly as an OE replacement part built for installation-ready service and professional installer demands.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2024 | Ram | 3500 | 6.7L | L6 | Front | — |
| 2023 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2023 | Ram | 3500 | 6.7L | L6 | Front | — |
| 2022 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2022 | Ram | 3500 | 6.7L | L6 | Front | — |
| 2021 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2021 | Ram | 3500 | 6.7L | L6 | Front | — |
| 2020 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2020 | Ram | 3500 | 6.7L | L6 | Front | — |
| 2019 | Ram | 2500 | 6.7L | L6 | Front | — |
| 2019 | Ram | 3500 | 6.7L | L6 | Front | — |
