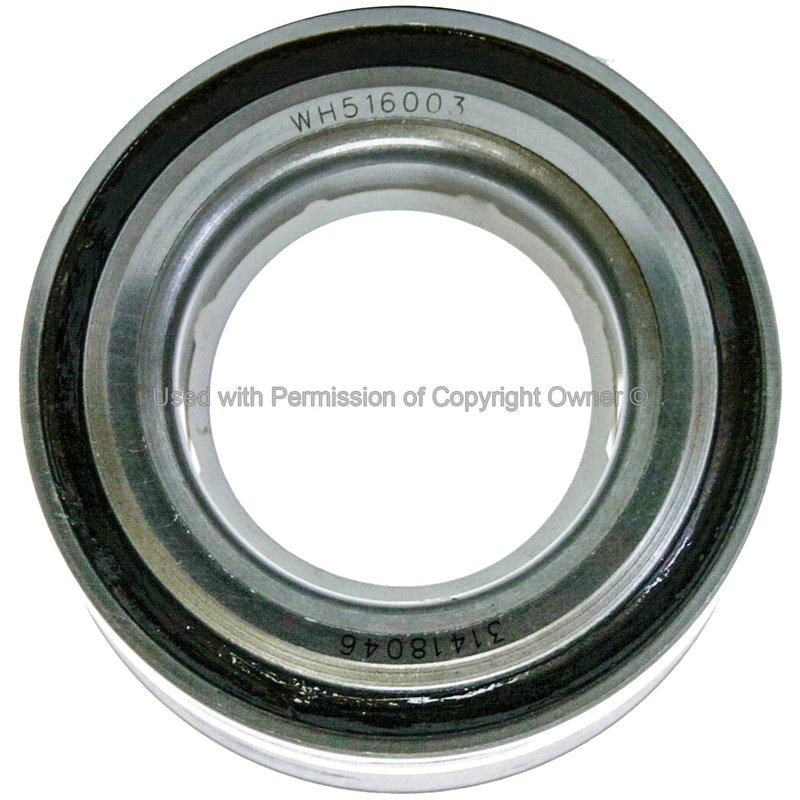

MPA Electrical WH516003 Wheel Bearing - Rear Inner
| Brand | MPA Electrical WH516003 |
|---|---|
| Position | Rear Inner |
| Gasket or Seal Included | No |
| Greaseable | Yes |
| Hub Pilot Diameter Inch | 2.834 |
| Material | Steel |
| Product Condition | New |
| Fits | Saab and Subaru · 13 vehicles |
New steel construction. Built as a replacement wheel bearing with a durable metal housing.
Greaseable design. Provides service access for maintenance-focused applications.
Quality-Built line. MPA Electrical catalogs this part in its Hubs & Bearings product line.
Cross-references 32 00 6253 and 28016PA010 for the same application. See all 2.
Wheel Bearing Overview
This MPA Electrical wheel bearing is a new steel replacement for rear inner applications with greaseable serviceability. It is built for compatible Subaru and Saab applications and is identified by part number WH516003.
Key Features
- New steel construction for a durable bearing assembly.
- Greaseable design for service access.
- Hub pilot diameter measures 2.834 inches.
- No gasket or seal included.
- Part number WH516003 for ordering and catalog matching.
Fitment Details
- Fits 2004-2007 Subaru Impreza, rear inner.
- Fits 2005-2006 Saab 9-2X, rear inner.
- Fits 1992-1997 Subaru SVX, rear inner.
What It Is Used For
- Replacing a worn or noisy rear inner wheel bearing.
- Addressing wheel play or looseness at the hub assembly.
- Restoring smooth wheel rotation in the rear axle area.
- Correcting bearing wear that can affect driveline operation.
Installation Notes
Verify rear inner fitment against the vehicle application before installation. Match the axle nut torque specification listed for the application: 140 ft-lbs / 190 Nm on 2004-2007 Subaru Impreza and 2005-2006 Saab 9-2X, and 138 ft-lbs / 187 Nm on 1992-1997 Subaru SVX. Confirm the hub pilot diameter and bearing orientation during service.
Quality Assurance
MPA Electrical lists this part under its Quality-Built Hubs & Bearings line. Cross-reference numbers include 32 00 6253 and 28016PA010 for the same application. Part number WH516003 is a new replacement component.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Subaru | Impreza | WRX STI | Sedan | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2007 | Subaru | Impreza | WRX STI Limited | Sedan | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2006 | Saab | 9-2X | Aero | — | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2006 | Subaru | Impreza | WRX STI | Sedan | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2005 | Saab | 9-2X | Aero | — | 2.0L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2005 | Subaru | Impreza | WRX STI | Sedan | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 2004 | Subaru | Impreza | WRX STI | Sedan | 2.5L | H4 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 140 ft-lbs / 190Nm |
| 1997 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
| 1996 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
| 1995 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
| 1994 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
| 1993 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
| 1992 | Subaru | SVX | — | — | 3.3L | H6 | Rear Inner | Wheel Bearing; Axle Nut Torque Spec: 138 ft-lbs / 187Nm |
