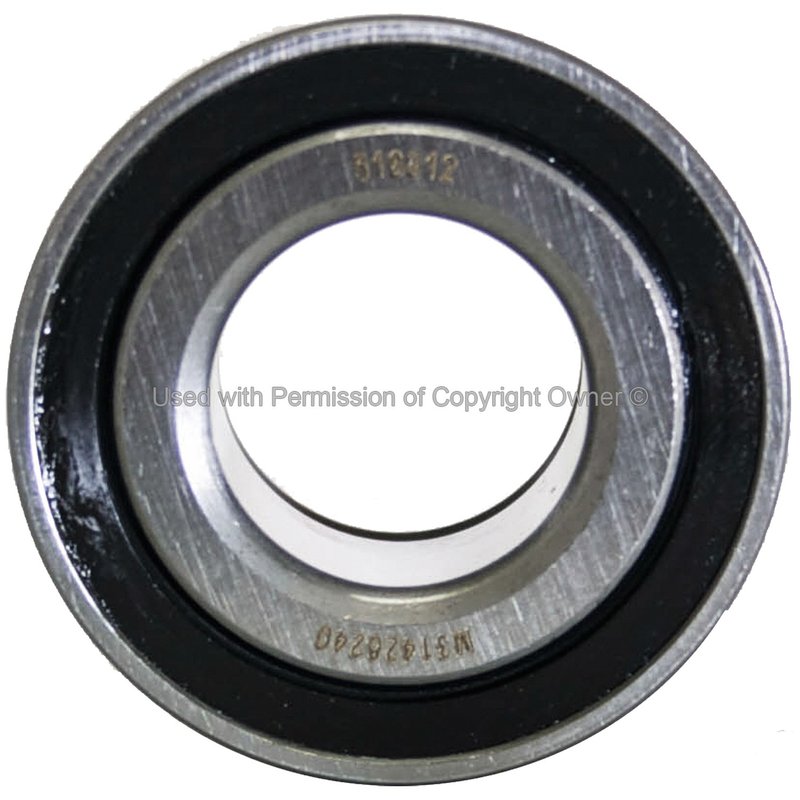

MPA Electrical WH516012 Wheel Bearing - Rear

Rear Wheel Bearing for Select Chevrolet, Pontiac, Suzuki, and Nissan

MPA Electrical WH516012 is a new rear wheel bearing built with a steel construction and a 2.048-inch hub pilot diameter. It is specified for select Chevrolet Aveo, Chevrolet Spark, Pontiac G3, Pontiac Wave, Suzuki Swift+, and Nissan Platina applications, with fitment covering model years from 2002 through 2021.

Key Features

• New rear wheel bearing for driveline and axle service
• Steel construction for durable bearing support
• Hub pilot diameter: 2.048 inches
• No gasket or seal included
• Not greaseable
• Quality-Built Hubs & Bearings product line
• Cross-reference part number: 77012-05812

Detailed Description

MPA Electrical WH516012 is a rear wheel bearing engineered for direct replacement service on select compact Chevrolet, Pontiac, Suzuki, and Nissan vehicles. This bearing is a new steel unit and is listed under MPA Electrical’s Quality-Built Hubs & Bearings line. It is a practical choice for rear wheel service on applications such as the Chevrolet Aveo, Chevrolet Spark, and Pontiac G3, where correct bearing fit and hub pilot dimensions are important for proper assembly.

This part cross-references 94535214 for the same application. Use WH516012 when servicing rear wheel bearing concerns on compatible Chevrolet Aveo, Chevrolet Spark, Pontiac Wave, Suzuki Swift+, and Nissan Platina models.

What It Is Used For

• Replacing a worn or noisy rear wheel bearing
• Restoring smooth rear wheel rotation
• Addressing wheel play or looseness at the hub
• Correcting bearing-related vibration or rumble from the rear axle area
• Supporting proper wheel hub operation on select Chevrolet Aveo and Pontiac G3 applications

Installation Notes and Tips

• Fits 2018-2021 Chevrolet Beat, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2004-2017 Chevrolet Aveo, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2011-2017 Chevrolet Spark, rear; axle nut torque spec: Refer to OE service manual
• Fits 2006-2011 Chevrolet Aveo5, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2002-2010 Nissan Platina, rear; axle nut torque spec: Refer to OE service manual
• Fits 2007-2010 Pontiac G3, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2009 Pontiac G3 Wave, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2004-2009 Suzuki Swift+, rear; axle nut torque spec: N/R
• Fits 2005-2008 Pontiac Wave, rear; axle nut torque spec: 140 ft-lbs / 190Nm
• Fits 2005-2007 Pontiac Wave5, rear; axle nut torque spec: 140 ft-lbs / 190Nm

Confirm rear application details and follow the OE service manual for torque procedures where specified. The WH516012 is a direct-fit rear wheel bearing for the listed vehicles and should be installed with the correct service procedure for the platform.

Quality Assurance

MPA Electrical supplies this bearing as a new replacement component under its Quality-Built Hubs & Bearings line, with steel construction and application-specific fitment for the listed vehicles.
