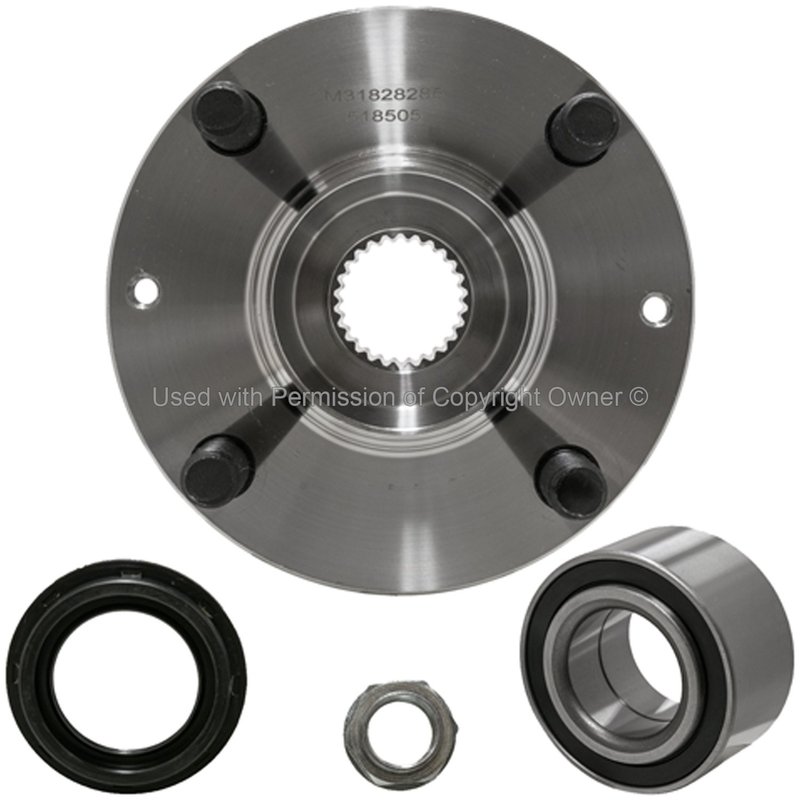

MPA Electrical WH518505 Wheel Hub Repair Kit - Front

Honda Accord Front Wheel Hub Repair Kit

MPA Electrical WH518505 is a new front wheel hub repair kit for select 1986-1989 Honda Accord models. Built with a steel hub assembly and integrated gasket or seal, it is specified for the front position and matches the listed OE-style application details for this vehicle range.

Key Features

• New wheel hub repair kit for front service
• Steel construction for durable driveline and axle repair
• Gasket or seal included
• 26-spline configuration
• Wheel stud size: M12 x 1.50
• Flange offset: 2.265 in.
• Flange diameter: 4.78 in.
• Hub pilot diameter: 1.575 in.
• Non-greaseable design
• No wiring harness included

Detailed Description

WH518505 from MPA Electrical is a front wheel hub repair kit engineered for 1986-1989 Honda Accord applications. The hub uses a steel body with a 26-spline layout, a 4.78-inch flange diameter, and a 1.575-inch hub pilot diameter to match the specified fitment. This part number, WH518505, is also referenced by 2HF18505 and 19235978 for the same application.

Fits 1986-1989 Honda Accord, front. For Honda Accord front wheel hub repair service, this part supports OE-style replacement needs where the hub, seal, and mounting dimensions must align with the original assembly.

Common Repair Uses

• Replacing a worn or damaged front wheel hub
• Addressing looseness or play at the wheel end
• Restoring proper wheel mounting and hub alignment
• Repairing seal-related contamination at the hub area
• Servicing a front driveline or axle-related hub failure

Installation Notes and Tips

Verify the vehicle year, make, model, and front position before installation. Confirm the axle nut torque specification listed for this application: 133 ft-lbs / 181 Nm. Check spline count, stud size, flange offset, and hub pilot diameter against the original part to ensure correct fitment on the Honda Accord.

Quality Assurance

MPA Electrical identifies this part as a new, quality-built hub and bearing assembly. The steel construction and included gasket or seal support a direct replacement approach for front hub service on the specified Honda Accord models.
