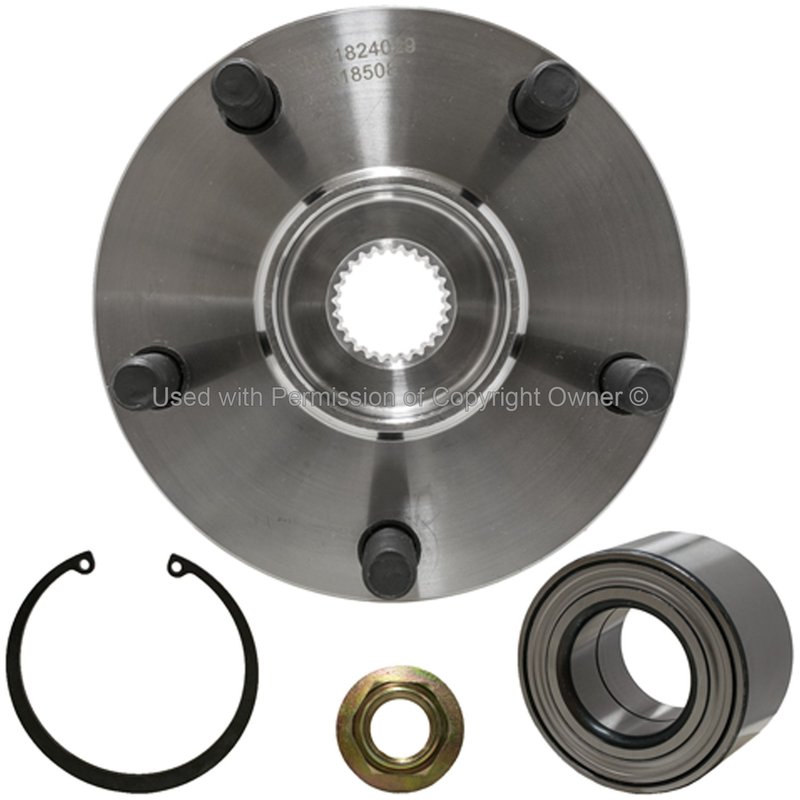

MPA Electrical WH518508 Wheel Hub Repair Kit - Front

Wheel Hub Repair Kit for Toyota and Lexus Front Applications

MPA Electrical WH518508 is a new front wheel hub repair kit built for select Toyota and Lexus applications. It is a steel hub and bearing service component with a gasket or seal included, 5 wheel studs, and a 26-spline design for the specified front fitments.

Key Features

• Brand: MPA Electrical
• Part number: WH518508
• Front wheel hub repair kit for select Toyota Camry, Toyota Solara, and Lexus RX300 models
• Steel construction for service replacement use
• Gasket or seal included
• 5-stud hub with M12 x 1.5 wheel stud size
• 26 spline quantity
• Hub pilot diameter: 1.694 in.
• Flange diameter: 5.47 in.
• Flange offset: 2.445 in.
• New condition

Detailed Description

WH518508 is a front wheel hub repair kit for 1992-2003 Toyota Camry, 1999-2003 Toyota Solara, and 1999-2003 Lexus RX300 front applications. Built with a steel hub body and a gasket or seal included, this assembly is specified for vehicles that require a 5-stud, 26-spline front hub with M12 x 1.5 wheel studs. The part number WH518508 is also cross-referenced to 2HF18508 and 19241276 for the same application.

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness
• Damaged wheel stud mounting points
• Seal-related contamination at the hub area
• Service replacement needs on Toyota Camry, Toyota Solara, and Lexus RX300 front hubs

Installation Notes and Tips

• Verify front position and match the vehicle year, make, and model before installation.
• Confirm axle nut torque specification during service: 217 ft-lbs / 294 Nm for the listed applications.
• Inspect related bearings, seals, and mounting surfaces before reassembly.
• Check spline count, hub pilot diameter, flange diameter, and stud size against the original part.
• Follow factory service procedures for hub removal and installation.

Quality Assurance

MPA Electrical supplies this WH518508 wheel hub repair kit as a new replacement part built to the listed dimensional and fitment specifications. Quality-Built Hubs & Bearings is the manufacturer description associated with this part.
