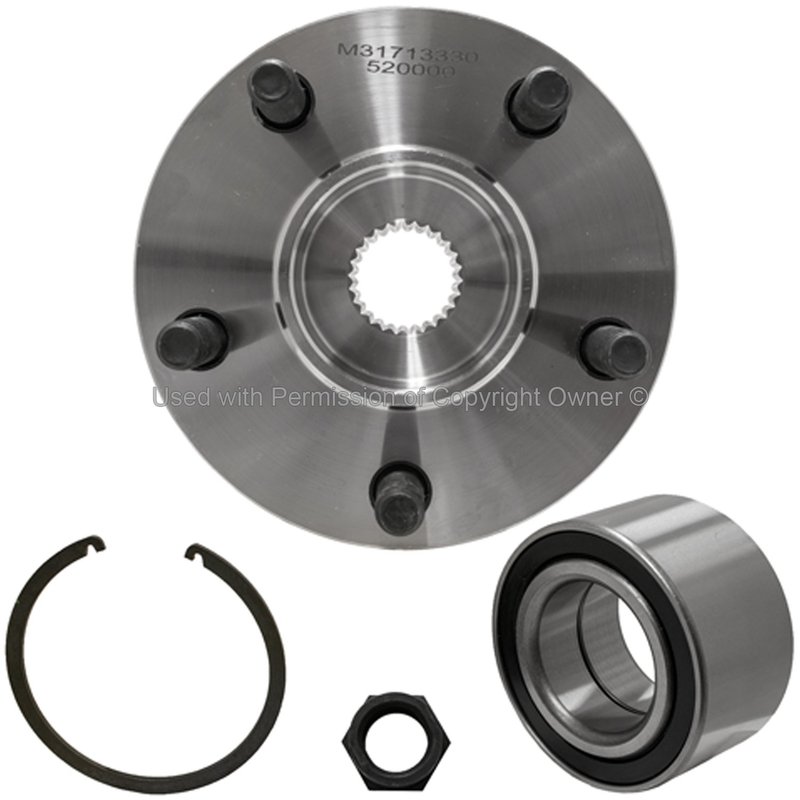

MPA Electrical WH520000 Wheel Hub Repair Kit - Front

Front Wheel Hub Repair Kit for Ford, Lincoln, and Mercury

MPA Electrical WH520000 is a new front wheel hub repair kit built with a steel hub assembly and integrated gasket or seal. It is listed for select Ford Taurus, Lincoln Continental, and Mercury Sable applications, including front-wheel service on 1986-1991 Ford Taurus and 1986-1991 Mercury Sable models.

Key Features

• New wheel hub repair kit for front driveline service
• Steel construction for durable hub support
• Gasket or seal included
• 5-stud hub pattern with M12 x 1.5 wheel studs
• 26-spline design
• Hub pilot diameter: 1.653 inch
• Flange diameter: 5.47 inch
• Greaseable: No
• Wiring harness not included

Detailed Description

WH520000 from MPA Electrical is a quality-built hub and bearing service part for front-wheel applications that require a direct replacement wheel hub repair kit. The steel hub body, 5-stud layout, and 26-spline configuration support proper fitment on listed Ford Taurus, Lincoln Continental, and Mercury Sable vehicles. This part cross-references 2HF20000 and 19235981 for the same application. MPA Electrical WH520000 is a practical choice when servicing a worn or noisy front hub on 1986-1991 Ford Taurus, 1986-1991 Mercury Sable, and select 1988-1991 Lincoln Continental models.

Common Problems This Part Can Address

• Front wheel bearing noise or rumble
• Excessive hub play or looseness
• Vibration from a worn front hub assembly
• Damaged or worn wheel stud interface
• Seal-related contamination at the hub area

Installation Notes and Tips

• Verify vehicle year, model, and front position before ordering.
• Follow the listed axle nut torque specification of 190 ft-lbs / 258 Nm for the applicable vehicles.
• Inspect the mating surfaces, spindle, and related suspension components during installation.
• Confirm spline count, hub pilot diameter, and stud size match the original part.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing service component. The WH520000 is supplied as a new part and is engineered to meet the dimensional and application requirements listed for the covered Ford, Lincoln, and Mercury front-wheel service applications.
