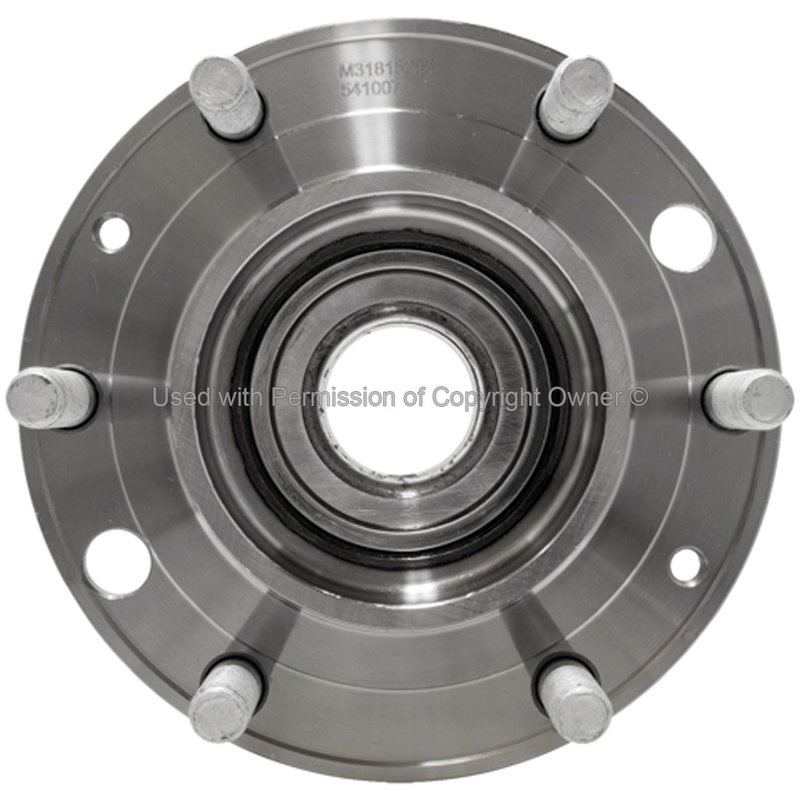

MPA Electrical WH541007 Wheel Bearing and Hub Assembly - Rear
| Brand | MPA Electrical WH541007 |
|---|---|
| Position | Rear |
| Flange Included | No |
| Anti Lock Braking System Type | Tone ring |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 2.088 |
| Flange Diameter | 6.35 |
| Flange Diameter Inch | 6.35 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.98 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 6 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
| Fits | Hyundai and Kia · 12 vehicles |
Steel construction. Built as a new wheel bearing and hub assembly for rear service.
ABS tone ring. Integrated sensor ring supports wheel speed signal operation.
Seal included. Adds hub protection in a direct replacement design.
Cross-references 52710-4D100 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Wheel Bearing and Hub Assembly Overview
MPA Electrical WH541007 is a new rear wheel bearing and hub assembly built for select Kia and Hyundai applications. It uses a steel construction with an integrated tone ring for ABS signal input and includes a seal for the hub assembly.
Key Features
- Steel wheel bearing and hub assembly for rear service
- ABS tone ring design for wheel speed signal operation
- Seal included for added hub protection
- Six-stud pattern with M12 x 1.5 wheel studs
- Cross-references Hyundai/Kia OE part 52710-4D100
Fitment Details
Fits 2014 Kia Sedona, rear. Fits 2012 Kia Sedona, rear. Fits 2006-2011 Kia Sedona, rear. Fits 2007-2010 Hyundai Entourage, rear.
Common Replacement Uses
- Wheel bearing noise or rough hub operation
- ABS warning concerns related to the hub tone ring
- Loose, worn, or damaged rear hub assembly
- Seal wear that can affect hub protection
Installation Notes
Confirm axle nut torque using the OE service manual for the specific application. Verify rear fitment, stud pattern, and ABS tone ring configuration before installation. This part is a direct replacement for the listed applications and should be matched to the vehicle by year, make, and model.
Quality Assurance
MPA Electrical identifies this as a Quality-Built Hubs & Bearings product line item. New construction and application-specific fitment support consistent replacement service for the listed Kia Sedona and Hyundai Entourage vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Kia | Sedona | 3.5L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Kia | Sedona | 3.5L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Kia | Sedona | 3.5L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
| 2010 | Hyundai | Entourage | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 260Nm |
| 2010 | Kia | Sedona | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
| 2009 | Hyundai | Entourage | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 260Nm |
| 2009 | Kia | Sedona | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
| 2008 | Hyundai | Entourage | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 260Nm |
| 2008 | Kia | Sedona | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
| 2007 | Hyundai | Entourage | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 260Nm |
| 2007 | Kia | Sedona | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
| 2006 | Kia | Sedona | 3.8L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: 188 ft-lbs / 255Nm |
