OE Quality
60-Day Returns

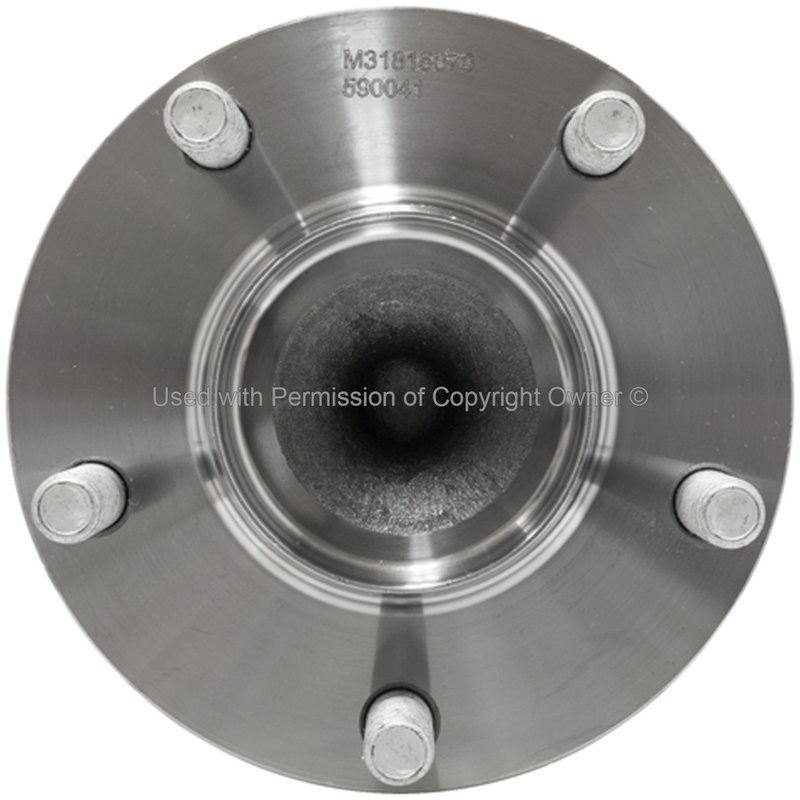

MPA Electrical WH590041 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Hub Assembly for Mazda CX-9
MPA Electrical WH590041 is a new rear wheel bearing and hub assembly built for 2007-2015 Mazda CX-9 applications. It is a steel hub assembly with an integrated flange, ABS sensor-type provision, and a gasket or seal included for a direct-fit replacement on the rear axle.
Key Features
- Fits 2007-2015 Mazda CX-9, rear
- Steel wheel bearing and hub assembly for driveline and axle service
- Flange included with 4 bolt holes and trapezoid shape
- 5-stud hub with M12 x 1.5 wheel studs
- Hub pilot diameter: 3.072 in.
- Flange diameter: 5.505 in. with 2.482 in. offset
- ABS sensor type: sensor; anti-lock brake sensor not included
- Gasket or seal included
- New condition
Product Details
WH590041 is engineered as a rear wheel hub assembly for the Mazda CX-9, combining the hub and bearing into one service part for rear axle replacement. The steel construction, flange design, and 5-lug wheel mounting pattern support a precise fit for 2007-2015 Mazda CX-9 rear applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Rear wheel bearing noise or growling from the hub area
- Wheel play or looseness at the rear axle
- ABS-related hub service where the sensor type is required
- Damaged or worn rear hub flange mounting surfaces
- Replacement after corrosion or bearing wear on a Mazda CX-9 rear hub
Installation Notes
Confirm rear fitment before ordering: Fits 2007-2015 Mazda CX-9, rear. Verify wheel stud size, flange dimensions, and hub pilot diameter against the original part. The anti-lock brake sensor is not included, and the wiring harness is not included. Follow factory service procedures and torque specifications for the axle and hub fasteners during installation.
Quality Assurance
MPA Electrical markets this part under its Quality-Built Hubs & Bearings line, with a focus on replacement hub assemblies for service applications. WH590041 is supplied new and built to match the listed rear Mazda CX-9 fitment.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH590041 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 2.482 |
| Flange Diameter | 5.505 |
| Flange Diameter Inch | 5.505 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.072 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2014 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2008 | Mazda | CX-9 | FWD | 3.7L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2007 | Mazda | CX-9 | FWD | 3.5L | V6 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
