OE Quality
60-Day Returns

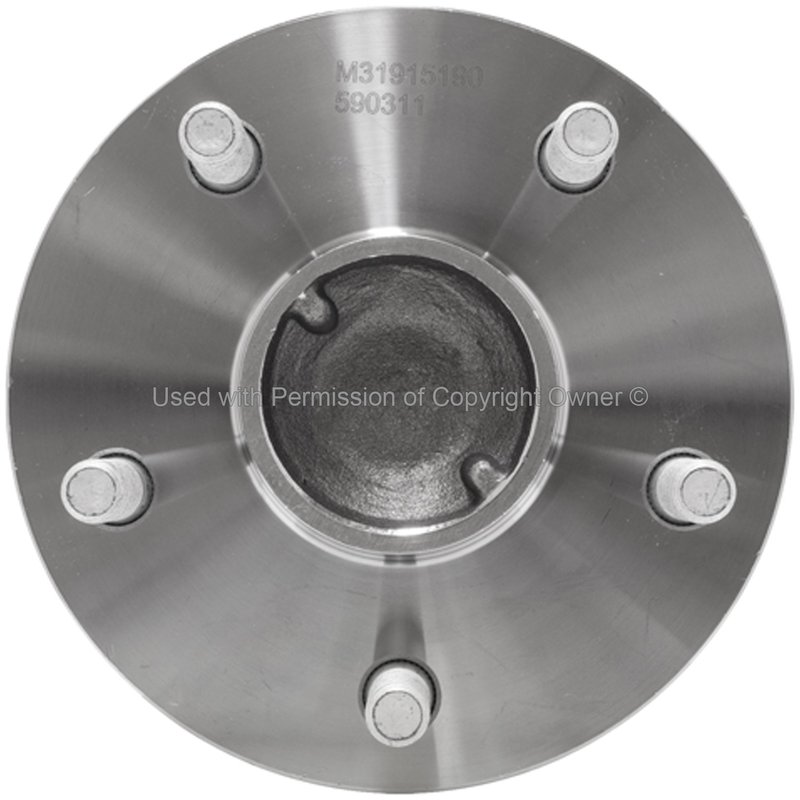

MPA Electrical WH590311 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Hub Assembly for Toyota Matrix and Pontiac Vibe
MPA Electrical WH590311 is a new rear wheel bearing and hub assembly built for select Toyota Matrix and Pontiac Vibe applications. It combines the hub, bearing, flange, and ABS sensor components needed for a direct rear-wheel service replacement.
Compatible with 2009-2013 Toyota Matrix rear and 2009-2010 Pontiac Vibe rear, this assembly is built with a steel flange design, 5 wheel studs, and an included anti-lock brake sensor.
Key Features
- New wheel bearing and hub assembly for rear service
- Flange included with a trapezoid shape
- ABS sensor type: sensor, with anti-lock brake sensor included
- Steel construction for durable hub support
- 5 wheel studs with M12 x 1.5 stud size
- Gasket or seal included
- Hub pilot diameter: 2.909 in.
- Flange diameter: 5.982 in. with 2.36 in. offset
Detailed Description
MPA Electrical WH590311 is engineered as a rear hub assembly for vehicles that use an integrated ABS sensor at the wheel end. It is a quality-built hub and bearing replacement that supports proper wheel mounting, bearing rotation, and wheel speed signal function on the rear axle. This part cross-references Toyota 42450-02160 and 19184269 for the same application.
Fits 2009-2013 Toyota Matrix, rear. Fits 2009-2010 Pontiac Vibe, rear. Search terms such as rear wheel hub assembly for Toyota Matrix, rear hub bearing replacement for Pontiac Vibe, and WH590311 rear wheel bearing hub assembly all point to this application.
What It Helps Address
- Rear wheel bearing noise or rough rotation
- Wheel play from a worn hub assembly
- ABS warning light caused by a failed wheel speed sensor at the hub
- Uneven wheel mounting caused by damaged hub flange or studs
- Seal-related contamination at the rear hub area
Installation Notes and Tips
Confirm rear position, flange dimensions, stud pattern, and ABS sensor style before installation. The wiring harness is not included, so reuse or source the vehicle-side harness as needed. Follow the vehicle service procedure and torque specifications for the hub and axle components during installation.
Quality Assurance
MPA Electrical supplies this part as a new, steel hub assembly built to match the listed fitment and OE-style configuration for the Toyota Matrix and Pontiac Vibe rear axle applications.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH590311 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 2.36 |
| Flange Diameter | 5.982 |
| Flange Diameter Inch | 5.982 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.909 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Toyota | Matrix | S | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Toyota | Matrix | S | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Toyota | Matrix | S | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Pontiac | Vibe | Base | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Toyota | Matrix | XR | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Toyota | Matrix | S | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Pontiac | Vibe | Base | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Toyota | Matrix | XR | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Toyota | Matrix | S | FWD | 2.4L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
