OE Quality
60-Day Returns

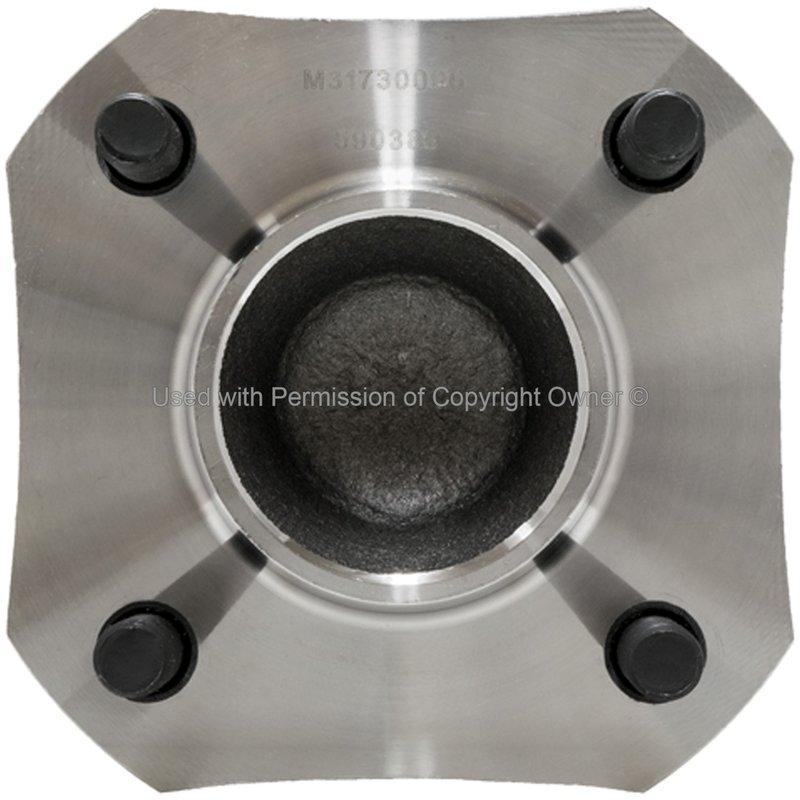

MPA Electrical WH590380 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Hub Assembly for Nissan Cube
MPA Electrical WH590380 is a new rear wheel bearing and hub assembly built for 2009-2014 Nissan Cube applications. It combines the hub, bearing, flange, and seal details needed for a direct-fit rear service replacement on the Nissan Cube.
Key Features
- Rear wheel bearing and hub assembly for 2009-2014 Nissan Cube
- Flange included with 4 bolt holes and 4 wheel studs
- Encoder-style ABS tone interface; ABS sensor not included
- Steel construction with gasket or seal included
- Hub pilot diameter: 2.715 in; flange diameter: 5.83 in
- Wheel stud size: M12 x 1.25
- Cross-reference part numbers: 43202-1J61A, 43202-EL000
Detailed Description
WH590380 is a Quality-Built hub and bearing assembly from MPA Electrical for the rear position on the Nissan Cube. It is engineered with an integrated flange, trapezoid flange shape, and encoder-type ABS interface, making it a practical replacement when servicing rear wheel bearing wear or hub-related noise on 2009-2014 Nissan Cube models. The steel hub body and included seal support a complete rear hub service, while the 4-stud, M12 x 1.25 layout matches the listed application.
This part number, WH590380, cross-references OE-style numbers 43202-1J61A and 43202-EL000 for the same application.
What It Helps Fix
- Rear wheel bearing noise or rumbling from the hub area
- Excessive wheel play caused by hub bearing wear
- ABS warning concerns related to the encoder-style hub interface
- Damaged or worn rear hub flange surfaces
- Loose or compromised wheel mounting at the rear axle
Installation Notes and Tips
Fits 2009-2014 Nissan Cube, rear. Confirm axle nut torque specifications before installation, as the listing notes axle nut torque spec N/R. Verify the ABS system uses an encoder-style hub interface and compare the hub dimensions, stud size, and flange measurements to the removed part before installation. WH590380 is a direct rear service part for the Nissan Cube, and proper cleaning of the mounting surface helps ensure accurate seating.
Quality Assurance
MPA Electrical markets this part as a Quality-Built hub and bearing assembly. New construction, steel materials, and included seal details support consistent replacement quality for rear hub service on the Nissan Cube.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH590380 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Encoder |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 2.718 |
| Flange Diameter | 5.83 |
| Flange Diameter Inch | 5.83 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.715 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 4 |
| Wheel Stud Size MM | M12 x 1.25 |
| Wiring Harness Included | No |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2013 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2011 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2010 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2009 | Nissan | Cube | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
