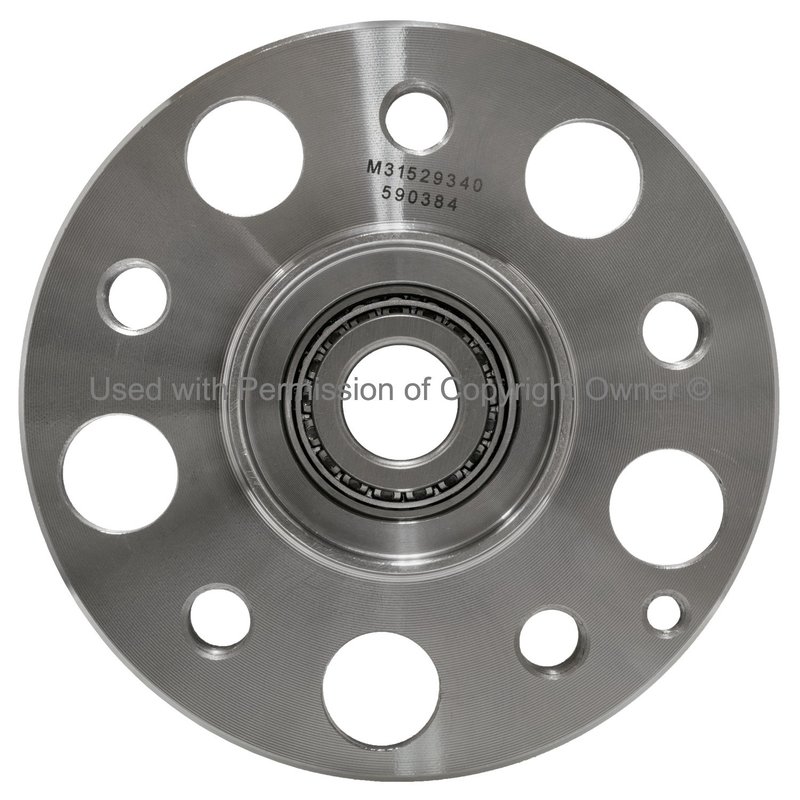

MPA Electrical WH590384 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Mercedes-Benz

MPA Electrical WH590384 is a front wheel bearing and hub assembly built for select Mercedes-Benz applications. It combines a steel hub body with an integrated encoder-style ABS tone feature, a sealed design, and a 5-stud M14 x 1.5 wheel mounting pattern for direct replacement service.

Compatible with front-wheel service on Mercedes-Benz E350, E550, E250, E400, E63 AMG, and CLS63 AMG applications listed below, this hub assembly is built for OE-style fitment and sensor-system compatibility where an encoder-type ABS setup is used. Part number WH590384 is also referenced for the same application as OE number 212 330 00 25.

Key Features

• Front wheel bearing and hub assembly
• Steel construction for strength and durability
• Encoder-type ABS interface
• Sealed design with gasket or seal included
• 5 wheel studs with M14 x 1.5 thread size
• Hub pilot diameter: 3.08 in
• Flange diameter: 5.909 in
• Flange offset: 3.057 in
• New condition

Detailed Description

MPA Electrical WH590384 is a quality-built front wheel hub assembly engineered for Mercedes-Benz driveline and axle service. The unit is designed around a steel hub body and includes an encoder-style ABS feature for vehicles that rely on wheel-speed signal integration at the hub. With a 5-stud layout and M14 x 1.5 wheel studs, it supports direct replacement on the specified front applications without requiring a separate ABS sensor or wiring harness.

This part number, WH590384, cross-references OE number 212 330 00 25 for the same application. It is listed for 2010-2017 Mercedes-Benz E-Class and AMG variants, including E350, E550, E250, E400, E63 AMG, and CLS63 AMG front hub service.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning concerns related to hub-mounted encoder signal issues
• Uneven wheel mounting or damaged hub flange surfaces
• Front-end vibration traced to hub and bearing wear

Installation Notes and Tips

• Install on the front position only for the listed Mercedes-Benz applications.
• Refer to the OE service manual for axle nut torque specifications where noted.
• Confirm encoder-style ABS system requirements before installation.
• Inspect mating surfaces, axle hardware, and knuckle condition during service.
• Verify wheel stud thread size and hub pilot fit before final assembly.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing assembly. It is new and built with a sealed design and integrated encoder-style ABS feature for the listed Mercedes-Benz front applications.
