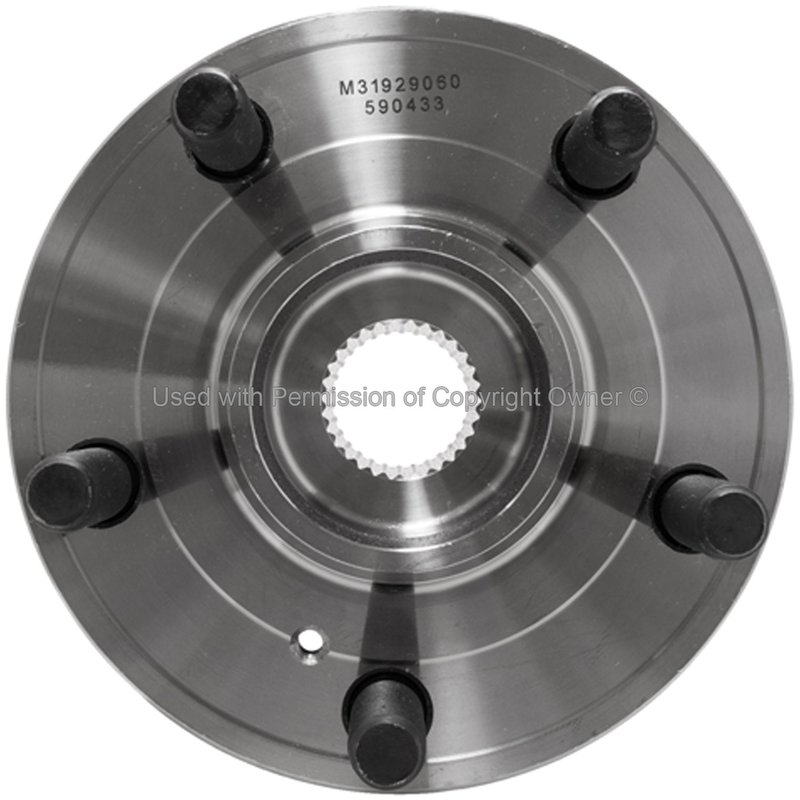

MPA Electrical WH590433 Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly for Honda Odyssey

MPA Electrical WH590433 is a new wheel bearing and hub assembly built for front applications on the Honda Odyssey. It combines the hub, flange, and seal details needed for a direct replacement style repair on the front end.

Key Features

• Steel construction for a durable hub assembly design.
• Encoder-style ABS configuration for vehicles using a tone-ring style signal source.
• Includes a flange with 5-lug, M14 x 1.5 wheel stud sizing.
• 30-spline hub design with a 3.493-inch hub pilot diameter.
• Gasket or seal included for a more complete service replacement.

Detailed Description

This MPA Electrical wheel bearing and hub assembly, part number WH590433, is engineered for Fits 2012-2017 Honda Odyssey, front and Fits 2011 Honda Odyssey, front. It is a steel hub assembly with a rectangular flange, 4 flange bolt holes, and encoder-type ABS provisions, while the ABS sensor itself is not included. The flange offset measures 1.858 inches and the flange diameter is 5.975 inches, supporting a precise replacement for the original front hub setup. This part cross-references Honda 44300-TK8-A01 for the same application.

MPA Electrical markets its hubs and bearings as quality-built components, and this part number WH590433 follows that product focus with new-condition construction and service-specific fitment for the Odyssey platform.

What It Is Used For

• Wheel bearing noise from a worn front hub assembly.
• Excessive play or looseness at the wheel end.
• ABS warning concerns related to hub encoder function.
• Damaged wheel studs or flange wear on the hub assembly.
• Seal-related contamination at the hub and bearing unit.

Installation Notes and Tips

Fits 2012-2017 Honda Odyssey, front, and Fits 2011 Honda Odyssey, front. Verify axle nut torque against the OE service manual; the 2011 Odyssey front application lists 242 ft-lbs / 328 Nm. Confirm spline count, stud size, and ABS encoder requirements before installation. Part number WH590433 should be matched to the vehicle’s front hub specification before service begins.

Quality Assurance

MPA Electrical identifies this line as quality-built hubs and bearings. WH590433 is a new wheel bearing and hub assembly intended for direct replacement service on the specified Honda Odyssey applications.
