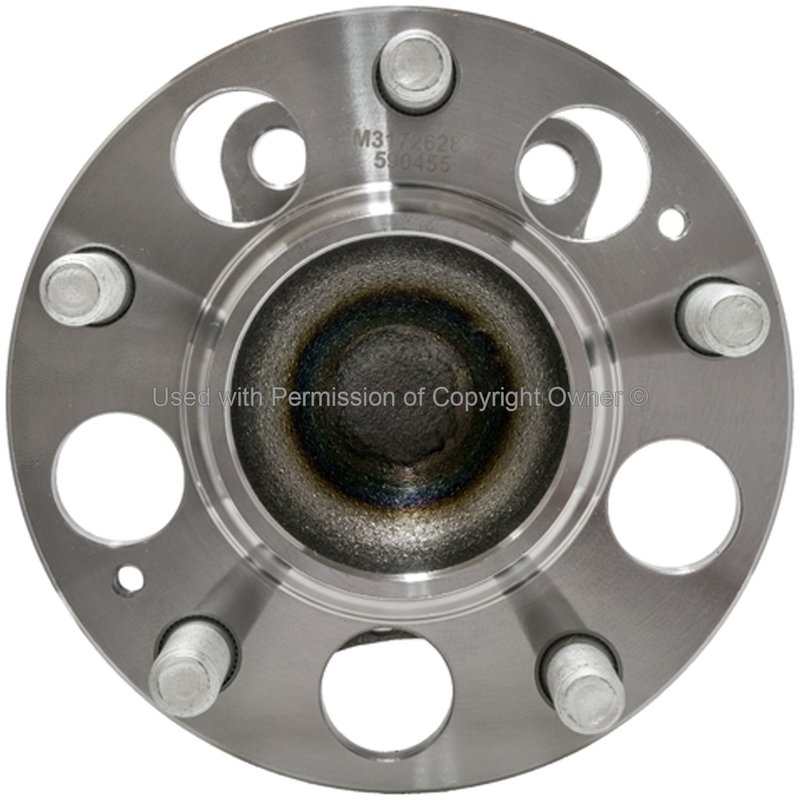

MPA Electrical WH590455 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Hyundai and Kia

MPA Electrical WH590455 is a new rear wheel bearing and hub assembly built for select Hyundai and Kia applications. It combines a steel hub with an integrated flange, tone ring ABS provision, and a sealed design for direct replacement service on the rear axle.

• Fits 2014-2019 Kia Forte, rear
• Fits 2014-2018 Kia Forte5, rear
• Fits 2013-2017 Hyundai Elantra GT, rear
• Fits 2012-2017 Hyundai Veloster, rear
• Fits 2011-2016 Hyundai Elantra, rear
• Fits 2014-2016 Kia Forte Koup, rear
• Fits 2013-2014 Hyundai Elantra Coupe, rear

Key Features

• Part number WH590455
• Rear wheel bearing and hub assembly
• Steel construction
• Flange included with 4 bolt holes
• Trapezoid flange shape
• Tone ring ABS type
• Gasket or seal included
• 5 wheel studs with M12 x 1.5 stud size
• Hub pilot diameter: 2.87 in.
• Flange diameter: 5.434 in.
• Flange offset: 2.323 in.
• Anti-lock brake sensor not included
• Wiring harness not included

Product Details

WH590455 is a quality-built hub and bearing assembly for rear service on Hyundai Elantra, Hyundai Veloster, Kia Forte, and related models listed above. The integrated flange and tone ring support proper wheel mounting and ABS tone signal function, while the sealed construction and included gasket or seal help simplify replacement of a worn rear hub. This part cross-references Hyundai/Kia OE number 52710-3X000 for the same application.

Common Repair Symptoms

• Rear wheel bearing noise or growling
• Wheel play or looseness at the hub
• ABS warning light related to rear tone ring signal
• Uneven rear wheel rotation or vibration
• Hub flange wear or damaged wheel stud mounting surface

Installation Notes

Confirm rear fitment by year, make, and model before installation. The anti-lock brake sensor is not included, and the wiring harness is not included, so reuse or source those components as needed for the vehicle. Follow the vehicle service procedure for hub removal, axle nut handling, and torque specifications where applicable.

Quality Assurance

MPA Electrical supplies quality-built hubs and bearings for replacement service. WH590455 is a new part manufactured to meet the dimensional and application requirements listed for the confirmed Hyundai and Kia rear applications.
