OE Quality
60-Day Returns

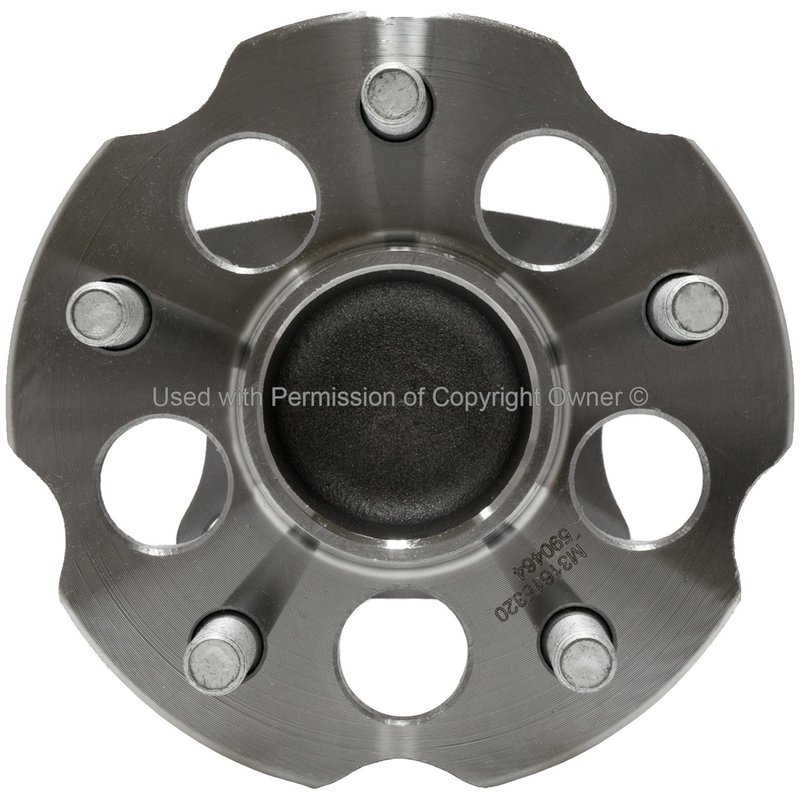

MPA Electrical WH590464 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Hub Assembly for Toyota Prius V and Mirai
MPA Electrical WH590464 is a rear wheel bearing and hub assembly built for specific Toyota applications. It combines the hub, flange, and ABS sensor components needed for a direct-fit rear service replacement on the Toyota Prius V and Toyota Mirai.
Key Features
- Rear wheel bearing and hub assembly with flange included
- 5 wheel studs with M12 x 1.5 stud size
- ABS sensor type with anti-lock brake sensor included
- Steel construction for service replacement use
- Gasket or seal included
- Hub pilot diameter: 2.909 in.
- Flange diameter: 5.981 in. with 4 flange bolt holes
- New condition, quality-built hub and bearing design
Detailed Description
MPA Electrical WH590464 is a rear wheel hub assembly engineered for 2012-2016 Toyota Prius V and 2016 Toyota Mirai applications. This assembly includes the flange, ABS sensor, and seal components specified in the product data, helping restore proper wheel support and wheel-speed signal function at the rear axle. The steel hub design and 5-stud layout support OE-style replacement needs for Toyota Prius V rear hub service and Toyota Mirai rear hub replacement work. This part cross-references 42450-47050 for the same application.
Common Problems This Part Can Address
- Rear wheel bearing noise or rough rotation
- ABS warning light caused by a failed hub sensor assembly
- Wheel looseness from worn hub components
- Uneven rear wheel support from damaged bearing surfaces
- Corrosion or wear at the rear hub mounting area
Installation Notes and Tips
Fits 2016 Toyota Mirai, rear. Fits 2012-2016 Toyota Prius V, rear. Verify axle nut torque using the OE service manual during installation. Confirm ABS connector routing and sensor seating before final assembly. Always match the replacement hub to the vehicle’s rear position and check stud pattern, flange dimensions, and sensor style before installation.
Quality Assurance
MPA Electrical markets this part as a quality-built hub and bearing assembly. WH590464 is supplied new and built to meet the needs of direct replacement service on the listed Toyota rear applications.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH590464 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 2.519 |
| Flange Diameter | 5.981 |
| Flange Diameter Inch | 5.981 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 2.909 |
| Material | Steel |
| Product Condition | New |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Toyota | Mirai | -L | -- | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | Toyota | Prius V | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Toyota | Prius V | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Toyota | Prius V | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Toyota | Prius V | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Toyota | Prius V | 1.8L | L4 | Rear | Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
