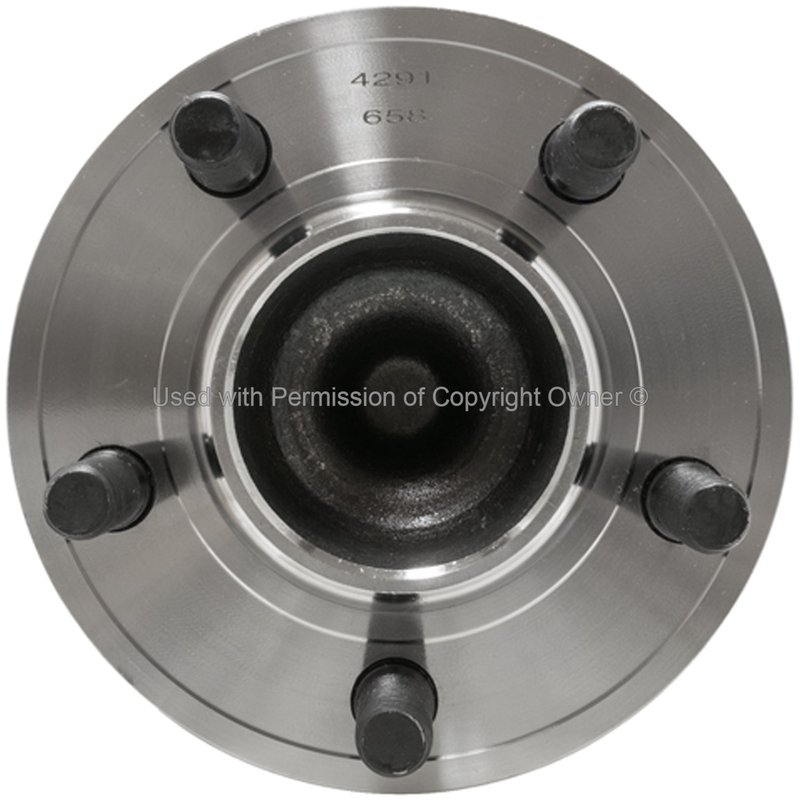

MPA Electrical WH590465 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Chrysler and Dodge

The MPA Electrical WH590465 wheel bearing and hub assembly is designed to provide dependable driveline performance for Chrysler 300, Dodge Challenger, and Dodge Charger models. Engineered with precision, this new steel hub assembly includes a flange and gasket to ensure a secure fit and long-lasting operation.

Key Features of MPA Electrical WH590465

• Includes a triangle-shaped flange with 3 bolt holes for secure mounting
• Flange diameter measures 5.945 inches with a 2.172-inch flange offset
• Equipped with a 5-stud configuration using M14 x 1.5 wheel stud size
• Anti-lock braking system (ABS) encoder type for accurate wheel speed sensing
• Gasket or seal included to maintain proper sealing and prevent contamination
• Constructed from durable steel material for strength and longevity
• Hub pilot diameter of 3.799 inches for precise alignment

Detailed Product Description

The WH590465 wheel bearing and hub assembly from MPA Electrical is a new, high-quality replacement part designed specifically for select Chrysler and Dodge vehicles, including the Chrysler 300, Dodge Challenger, and Dodge Charger. This assembly features a triangle-shaped flange with three bolt holes, each with a diameter of 4.916 mm, ensuring a secure and stable connection to the vehicle’s driveline. The flange diameter of 5.945 inches and offset of 2.172 inches are engineered to match OEM specifications for proper fitment.

With a 5-stud wheel configuration and M14 x 1.5 stud size, this hub assembly supports standard wheel mounting requirements. The included gasket or seal helps maintain the integrity of the assembly by preventing dirt and moisture intrusion. The ABS encoder type integrated into the assembly supports the vehicle’s anti-lock braking system, although the ABS sensor itself is not included. Made from steel, this part offers durability and resistance to wear under normal driving conditions.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chrysler 300, Dodge Challenger, and Dodge Charger
• Addresses wheel noise or vibration issues caused by faulty bearings
• Restores proper wheel alignment and stability
• Supports ABS functionality by providing accurate encoder signals
• Prevents grease leakage and contamination with included gasket

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and stud configuration match the vehicle’s specifications. Clean the mounting surface thoroughly to ensure proper gasket sealing. Since this assembly is not greaseable, avoid introducing contaminants during installation. Confirm ABS encoder compatibility and wiring connections as needed, noting that the ABS sensor is not included with this part.

Quality Assurance and Warranty

MPA Electrical provides this WH590465 wheel bearing and hub assembly as a new, OEM-quality replacement part manufactured from steel for durability and performance. While specific warranty details are not provided, MPA Electrical products typically meet industry standards for fit and function, ensuring reliable operation when installed according to manufacturer guidelines.
