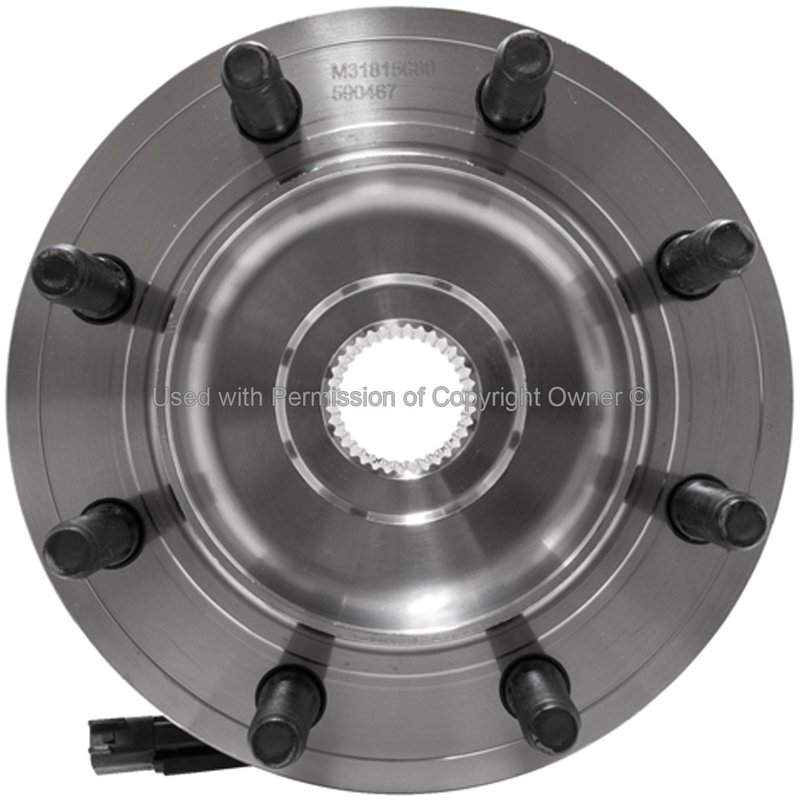

MPA Electrical WH590467 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Ram 2500 and 3500

The MPA Electrical WH590467 wheel bearing and hub assembly is engineered to meet the specific needs of Ram 2500 and 3500 models. Designed with precision, this new steel hub assembly includes an integrated ABS sensor and flange, ensuring compatibility and performance for your heavy-duty truck.

Key Features of MPA Electrical WH590467

• 35 spline quantity for secure axle engagement
• Includes a square flange with 4 bolt holes, each 6.5 mm in diameter
• Flange diameter measures 8.071 inches with a 2.215-inch flange offset
• Equipped with an Anti-Lock Braking System (ABS) sensor and wiring harness not included
• Contains a gasket or seal for proper fit and protection
• Steel construction for durability and strength
• 8 wheel studs sized M14 x 1.5 for reliable wheel mounting
• Hub pilot diameter of 5.51 inches for precise alignment

Detailed Product Description

This wheel bearing and hub assembly from MPA Electrical, part number WH590467, is designed specifically for Ram 2500 and 3500 trucks. The assembly features a 35-spline design that ensures a secure fit on the axle shaft. The included square flange with four bolt holes provides a stable mounting surface, while the flange offset and diameter are engineered to match factory specifications. The integrated ABS sensor supports your vehicle’s anti-lock braking system, enhancing safety and control. Made from steel, this hub assembly offers the strength required for heavy-duty applications. Additionally, the included gasket or seal helps prevent contamination and maintains proper lubrication within the hub.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Ram 2500 and 3500
• Resolves issues related to wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function to maintain braking system performance
• Addresses wheel hub looseness or play affecting vehicle handling
• Prevents contamination and premature failure with included gasket or seal

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes align correctly with the vehicle hub mounting points. Since this assembly is not greaseable, avoid introducing contaminants during installation. Confirm the ABS sensor connection is properly seated and free of damage. Use the correct torque specifications for flange bolts and wheel studs to maintain safety and performance.

Quality Assurance and Warranty

The MPA Electrical WH590467 wheel bearing and hub assembly is a new, high-quality replacement part manufactured to meet OEM standards. Constructed from durable steel and including an ABS sensor and gasket, it is designed for reliable operation in demanding conditions. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
