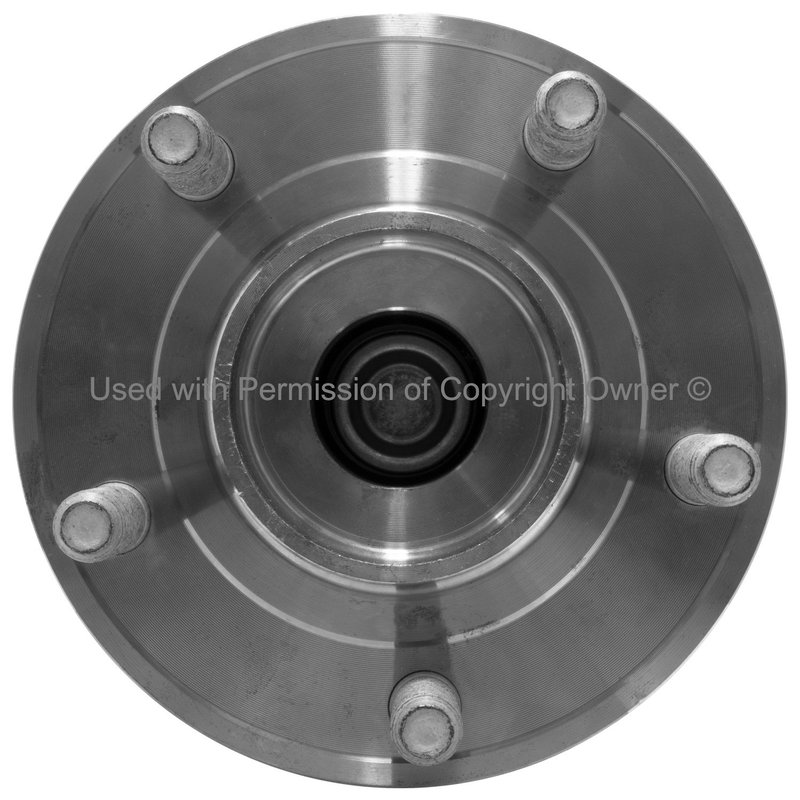

MPA Electrical WH590480 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Ford Fusion and Lincoln MKZ

MPA Electrical WH590480 is a rear wheel bearing and hub assembly built for select Ford and Lincoln applications. It is a steel hub assembly with an integrated flange, gasket or seal included, and a 5-stud pattern with M12 x 1.5 wheel studs for direct replacement service.

Compatible with 2013-2020 Ford Fusion rear, 2019-2020 Ford SSV Plug-In Hybrid rear, and 2013-2016 Lincoln MKZ rear. This WH590480 hub assembly is a practical OE-style service part for restoring rear wheel support and mounting integrity.

• Steel wheel bearing and hub assembly
• Flange included with rectangle flange shape
• 5-stud hub with M12 x 1.5 wheel studs
• Hub pilot diameter: 3.149 in. / 3.15 in.
• Flange diameter: 5.345 in.
• Flange offset: 1.89 in.
• Gasket or seal included
• No ABS sensor included
• No wiring harness included
• New condition

Detailed Product Overview

MPA Electrical WH590480 is engineered as a rear hub assembly for Ford Fusion, Ford SSV Plug-In Hybrid, and Lincoln MKZ applications. The assembly uses a steel construction with a built-in flange and seal, and it is specified without an anti-lock brake sensor or wiring harness. For service matching, the part cross-references DG9Z 1104-F and DG9Z1104C for the same application.

Use WH590480 when servicing rear wheel hub and bearing wear on 2013-2020 Ford Fusion, 2019-2020 Ford SSV Plug-In Hybrid, or 2013-2016 Lincoln MKZ models. The flange bolt hole quantity is 4, and the hub is built around a 3.149-inch pilot diameter for proper wheel mounting alignment.

Common Issues This Part Addresses

• Rear wheel bearing noise or rough rotation
• Excessive play at the rear hub mounting point
• Wheel mounting wear at the hub flange
• Seal-related contamination at the hub assembly
• Service replacement for worn rear hub components on Ford Fusion and Lincoln MKZ

Installation Notes and Tips

Fits 2013-2020 Ford Fusion, rear; 2019-2020 Ford SSV Plug-In Hybrid, rear; and 2013-2016 Lincoln MKZ, rear. Verify axle nut torque using the OE service manual before final assembly. Confirm wheel stud size, flange dimensions, and sensor requirements against the original part before installation.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing assembly. WH590480 is a new replacement component intended for direct-fit rear hub service on the listed Ford and Lincoln applications.
