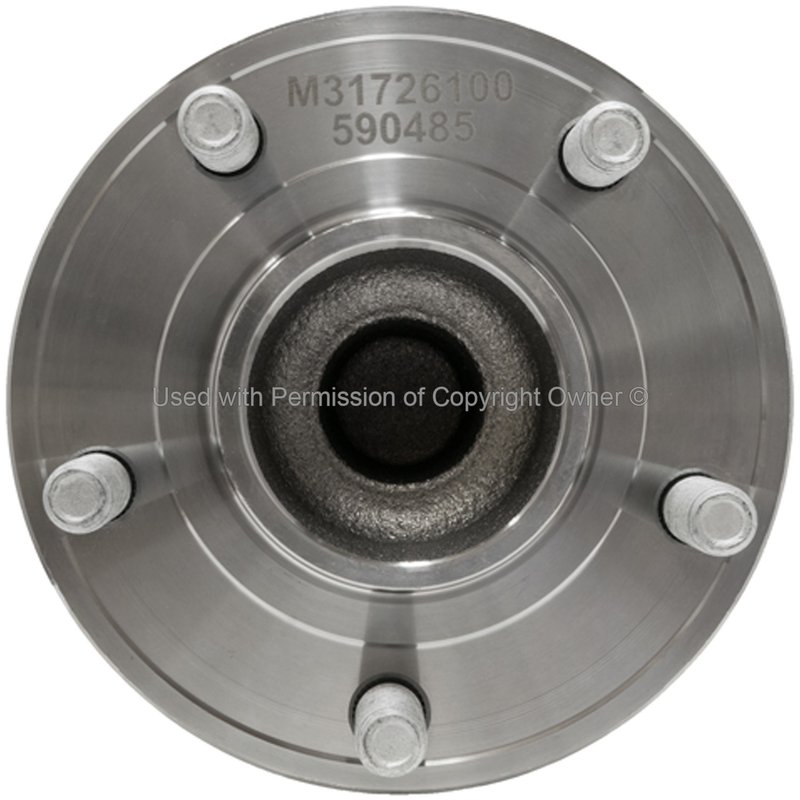

MPA Electrical WH590485 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Ford Escape and MKC

MPA Electrical WH590485 is a new rear wheel bearing and hub assembly built for select Ford and Lincoln applications with automatic or automated parking systems. It combines the hub, bearing, flange, and ABS sensor components needed for a direct rear axle service replacement.

Key Features

• Rear wheel bearing and hub assembly for driveline and axle service
• Includes flange, gasket or seal, and ABS sensor
• Sensor-type anti-lock braking system design with anti-lock brake sensor included
• Steel construction for durable service
• 5 wheel studs with M12 x 1.5 wheel stud size
• Flange shape: trapezoid; flange bolt hole quantity: 4
• Hub pilot diameter: 3.204 in; flange diameter: 5.372 in; flange offset: 2.88 in

Detailed Description

WH590485 is a Quality-Built Hubs & Bearings rear hub assembly engineered for vehicles that use a sensor-based ABS setup. It is a direct-fit replacement for rear service on 2013-2019 Ford Escape, 2015-2019 Lincoln MKC, and select 2013-2018 Ford C-Max models with auto parking or automated parking system equipment. This part cross-references Ford CV6Z1104G for the same application.

What This Part Helps Address

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness from worn hub bearings
• Uneven rear wheel support at the hub mounting point
• Parking system-related rear hub service on equipped vehicles

Installation Notes and Tips

• Fits 2013-2019 Ford Escape, rear, w/ Auto Parking
• Fits 2015-2019 Lincoln MKC, rear, w/ Auto Parking
• Fits 2013-2014 Ford C-Max, rear
• Fits 2015 Ford C-Max, rear, w/ Automated Parking System
• Fits 2016 Ford C-Max, rear
• Fits 2017 Ford C-Max, rear, Automated Parking System
• Fits 2018 Ford C-Max, rear
• Use the OE service manual for axle nut torque specification
• Verify ABS connector routing and rear hub mounting surfaces before installation

Quality Assurance

MPA Electrical supplies this new hub assembly as a quality-built replacement component for rear wheel service. The design includes the ABS sensor and sealing components needed for a complete hub-and-bearing replacement on the listed Ford Escape, Lincoln MKC, and Ford C-Max applications.
