Home› Driveline and Axles > Hubs and Related Components› MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front
MPA Electrical WH590493 Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns

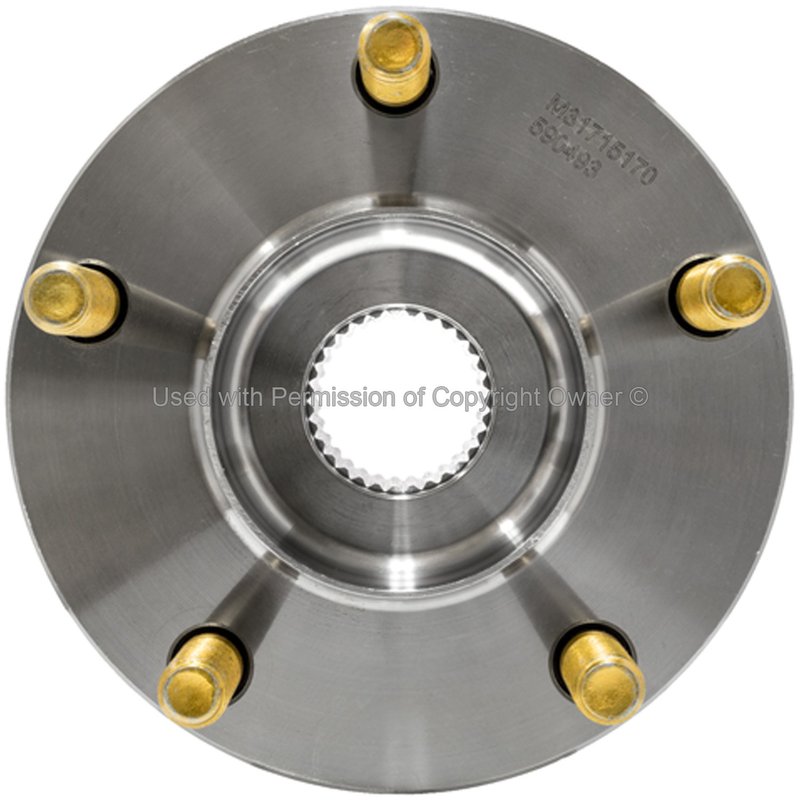

MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front - view 1
MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front - view 2
MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front - view 3
MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front - view 4
Part #: WH590493

MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front

Front
⚙️ 28 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$143.41Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Mazda, 6 and CX-5
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
MPA Electrical WH590493 Wheel Bearing and Hub Assembly - Front
BrandMPA Electrical
Part NumberWH590493
Spline Quantity31
Flange IncludedYes
Flange Bolt Hole Quantity4
Flange ShapeModified rectangle
Anti Lock Braking System TypeEncoder
Anti Lock Brake Sensor IncludedNo
Flange Offset1.686
Flange Diameter5.461
Flange Diameter Inch5.461
Gasket or Seal IncludedYes
GreaseableNo
Hub Pilot Diameter Inch3.578
MaterialSteel
Product ConditionNew
Spline Quantity31
Stud Quantity5
Wheel Stud Size MMM12 x 1.5
Wiring Harness IncludedNo

This part fits 28 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2025MazdaCX-52.5LL4Front
2024MazdaCX-52.5LL4Front
2023MazdaCX-52.5LL4Front
2022MazdaCX-52.5LL4Front
2021Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2021MazdaCX-52.5LL4Front
2020Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2020MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2019Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2019MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2019MazdaCX-52.2LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2019MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2018Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2018MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2018MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2017Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2017MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2017MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2016Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2016MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2016MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2015MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014Mazda62.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014MazdaCX-52.5LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2014MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual
2013MazdaCX-52.0LL4FrontWheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

KD35-33-04XCKD35-33-04XDKD35-33-04XEKD35-33-04XF

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
