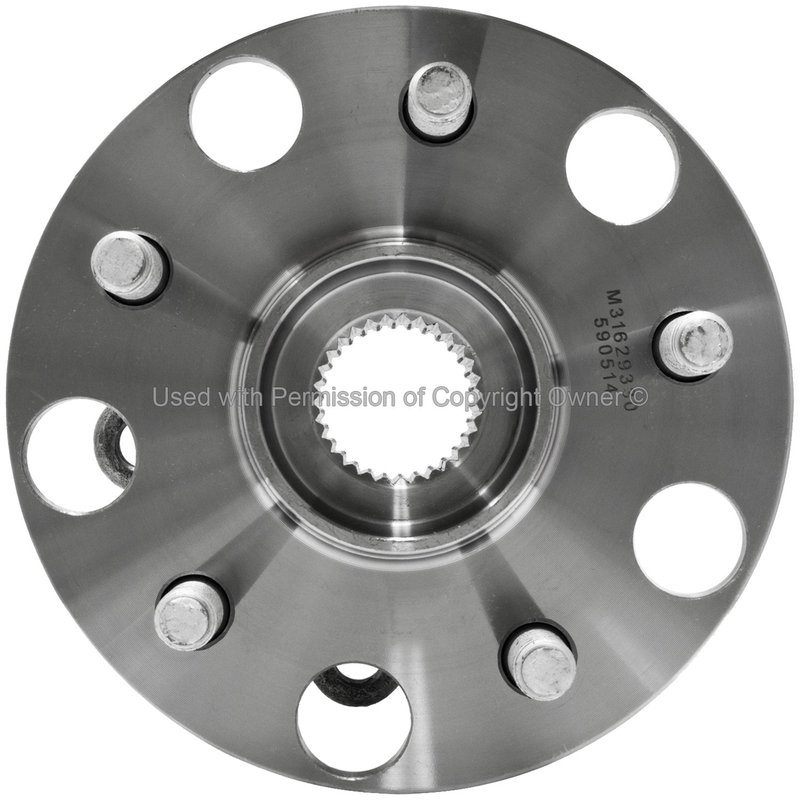

MPA Electrical WH590514 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Lexus

MPA Electrical WH590514 is a new rear wheel bearing and hub assembly built for select Lexus rear applications. It combines a 30-spline hub, integrated flange, and encoder-style ABS tone function for direct replacement service on supported Lexus GS, IS, and RC models.

Use WH590514 when replacing a worn rear hub on Lexus GS350, IS350, RC350, and related rear-drive applications. This part cross-references 42410-30040 and 42410-30041 for the same application.

Key Features

• Brand: MPA Electrical
• Part number: WH590514
• Rear wheel bearing and hub assembly
• 30 spline hub design
• 5 wheel studs with M12 x 1.5 thread size
• Steel construction
• Flange included with 4 bolt holes
• Encoder-style ABS function
• Gasket or seal included
• New condition

Detailed Description

WH590514 is a rear hub assembly for Lexus driveline and axle service, engineered with a modified-rectangle flange, 6.072-inch flange diameter, 2.655-inch flange offset, and 3.308-inch hub pilot diameter. The assembly is built from steel and includes the flange and seal, while the ABS sensor and wiring harness are not included. For Lexus GS350 rear hub replacement, Lexus IS350 rear wheel bearing service, or Lexus RC350 rear hub repair, this part provides the core hub-and-bearing components needed for a proper OE-style repair.

Fitment includes 2013-2020 Lexus GS350 rear, 2014-2019 Lexus IS350 rear, 2015-2020 Lexus RC350 rear, 2016-2020 Lexus IS300 rear, 2016-2020 Lexus RC300 rear, 2021-2023 Lexus RC300 rear, 2021-2023 Lexus RC350 rear, and additional rear applications listed below.

What It Helps Fix

• Rear wheel bearing noise or growling
• Excessive wheel play at the hub
• ABS encoder-related wheel speed signal issues
• Hub flange wear or mounting damage
• Rear-end vibration traced to hub assembly wear

Fitment

• Fits 2021-2023 Lexus RC300, rear
• Fits 2021-2023 Lexus RC350, rear
• Fits 2013-2020 Lexus GS350, rear
• Fits 2016-2020 Lexus IS300, rear
• Fits 2020 Lexus IS350, rear
• Fits 2016-2020 Lexus RC300, rear
• Fits 2015-2020 Lexus RC350, rear
• Fits 2018-2019 Lexus GS300, rear
• Fits 2014-2019 Lexus IS350, rear
• Fits 2013-2018 Lexus GS450h, rear
• Fits 2017 Lexus GS200t, rear
• Fits 2017 Lexus RC200t, rear
• Fits 2016 Lexus GS200t, rear
• Fits 2016 Lexus IS200t, rear
• Fits 2016 Lexus RC200t, rear
• Fits 2014-2015 Lexus IS250, rear

Installation Notes

Confirm rear application, spline count, flange dimensions, and ABS encoder style before installation. Follow the OE service manual for axle nut torque specification, and inspect the mating surfaces, seal area, and hub mounting points during service. Because the ABS sensor is not included, reuse or replace the sensor as needed based on the vehicle condition.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing assembly. WH590514 is supplied new and built to match the listed Lexus rear applications with the specified hub, flange, and encoder features.
