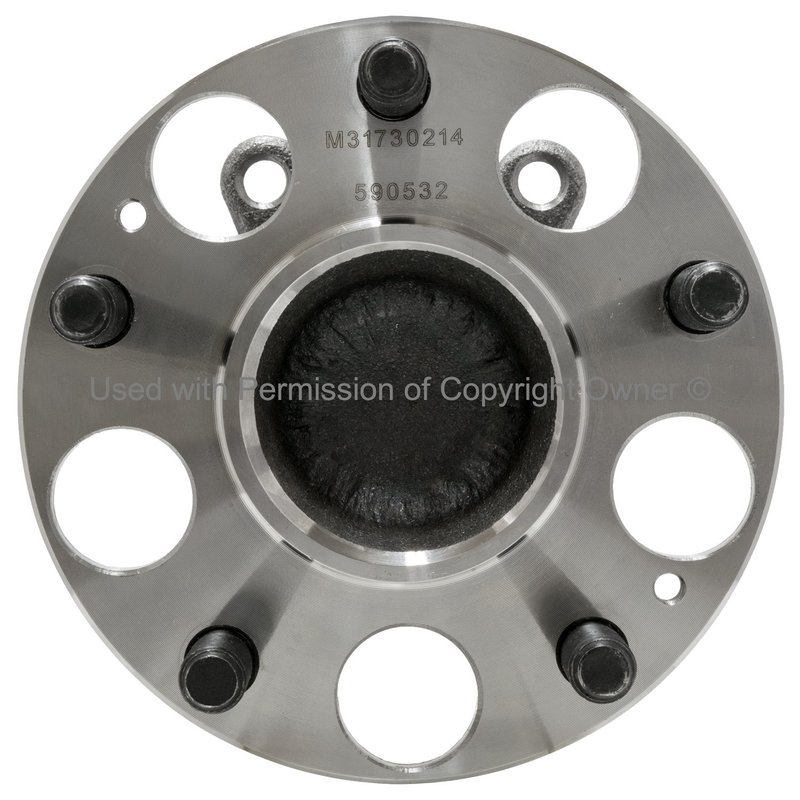

MPA Electrical WH590532 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Acura and Honda

MPA Electrical WH590532 is a new rear wheel bearing and hub assembly built for select Acura ILX and Honda Civic applications. It combines the hub, bearing, flange, and seal into one service part for rear-wheel repair on listed vehicles.

• Fits 2020-2022 Acura ILX, rear
• Fits 2013-2019 Acura ILX, rear; wheel hub assembly; axle nut torque spec: N/R
• Fits 2013-2015 Honda Civic, rear; USA built; wheel hub assembly; axle nut torque spec: N/R
• Steel construction with a trapezoid flange
• 5 wheel studs with M12 x 1.5 stud size
• Flange included with 4 bolt holes, 5.483-inch diameter, and 2.172-inch offset
• Encoder-style ABS provision; ABS sensor not included
• Gasket or seal included; wiring harness not included

This MPA Electrical WH590532 hub assembly is built for rear service on the Acura ILX and Honda Civic platforms listed above. It uses a steel hub body with a 2.754-inch hub pilot diameter and a flange design sized for the specified rear applications. This part cross-references Honda OE numbers 42200-TR3-A02 and 42200-TX6-A01 for the same application.

Common Repair Uses

• Restores a worn or noisy rear wheel bearing and hub assembly
• Addresses wheel play, rough rotation, or bearing growl at the rear axle
• Replaces a damaged hub flange or worn wheel stud mounting surface
• Supports ABS encoder-equipped rear hub service on listed vehicles
• Helps correct vibration or uneven wheel-end operation caused by hub wear

Installation Notes

Verify rear fitment by year, model, and build application before installation. Confirm the axle nut torque specification for the vehicle, since the listing notes N/R for the referenced applications. Transfer or connect any vehicle-side ABS components as required, because the ABS sensor and wiring harness are not included.

Quality Assurance

MPA Electrical supplies this part as a new, quality-built hub and bearing assembly for direct replacement service on the listed Acura and Honda rear applications. Confirm all dimensions, stud pattern details, and OE cross-reference numbers before installation to ensure proper match.
