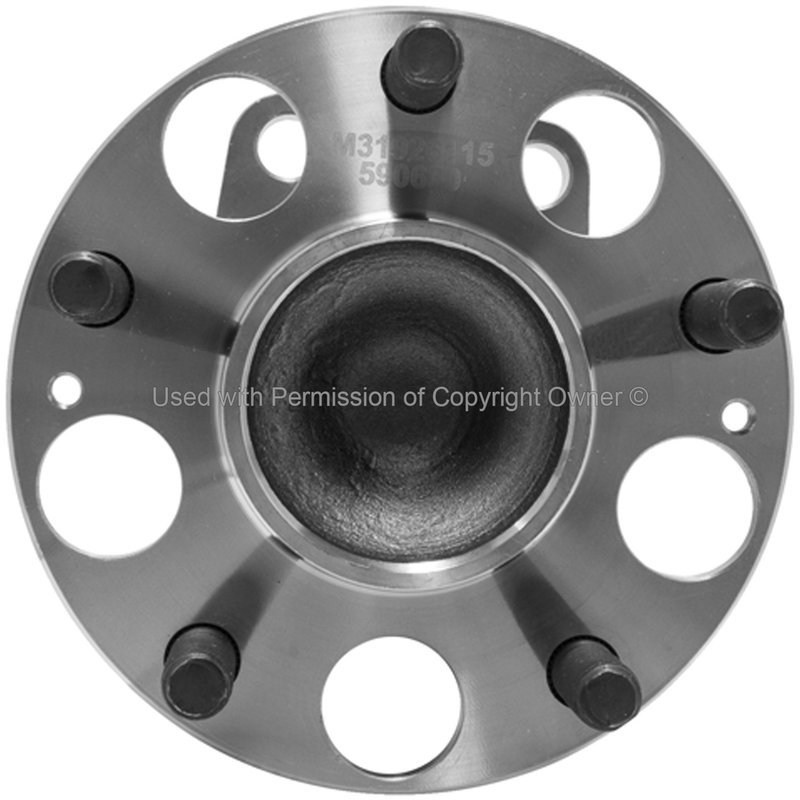

MPA Electrical WH590630 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Honda HR-V

The MPA Electrical WH590630 wheel bearing and hub assembly is designed specifically for Honda HR-V models, providing a precise fit and dependable performance. This new steel assembly includes a flange and gasket to ensure proper sealing and durability.

Key Features of MPA Electrical WH590630

• Includes flange with a rectangular shape and 4 bolt holes for secure mounting
• Flange diameter measures 5.482 inches with a 2.76-inch flange offset
• Equipped with 5 wheel studs sized M12 x 1.5 for compatibility with Honda HR-V wheels
• Anti-lock braking system (ABS) encoder type included, though no ABS sensor or wiring harness is provided
• Hub pilot diameter of 2.873 inches ensures accurate alignment
• Constructed from durable steel material for long-lasting use
• Gasket or seal included to maintain proper sealing and prevent contamination
• Non-greaseable design for maintenance-free operation

Detailed Product Description

The MPA Electrical WH590630 wheel bearing and hub assembly is engineered to meet the specific requirements of Honda HR-V vehicles. Its steel construction offers strength and resistance to wear, while the included flange with a rectangular shape and 4 bolt holes ensures a secure and stable connection to the driveline. The flange diameter of 5.482 inches and offset of 2.76 inches are designed to match OEM specifications, providing proper fitment and alignment. This assembly features 5 wheel studs with an M12 x 1.5 thread size, compatible with standard Honda HR-V wheels. The ABS encoder type supports the vehicle's anti-lock braking system, although the sensor and wiring harness are not included. Additionally, the included gasket or seal helps protect the bearing from dirt and moisture, contributing to the assembly's longevity.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Honda HR-V models
• Eliminates wheel noise or vibration caused by bearing wear
• Restores proper wheel alignment and stability
• Addresses ABS warning lights related to encoder issues (sensor not included)
• Prevents grease contamination with sealed, non-greaseable design

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud pattern match the Honda HR-V specifications. Clean the mounting surface thoroughly before installing the new assembly to ensure proper sealing with the included gasket. Since this assembly is non-greaseable, no additional lubrication is required. Confirm ABS system compatibility and sensor condition during installation, as the sensor and wiring harness are not included with this part.

Quality Assurance and Warranty

The MPA Electrical WH590630 wheel bearing and hub assembly is supplied new and manufactured from high-quality steel to meet OEM standards. While specific warranty details are not provided, MPA Electrical products typically adhere to industry quality controls to ensure reliable performance and durability for Honda HR-V driveline applications.
