MPA ElectricalPart #: WH620302

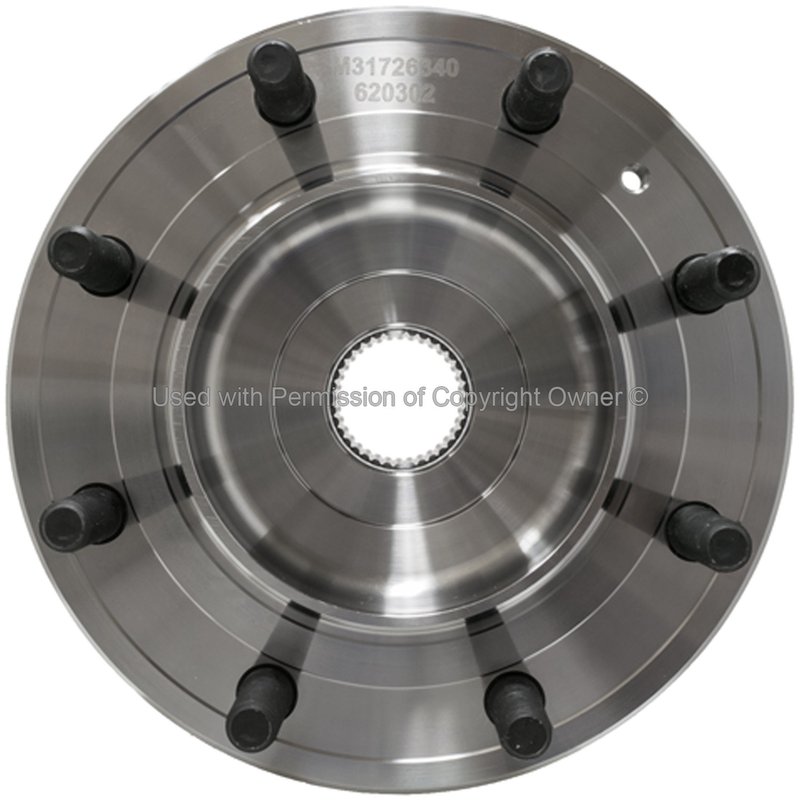

MPA Electrical WH620302 Wheel Bearing and Hub Assembly - Front
54 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$263.10Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, Sierra 3500 HD, Silverado 2500 HD, and Silverado 3500 HD
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Wheel Bearing and Hub Assembly options
Front Wheel Bearing Hub Assembly for HD Trucks
MPA Electrical WH620302 is a front wheel bearing and hub assembly for heavy-duty Chevrolet Silverado 2500 HD and Silverado 3500 HD, as well as GMC Sierra 3500 HD applications with dual rear wheels. Built with a steel hub, integrated ABS sensor, and OE-style mounting features, it supports proper wheel location, braking signal input, and front-end service on the listed trucks.
Key Features
- Front wheel bearing and hub assembly for Chevrolet Silverado 2500 HD, Silverado 3500 HD, and GMC Sierra 3500 HD
- 36-spline hub design with 8 wheel studs and M14 x 1.5 wheel stud size
- Steel construction with flange included, gasket or seal included, and trapezoid flange shape
- ABS sensor included for sensor-type anti-lock brake systems
- Hub pilot diameter: 4.488 in.; flange diameter: 8.704 in.; flange offset: 2.898 in.
- Direct interchange references: 23203924, 25807422, 84459706
Detailed Description
WH620302 is a quality-built hub and bearing assembly engineered for front axle service on 2011-2020 Chevrolet Silverado 2500 HD and Silverado 3500 HD, plus 2012-2020 GMC Sierra 3500 HD models with dual rear wheels. It combines the hub, bearing, flange, seal, and ABS sensor into one service assembly, helping restore correct wheel support and wheel-speed signal performance on the front end. This part number, WH620302, is a direct-fit replacement for applications that call for the listed OE cross references and mounting dimensions.
This part cross-references 23203924 and 25807422 for the same application.
What It Helps Address
- Front wheel bearing noise or rough rotation
- ABS warning light caused by a failed hub sensor
- Wheel looseness or play at the front hub
- Uneven front-end stability from worn hub components
- Service replacement for damaged flange or seal components
Installation Notes and Tips
- Compatible With 2013-2020 Chevrolet Silverado 3500 HD, front, w/ dual rear wheels.
- Compatible With 2012-2020 GMC Sierra 3500 HD, front, w/ dual rear wheels.
- Compatible With 2011-2018 Chevrolet Silverado 2500 HD, front, w/ dual rear wheels.
- Compatible With 2011-2012 Chevrolet Silverado 3500 HD, front, w/ dual rear wheels.
- Compatible With 2011-2012 GMC Sierra 3500 HD, front, w/ dual rear wheels.
Follow OE service manual torque specifications for the axle nut during installation. Verify connector routing and sensor seating before final assembly, and confirm the hub flange and stud pattern match the original front axle setup.
Quality Assurance
MPA Electrical markets this hub and bearing assembly under its Quality-Built Hubs & Bearings line, with a new steel construction and OE-style fitment details for the listed HD truck applications.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH620302 |
| Spline Quantity | 36 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 2.898 |
| Flange Diameter | 8.704 |
| Flange Diameter Inch | 8.704 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 4.488 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 36 |
| Stud Quantity | 8 |
| Wheel Stud Size MM | M14 x 1.5 |
| Wiring Harness Included | No |
This part fits 54 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2020 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2019 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2019 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2019 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2019 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2018 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2017 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2016 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2015 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2014 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2013 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: N/R |
| 2012 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2012 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Chevrolet | Silverado 2500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Chevrolet | Silverado 2500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: Refer to OE service manual |
| 2011 | Chevrolet | Silverado 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: 177 ft-lbs / 240Nm |
| 2011 | Chevrolet | Silverado 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: 177 ft-lbs / 240Nm |
| 2011 | GMC | Sierra 3500 HD | 4WD | 6.6L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: 177 ft-lbs / 240Nm |
| 2011 | GMC | Sierra 3500 HD | 4WD | 6.0L | V8 | Front | w/ Dual Rear Wheels; Wheel Hub Assembly; Axle Nut Torque Spec: 177 ft-lbs / 240Nm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
232039242580742284459706
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
