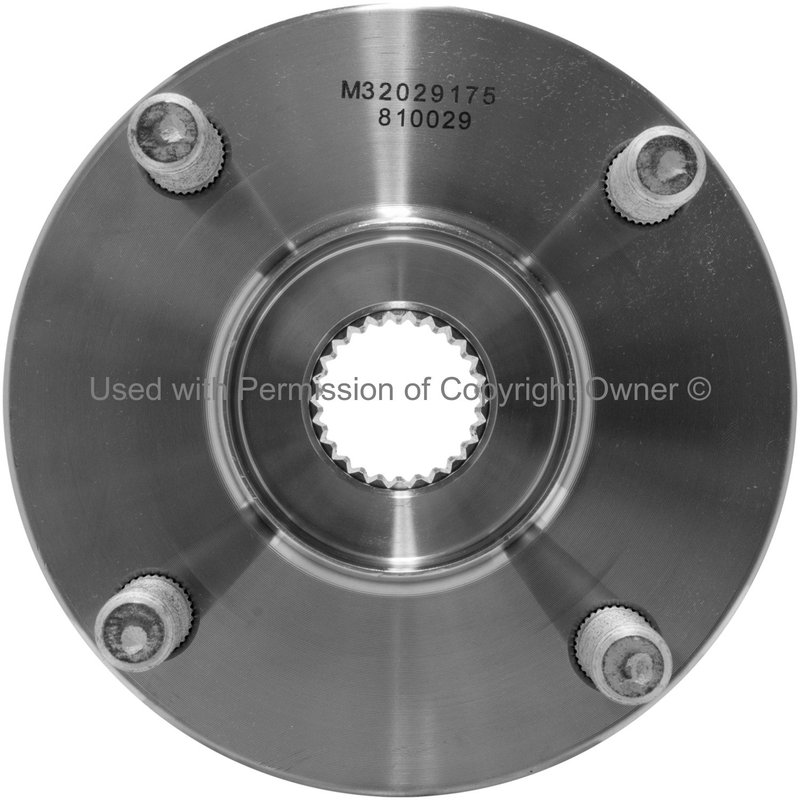

MPA Electrical WH810029 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing Hub Assembly for Rear and Front Applications

MPA Electrical WH810029 is a new wheel bearing and hub assembly built for specific rear and front axle applications on select Fiat, Mazda, Toyota, and Scion vehicles. It combines a steel hub body, integrated flange, and encoder-style ABS tone ring design for direct replacement service where the original hub has worn or failed.

Compatible With 2017-2020 Fiat 124 Spider rear, 2016-2020 Mazda MX-5 rear, 2016-2020 Mazda MX-5 Miata rear, 2019-2020 Toyota Yaris front, 2017-2018 Toyota Yaris iA front, and 2016 Scion iA front. WH810029 is also a fitment match for common OE cross-reference applications in this group.

Key Features

• MPA Electrical WH810029 wheel bearing and hub assembly
• Steel construction for hub and flange durability
• Integrated flange with triangle shape and 3-bolt mounting pattern
• 26-spline hub design
• 4-stud wheel mounting with M12 x 1.5 wheel studs
• Encoder-style ABS configuration
• Gasket or seal included
• New condition replacement part

Detailed Description

This hub assembly is engineered for vehicles that use a 26-spline rear or front hub interface, depending on application. The flange dimensions, hub pilot diameter, and encoder ABS setup support direct replacement of the original wheel bearing and hub assembly on the listed Fiat 124 Spider, Mazda MX-5, Mazda MX-5 Miata, Toyota Yaris, Toyota Yaris iA, and Scion iA applications. WH810029 is a practical service part when the original hub shows bearing noise, looseness, or ABS-related wheel speed signal issues tied to hub wear.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning concerns related to encoder-equipped hub wear
• Uneven wheel rotation caused by hub bearing deterioration
• Mounting issues from a damaged or corroded hub flange

Installation Notes and Tips

Verify year, make, model, and axle position before ordering. This assembly is listed for rear use on Fiat 124 Spider and Mazda MX-5/MX-5 Miata, and front use on Toyota Yaris, Toyota Yaris iA, and Scion iA. Follow the vehicle-specific axle nut torque specification and service procedure noted in the fitment data, and confirm the ABS encoder style matches the original part before installation.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing assembly. WH810029 is supplied new and built to replace the original wheel hub assembly on the listed applications with the specified flange, spline, and ABS encoder configuration.
