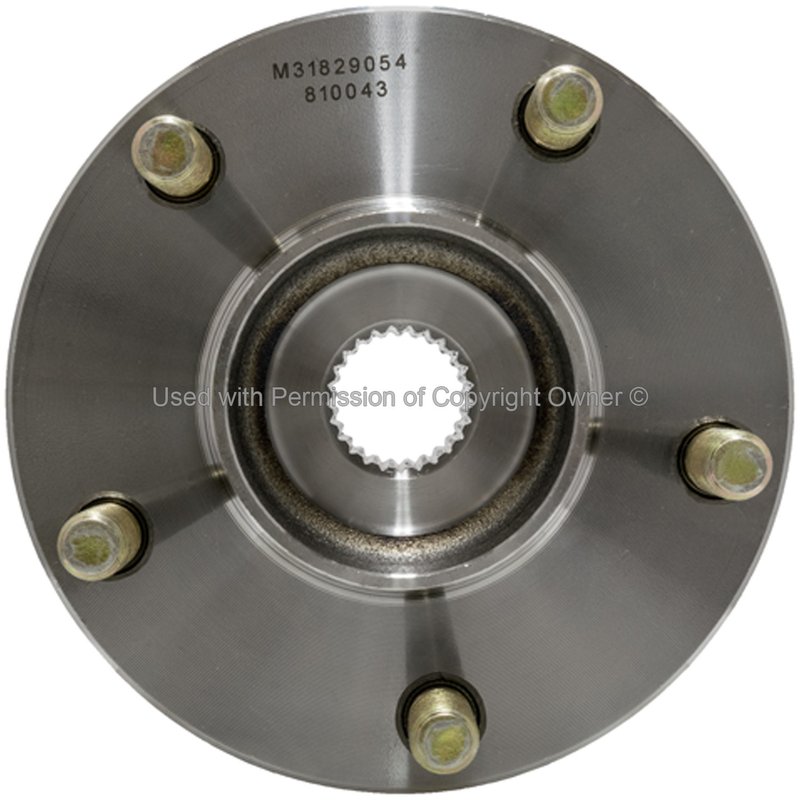

MPA Electrical WH810043 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Mitsubishi Applications

MPA Electrical WH810043 is a rear wheel bearing and hub assembly built for select Mitsubishi vehicles. It combines the hub, bearing, flange, and seal into a direct replacement assembly for rear service on the Outlander, Outlander Sport, Eclipse Cross, and Outlander PHEV applications listed below.

Key Features

• Rear wheel bearing and hub assembly with 25 splines
• Steel construction with integrated flange
• 5 wheel studs with M12 x 1.5 stud size
• Encoder-style ABS tone ring design
• Gasket or seal included
• Flange shape: modified rectangle
• Hub pilot diameter: 3.066 in.
• Flange diameter: 5.531 in. with 4 bolt holes

Detailed Description

Built as a quality-built hub and bearing replacement, WH810043 is made for rear axle service where a worn hub can create noise, looseness, vibration, or ABS-related warning concerns. The assembly uses an encoder-style ABS configuration and a steel hub body with the flange dimensions and stud pattern needed for the listed Mitsubishi rear applications. This part cross-references Mitsubishi OE numbers 3785A035 and 3785A064 for the same application. WH810043 is a direct-fit option for Mitsubishi Outlander rear hub assembly service and related rear wheel bearing replacement needs.

Vehicle Fitment

• Fits 2019-2020 Mitsubishi Eclipse Cross, rear. Wheel Hub Assembly; Axle Nut Torque Spec: N/R
• Fits 2019-2020 Mitsubishi Outlander, rear. Wheel Hub Assembly; Axle Nut Torque Spec: N/R
• Fits 2019-2020 Mitsubishi Outlander PHEV, rear. Wheel Hub Assembly; Axle Nut Torque Spec: N/R
• Fits 2019-2020 Mitsubishi Outlander Sport, rear. Wheel Hub Assembly; Axle Nut Torque Spec: N/R
• Fits 2014-2018 Mitsubishi Outlander, rear
• Fits 2013-2018 Mitsubishi Outlander Sport, rear

Common Problems This Part Can Address

• Rear wheel bearing noise or growling from the hub area
• Wheel play or looseness at the rear axle
• ABS warning concerns related to the encoder-style hub signal
• Uneven hub wear affecting rear wheel rotation
• Vibration or roughness from a failing rear hub assembly

Installation Notes and Tips

Confirm rear fitment by year, model, and position before installation. Inspect the axle, mounting surface, and surrounding brake components for wear or corrosion during replacement. Verify the wheel stud pattern, hub pilot diameter, and ABS encoder orientation match the original part before final assembly. Use the vehicle service procedure for torque specifications and bearing installation steps.

Quality Assurance

MPA Electrical WH810043 is a new replacement hub assembly from the Quality-Built Hubs & Bearings line, made for consistent fit and function in the listed Mitsubishi rear applications.
