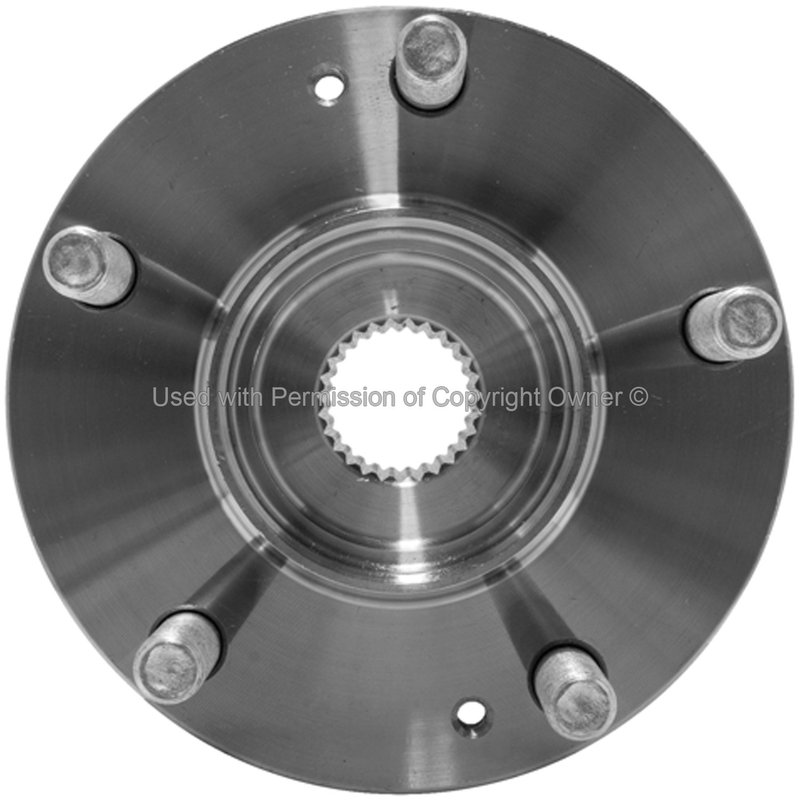

MPA Electrical WH810055 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Kia Soul

MPA Electrical WH810055 is a new wheel bearing and hub assembly for the front of select Kia Soul models. Built with a steel hub and integrated flange, it is specified for 2017-2019 Kia Soul front applications and uses a 27-spline design with 5 wheel studs and M12 x 1.5 wheel studs.

Key Features

• Front wheel bearing and hub assembly for 2017-2019 Kia Soul
• Steel construction with a flange included
• 27-spline hub design
• 5-stud wheel mounting with M12 x 1.5 wheel studs
• Modified rectangle flange shape with 4 flange bolt holes
• Hub pilot diameter: 3.459 in
• Flange diameter: 5.472 in
• Flange offset: 1.515 in
• No ABS sensor included
• No gasket or seal included
• Non-greaseable design

Detailed Description

MPA Electrical WH810055 is a quality-built hub and bearing assembly engineered for front-wheel service on the Kia Soul. It cross-references Hyundai/Kia OE part number 51720-A4500 for the same application. The assembly features a steel hub body, 27 splines, a 4-bolt flange, and a 5-lug wheel pattern to match the original front hub configuration on 2017-2019 Kia Soul models. If you are replacing a worn front wheel hub assembly on a Kia Soul, WH810055 provides the core dimensions and mounting layout needed for a direct-service repair.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• Uneven wheel rotation caused by hub wear
• Damaged or worn wheel mounting surfaces
• Service replacement for a failed front hub assembly on a Kia Soul

Installation Notes and Tips

Fits 2017-2019 Kia Soul, front. Confirm spline count, flange dimensions, and wheel stud specification before installation. The axle nut torque spec listed for this application is 202.5-217 lb-ft. Because no ABS sensor is included, transfer or verify the vehicle’s existing sensor arrangement as needed during service. Always inspect the mating surfaces, axle condition, and surrounding suspension components before final assembly.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing assembly. WH810055 is new and built with steel construction for front hub service on the specified Kia Soul applications.
