OE Quality
60-Day Returns

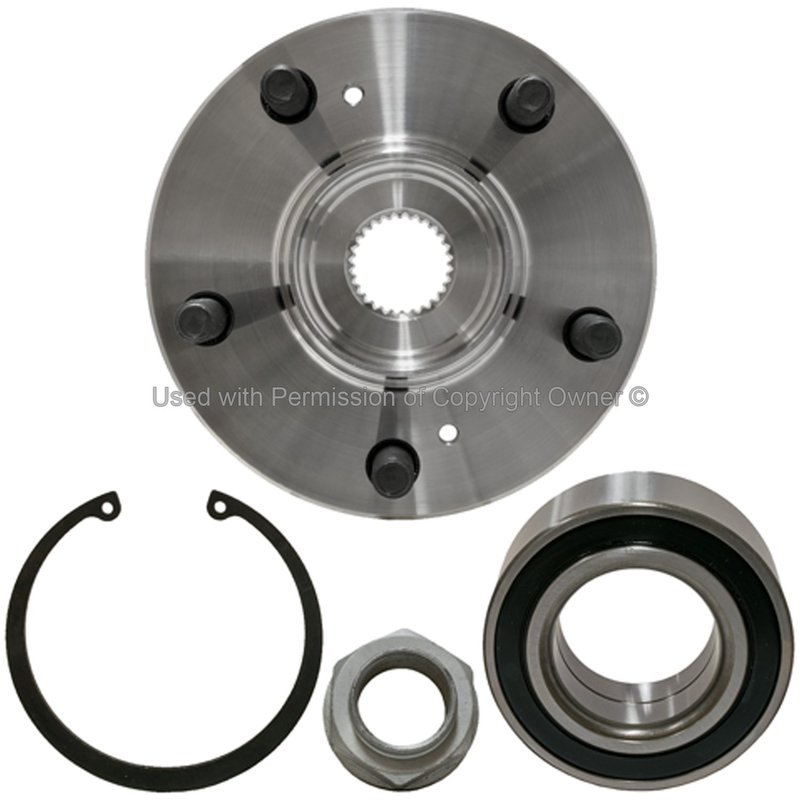

MPA Electrical WH930027K Wheel Hub Repair Kit - Front
Wheel Hub Repair Kit for Honda Front Applications
MPA Electrical WH930027K is a new wheel hub repair kit built for front-wheel service on select Honda applications. It combines a steel hub assembly with an integrated gasket or seal and OE-style dimensions for a direct-fit repair on 1997-2001 Honda CR-V and 1997-2001 Honda Prelude front positions.
Key Features
- Front wheel hub repair kit for select Honda CR-V and Honda Prelude applications
- Steel construction for durable service in driveline and axle repairs
- Includes gasket or seal
- 5-stud hub design with M12 x 1.5 wheel stud size
- 28-spline configuration
- Hub pilot diameter: 1.772 inch
- Flange diameter: 5.735 inch
- Flange offset: 2.21 inch
- New condition replacement part
Detailed Description
WH930027K from MPA Electrical is a front wheel hub repair kit engineered around OE-style hub and bearing service requirements. The steel hub body, 5-stud pattern, 28-spline count, and measured flange and pilot dimensions support accurate replacement on 1997-2001 Honda CR-V front and 1997-2001 Honda Prelude front applications. This part cross-references Honda 42200-S3V-A01 and 44300-S84-A02 for the same application. The MPA Electrical WH930027K is a practical choice when servicing worn hub components on Honda CR-V and Honda Prelude front driveline assemblies.
Common Repair Uses
- Front wheel hub noise caused by worn hub or bearing components
- Excessive play or looseness at the front wheel assembly
- Vibration or roughness from a damaged hub interface
- Seal-related contamination at the hub area
- Restoring proper wheel mounting and spline engagement
Installation Notes and Tips
Fits 1997-2001 Honda CR-V, front, with FWD. Fits 1997-2001 Honda Prelude, front. Verify axle nut torque using the OE service manual during installation. Confirm spline count, stud size, and hub dimensions before assembly. Wiring harness is not included.
Quality Assurance
MPA Electrical supplies this part as a new replacement hub assembly built to match the listed application requirements and dimensional specifications for front service on Honda CR-V and Honda Prelude models.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH930027K |
| Flange Offset | 2.21 |
| Flange Diameter Inch | 5.735 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 1.772 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 28 |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Honda | CR-V | 2.0L | L4 | Front | w/ FWD, Position = Front, Axle Nut Torque Spec: Refer to OE service manual; Wheel Hub Repair Kit |
| 2001 | Honda | Prelude | 2.2L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2000 | Honda | CR-V | 2.0L | L4 | Front | w/ FWD, Position = Front, Axle Nut Torque Spec: Refer to OE service manual; Wheel Hub Repair Kit |
| 2000 | Honda | Prelude | 2.2L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 1999 | Honda | CR-V | 2.0L | L4 | Front | w/ FWD, Position = Front, Axle Nut Torque Spec: Refer to OE service manual; Wheel Hub Repair Kit |
| 1999 | Honda | Prelude | 2.2L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 1998 | Honda | CR-V | 2.0L | L4 | Front | w/ FWD, Position = Front, Axle Nut Torque Spec: Refer to OE service manual; Wheel Hub Repair Kit |
| 1998 | Honda | Prelude | 2.2L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 1997 | Honda | CR-V | 2.0L | L4 | Front | w/ FWD, Position = Front, Axle Nut Torque Spec: Refer to OE service manual; Wheel Hub Repair Kit |
| 1997 | Honda | Prelude | 2.2L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
