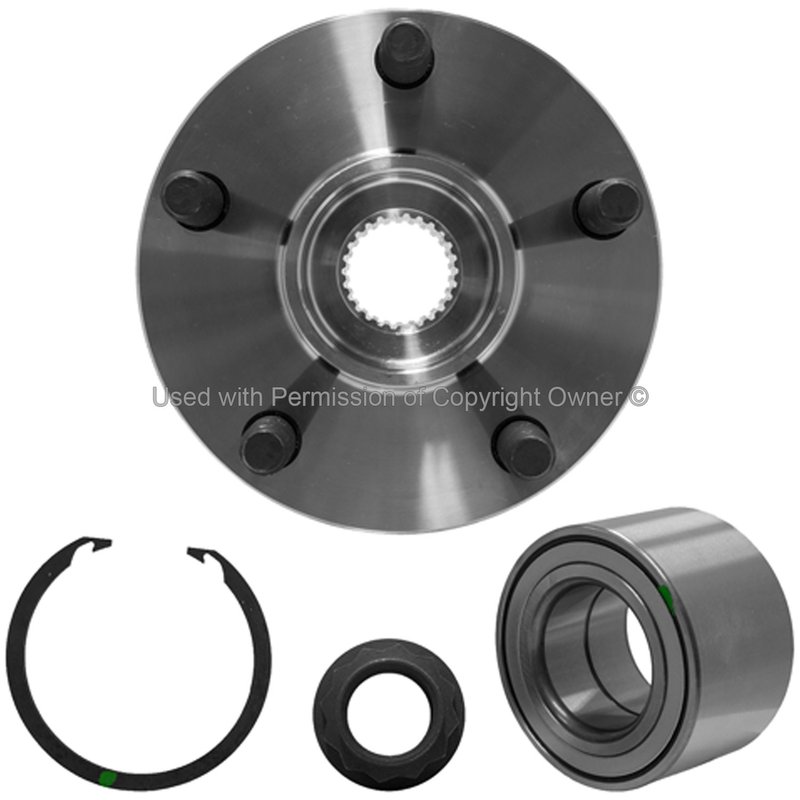

MPA Electrical WH930410K Wheel Hub Repair Kit - Front
Front Wheel Hub Repair Kit for Scion tC
MPA Electrical WH930410K is a front wheel hub repair kit built for 2005-2009 Scion tC applications. It is a new steel hub and bearing service part with a 5-stud, M12 x 1.5 wheel stud pattern and 26 splines for the specified driveline setup.
Key Features
- Fits 2005-2009 Scion tC, front
- New steel construction for service replacement use
- Flange diameter: 4.916 inch
- Flange offset: 2.364 inch
- Hub pilot diameter: 1.576 inch
- 5 wheel studs with M12 x 1.5 thread size
- 26-spline design
- Gasket or seal included
- No wiring harness included
- Cross-reference part numbers: 43502-21010, 90080-36136
Detailed Description
WH930410K is a front wheel hub repair kit for the Scion tC, covering 2005, 2006, 2007, 2008, and 2009 model years. MPA Electrical lists this unit as a quality-built hub and bearing service component, and the steel hub body is paired with an included gasket or seal for the specified front-wheel application. The hub uses a 5-lug pattern with M12 x 1.5 wheel studs, a 26-spline configuration, and the listed flange and pilot dimensions for OE-style fitment on the front axle assembly. This part number, WH930410K, is a direct reference for buyers searching for a front wheel hub repair kit for Scion tC models.
What It Helps Address
- Front wheel bearing noise or rough rotation
- Excessive play at the hub assembly
- Damaged or worn hub mounting surfaces
- Service replacement for a failed front hub on a Scion tC
- Restoration of proper wheel mounting and spline engagement
Installation Notes
Verify the vehicle is a 2005-2009 Scion tC with front application before ordering. Confirm flange dimensions, spline count, and wheel stud thread size against the original part. Axle nut torque specification should be taken from the OE service manual during installation. WH930410K does not include a wiring harness.
Quality Assurance
MPA Electrical supplies this part as a new replacement hub and bearing service component. The manufacturer description identifies it as a quality-built hub and bearing assembly for the listed application.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH930410K |
| Flange Offset | 2.364 |
| Flange Diameter Inch | 4.916 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 1.576 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 26 |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Scion | tC | 2.4L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2008 | Scion | tC | 2.4L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2007 | Scion | tC | 2.4L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2006 | Scion | tC | 2.4L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2005 | Scion | tC | 2.4L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
