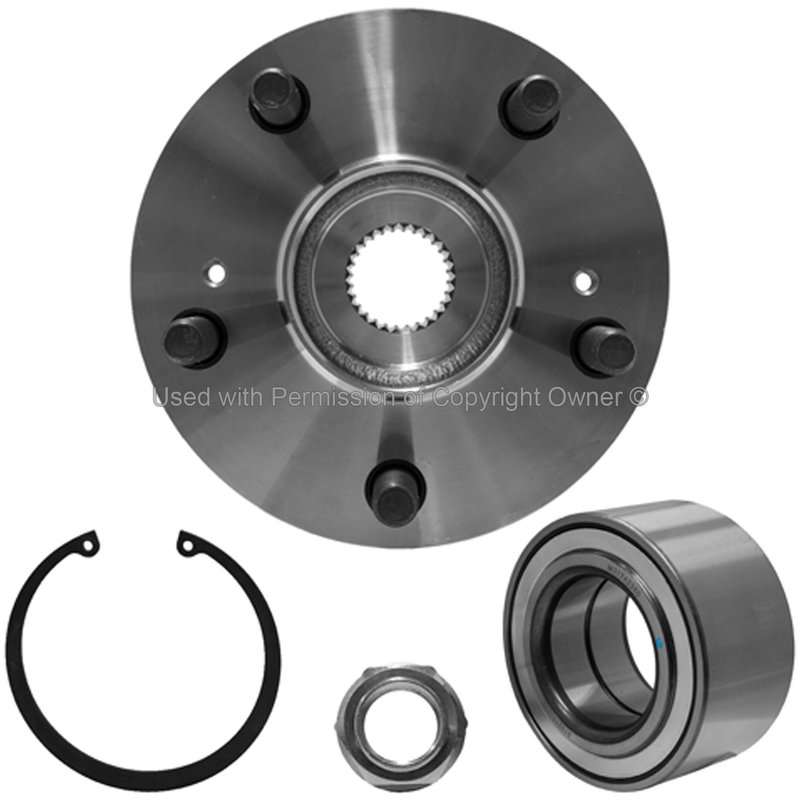

MPA Electrical WH930451K Wheel Hub Repair Kit
| Brand | MPA Electrical WH930451K |
|---|---|
| Flange Offset | 2.408 |
| Flange Diameter Inch | 5.756 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 1.89 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 28 |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.5 |
| Wiring Harness Included | No |
| Fits | Acura and Honda · 8 vehicles |
Steel construction. Built for dependable service in a wheel hub repair kit.
Seal included. Helps restore a tighter, cleaner hub assembly.
Quality-built hubs and bearings. A service kit from MPA Electrical.
Cross-references 44300-S3V-A02 and 44600-S0X-A00 for the same application. See all 2.
Wheel Hub Repair Kit for Honda, Acura
MPA Electrical WH930451K is a new wheel hub repair kit built for select Honda and Acura applications. It combines a steel hub assembly with integrated bearing-related service components to restore proper wheel support and rotation on the listed vehicles.
- New wheel hub repair kit from MPA Electrical
- Steel construction for service replacement use
- Gasket or seal included: yes
- 5-stud wheel mounting pattern with M12 x 1.5 wheel studs
- 28-spline hub configuration
- Hub pilot diameter: 1.89 in.
- Flange diameter: 5.756 in.
- Flange offset: 2.408 in.
- Greaseable: no
- Wiring harness included: no
Detailed Application Coverage
WH930451K is a direct-fit wheel hub repair solution for 2001-2004 Honda Odyssey, 2003-2004 Honda Pilot, and 2001-2002 Acura MDX. This part number, WH930451K, is also referenced for OE-style service replacement needs where the original hub and bearing assembly has worn, developed noise, or lost smooth wheel rotation. This part cross-references 44300-S3V-A02 and 44600-S0X-A00 for the same application.
What This Part Helps Address
- Wheel bearing noise or rough rotation
- Excessive hub play or looseness
- Vibration related to hub wear
- Seal-related contamination at the hub assembly
- Restoration of proper wheel mounting interface
Installation Notes
Verify axle nut torque using the OE service manual for the specific vehicle before returning the vehicle to service. Confirm spline count, stud pattern, hub pilot diameter, and flange dimensions against the removed part before installation. WH930451K is listed for the rear service application on the covered Honda Odyssey, Honda Pilot, and Acura MDX vehicles.
Quality Assurance
MPA Electrical markets this part as a quality-built hub and bearing service component. The new steel construction and included seal support a service replacement installation on the specified Honda and Acura models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Honda | Odyssey | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2004 | Honda | Pilot | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2003 | Honda | Odyssey | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2003 | Honda | Pilot | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2002 | Acura | MDX | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2002 | Honda | Odyssey | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2001 | Acura | MDX | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2001 | Honda | Odyssey | 3.5L | V6 | N/A | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
