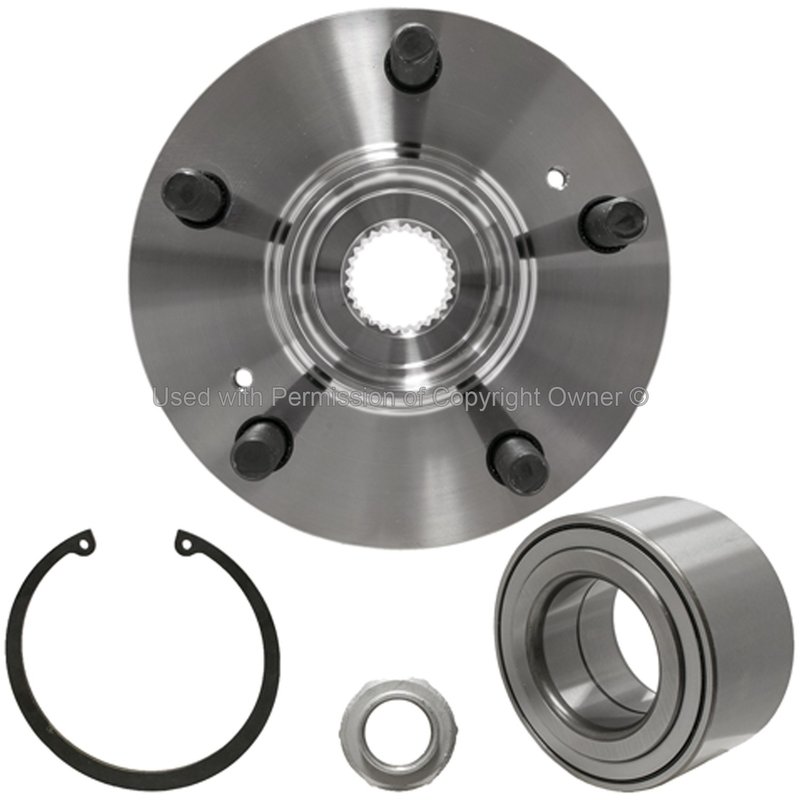

MPA Electrical WH930457K Wheel Hub Repair Kit - Front
OE Quality 60-Day Returns
MPA Electrical

MPA Electrical WH930457K Wheel Hub Repair Kit - Front

Brand MPA Electrical WH930457K
Position Front
Flange Offset 2.403
Flange Diameter Inch 5.756
Gasket or Seal Included Yes
Greaseable No
Hub Pilot Diameter Inch 1.891
Material Steel
Product Condition New
Spline Quantity 28
Stud Quantity 5
Wheel Stud Size MM M12 x 1.5
Wiring Harness Included No
Fits Acura · 12 vehicles

Steel construction. Built for durable hub and bearing service.

Seal included. Helps complete the repair with a better fit.

Wheel hub repair kit. Combines the key service components in one part.

Cross-references 44300-SP0-004, 44300-SP0-008 and 44600-SZ5-000 for the same application. See all 3.

$79.12Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $79.12
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Hub Repair Kit options

Front Wheel Hub Repair Kit for Acura RL and TL

MPA Electrical WH930457K is a new front wheel hub repair kit built for select Acura applications. It is a steel hub and bearing service component with an included gasket or seal, made for 1996-2004 Acura RL and 1996-1998 Acura TL front positions.

Key Features

  • New wheel hub repair kit for front axle service
  • Steel construction for durable hub support
  • Includes gasket or seal
  • 5-stud hub design with M12 x 1.5 wheel studs
  • 28-spline configuration
  • Hub pilot diameter: 1.891 in.
  • Flange diameter: 5.756 in.
  • Flange offset: 2.403 in.
  • Greaseable: No
  • Wiring harness included: No

Detailed Description

WH930457K is a front wheel hub repair kit from MPA Electrical, listed as Quality-Built Hubs & Bearings. It is engineered for direct-fit service on Acura RL and Acura TL front hub applications, with dimensions and mounting details that align with the original equipment style setup. This part cross-references OE numbers 44300-SP0-004 and 44300-SP0-008 for the same application. Use WH930457K when servicing a worn or damaged front hub assembly on 1996-2004 Acura RL or 1996-1998 Acura TL models.

What It Helps Repair

  • Front wheel bearing noise or rough rotation
  • Hub play or looseness at the wheel end
  • Damaged wheel stud mounting surfaces
  • Seal-related contamination at the hub assembly
  • Service issues on Acura RL and Acura TL front hub assemblies

Installation Notes and Tips

Confirm front-position fitment before ordering. Verify the 28-spline configuration, 5-stud pattern, and M12 x 1.5 wheel stud size against the original part. Axle nut torque specification should be taken from the OE service manual during installation. Inspect the mating surfaces, seal area, and related suspension components before reassembly.

Quality Assurance

MPA Electrical supplies this part as a new steel hub repair component under its Quality-Built Hubs & Bearings line. The part is built to match the listed fitment and dimensional specifications for Acura RL and Acura TL front service applications.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2004AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2003AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2002AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2001AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2000AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1999AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1998AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1998AcuraTL3.2LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1997AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1997AcuraTL3.2LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1996AcuraRL3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
1996AcuraTL3.2LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
44300-SP0-00444300-SP0-00844600-SZ5-000
