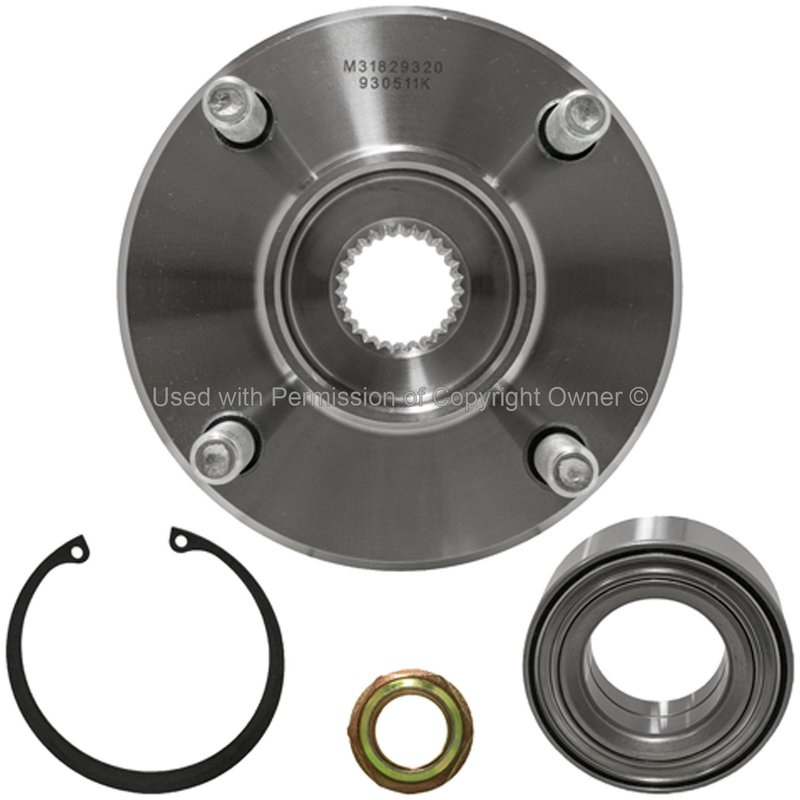

MPA Electrical WH930511K Wheel Hub Repair Kit - Front

Front Wheel Hub Repair Kit for Ford and Mercury

MPA Electrical WH930511K is a front wheel hub repair kit built for select Ford Contour, Mercury Mystique, and Mercury Cougar applications. It is a new steel hub assembly with an included gasket or seal, made for vehicles that use a 4-stud, M12 x 1.5 wheel pattern and a 27-spline interface.

Key Features

• New steel wheel hub repair kit
• Front position application
• Gasket or seal included
• 4-stud wheel mounting with M12 x 1.5 wheel studs
• 27-spline hub configuration
• Hub pilot diameter: 1.576 inch
• Flange diameter: 4.82 inch
• Flange offset: 2.122 inch
• Non-greaseable design
• Wiring harness not included

Detailed Description

WH930511K is a direct-fit style front wheel hub repair kit from MPA Electrical, engineered for vehicles that match the listed hub dimensions and spline count. It cross-references Ford F5RZ 1104-A for the same application. This part is used on 1995-1997 Ford Contour, front; 1998-2000 Ford Contour, front; 1995-1997 Mercury Mystique, front; 1998-2000 Mercury Mystique, front; and 1999-2002 Mercury Cougar, front. The WH930511K hub assembly is a practical replacement when the original front hub shows wear, looseness, or mounting damage.

What This Part Helps Address

• Front wheel bearing or hub noise
• Wheel looseness or play at the hub
• Damaged wheel stud mounting points
• Seal-related contamination at the hub area
• Fitment issues on 4-lug, 27-spline front hub applications

Installation Notes and Tips

Verify axle nut torque during installation: 246 ft-lbs / 334Nm for 1995-1997 Ford Contour and Mercury Mystique, 199 ft-lbs / 270Nm for 1998-2000 Ford Contour and Mercury Mystique, and 214 ft-lbs / 290Nm for 1999-2002 Mercury Cougar. Confirm spline count, hub pilot diameter, flange dimensions, and stud size before installation. WH930511K is a front hub repair kit, so fitment should be matched to the vehicle’s front axle configuration only.

Quality Assurance

MPA Electrical markets this part as a quality-built hub and bearing replacement. The steel construction, new condition, and included gasket or seal support a service-ready front hub repair for the specified Ford and Mercury applications.
