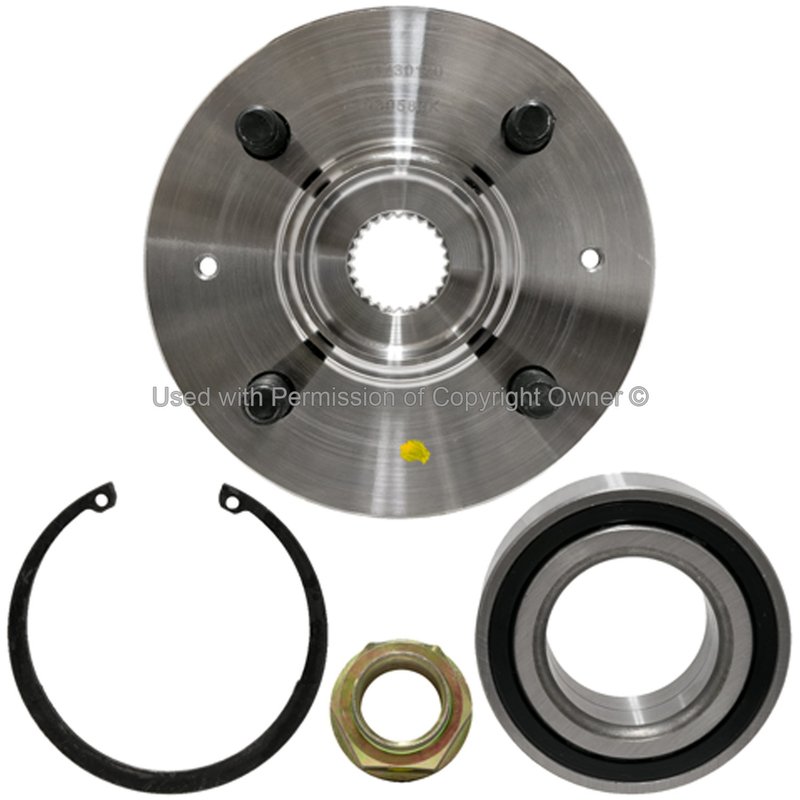

MPA Electrical WH930589K Wheel Hub Repair Kit - Front
Front Wheel Hub Repair Kit for Honda Civic
MPA Electrical WH930589K is a front wheel hub repair kit for 2001-2005 Honda Civic models. Built with a steel hub assembly and integrated gasket or seal, it is specified for front service on Civic applications that use a 26-spline, 4-stud hub with M12 x 1.50 wheel studs.
Key Features
- Fits 2001-2005 Honda Civic, front
- Steel construction for hub service applications
- Gasket or seal included
- 26 spline quantity and 4-stud design
- Wheel stud size: M12 x 1.50
- Hub pilot diameter: 1.693 inch
- Flange diameter: 5.482 inch
- New condition replacement part
- Part number WH930589K
Detailed Description
WH930589K is a Quality-Built Hubs & Bearings wheel hub repair kit from MPA Electrical for front-wheel service on the Honda Civic. It is engineered with a steel hub body, a 1.693-inch hub pilot diameter, and a 5.482-inch flange diameter to match the listed application. The design includes a gasket or seal and uses a 26-spline, 4-stud layout with M12 x 1.50 wheel studs. If you are searching for a front wheel hub repair kit for 2001-2005 Honda Civic models, WH930589K is the direct fitment reference to review.
This part cross-references Honda OE 44600-S5D-A00 for the same application.
Common Problems This Part Addresses
- Wheel hub noise from worn hub or bearing components
- Excessive play or looseness at the front wheel hub
- Rough rotation or vibration from a damaged hub assembly
- Seal-related contamination at the hub area
- Service replacement for a worn Honda Civic front hub
Installation Notes and Tips
Confirm the vehicle is a 2001-2005 Honda Civic with front hub service before ordering. Verify spline count, stud pattern, flange diameter, and hub pilot diameter against the original part. Follow the OE service manual for axle nut torque specification during installation. WH930589K does not include a wiring harness.
Quality Assurance
MPA Electrical supplies this part as a new replacement hub repair kit under its Quality-Built Hubs & Bearings line. Review all fitment and dimensional details against the original component before installation to ensure correct application on your Honda Civic.
| Brand | MPA Electrical |
|---|---|
| Part Number | WH930589K |
| Flange Diameter Inch | 5.482 |
| Gasket or Seal Included | Yes |
| Greaseable | No |
| Hub Pilot Diameter Inch | 1.693 |
| Material | Steel |
| Product Condition | New |
| Spline Quantity | 26 |
| Stud Quantity | 4 |
| Wheel Stud Size MM | M12 x 1.50 |
| Wiring Harness Included | No |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | 2.0L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2005 | Honda | Civic | 1.7L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2005 | Honda | Civic | 1.3L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2004 | Honda | Civic | 2.0L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2004 | Honda | Civic | 1.7L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2004 | Honda | Civic | 1.3L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2003 | Honda | Civic | 2.0L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2003 | Honda | Civic | 1.7L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2003 | Honda | Civic | 1.3L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2002 | Honda | Civic | 2.0L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2002 | Honda | Civic | 1.7L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
| 2001 | Honda | Civic | 1.7L | L4 | Front | Wheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
