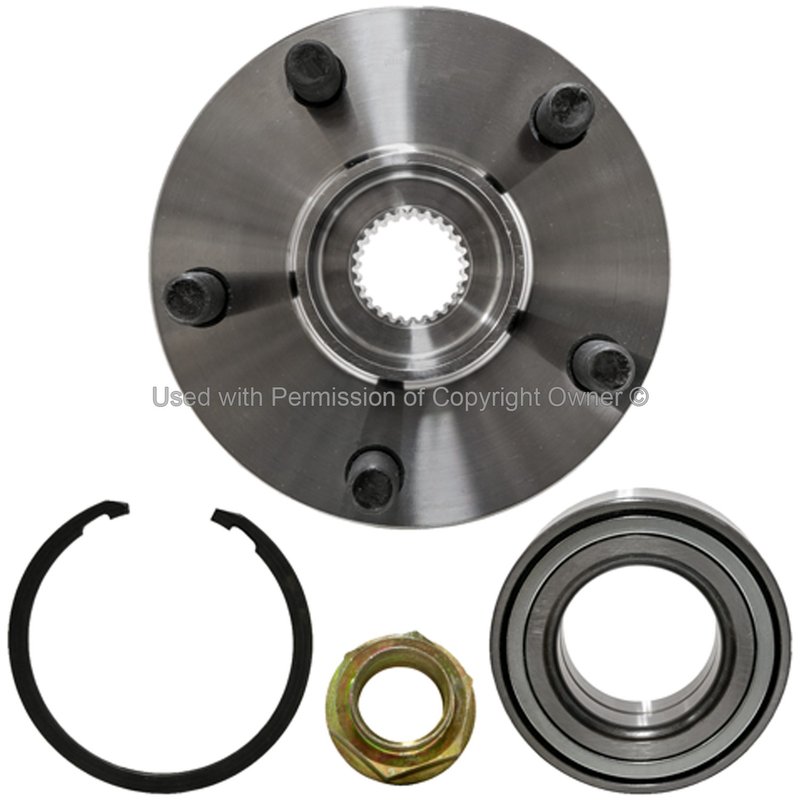

MPA Electrical WH930598K Wheel Hub Repair Kit - Front

Wheel Hub Repair Kit for Toyota Front Applications

MPA Electrical WH930598K is a new wheel hub repair kit built for front-wheel applications on select Toyota, Pontiac, and Matrix platforms. It is a steel hub assembly with a 5-stud pattern, 26 splines, and M12 x 1.5 wheel studs for direct replacement service on the front axle.

Key Features

• New wheel hub repair kit from MPA Electrical
• Steel construction for front driveline and axle service
• 26-spline hub design
• 5-stud wheel mounting pattern with M12 x 1.5 wheel studs
• Flange diameter: 4.92 in.
• Flange offset: 2.406 in.
• Hub pilot diameter: 1.575 in.
• No greaseable fitting and no gasket or seal included

Detailed Description

WH930598K is engineered for front hub repair on 2000-2005 Toyota Celica, 2003-2016 Toyota Corolla, 2003-2013 Toyota Matrix, and 2003-2010 Pontiac Vibe. The hub is built from steel and follows the specified OE-style dimensions, including a 4.92-inch flange diameter and 1.575-inch hub pilot diameter, to support proper wheel mounting and axle engagement. This part cross-references Toyota 43502-32080 and 88971027 for the same application. Use WH930598K when replacing a worn front wheel hub on Toyota Corolla, Toyota Matrix, or Pontiac Vibe platforms where the listed spline count and stud pattern match the vehicle.

What It Helps Resolve

• Front wheel bearing or hub noise
• Excessive wheel play or looseness at the hub
• Vibration or roughness from a worn front hub assembly
• Wheel mounting issues related to damaged studs or hub wear
• Service replacement for a front hub with incorrect spline or pilot dimensions

Installation Notes and Tips

Confirm year, make, model, and front position before installation. Verify 26 spline count, 5-stud pattern, and M12 x 1.5 wheel stud size against the original part and hub dimensions. Inspect the mating surfaces, axle interface, and surrounding suspension components during service to ensure proper fitment on Toyota Corolla, Toyota Matrix, Pontiac Vibe, and Toyota Celica front applications.

Quality Assurance

MPA Electrical lists this part as a quality-built hub and bearing assembly in new condition. The steel construction and OE-referenced dimensions support consistent replacement service for front hub repair on the confirmed applications.
