MPA Electrical WH930876K Wheel Hub Repair Kit - Front
OE Quality 60-Day Returns
MPA Electrical

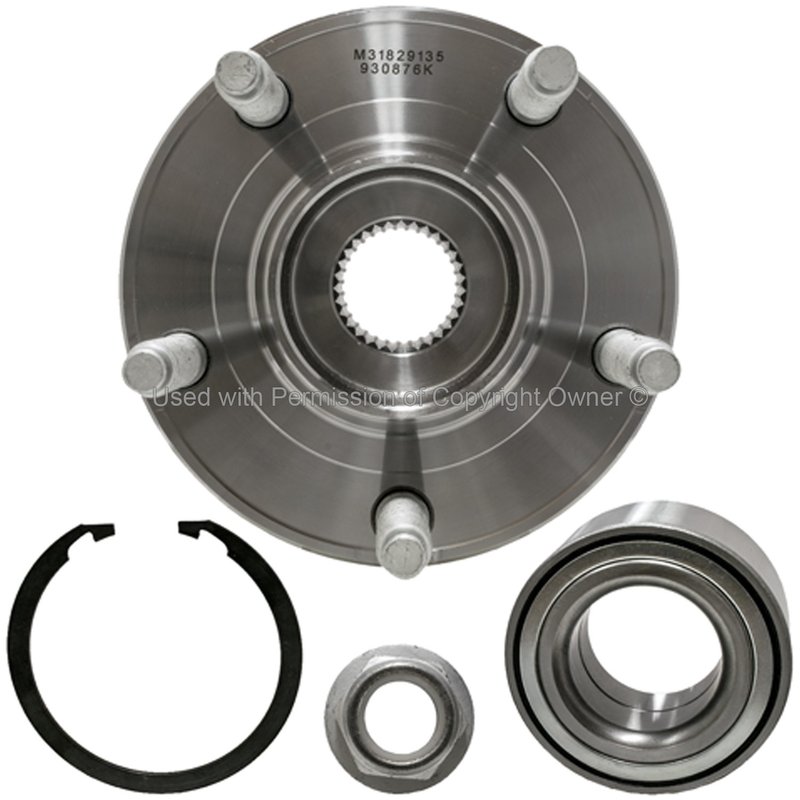

MPA Electrical WH930876K Wheel Hub Repair Kit - Front

Brand MPA Electrical WH930876K
Position Front
Flange Offset 2.41
Flange Diameter Inch 5.5
Gasket or Seal Included No
Greaseable No
Hub Pilot Diameter Inch 1.773
Material Steel
Product Condition New
Spline Quantity 31
Stud Quantity 5
Wheel Stud Size MM M12 x 1.50
Fits Ford and Lincoln · 15 vehicles

Steel construction. Built for dependable strength in a wheel hub repair kit.

31-spline design. Provides the spline count specified for this hub assembly.

Quality-built hubs and bearings. A service kit from MPA Electrical.

Cross-references BT4Z1104A for the same application. See all 1.

$91.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $91.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Hub Repair Kit options

Front Wheel Hub Repair Kit for Edge and MKX

MPA Electrical WH930876K is a front wheel hub repair kit built for select Ford Edge and Lincoln MKX applications. It is a new steel hub assembly with a 5-bolt, M12 x 1.50 stud pattern and 31 splines, made to match the OE-style service requirements for these vehicles.

Use WH930876K when servicing a front hub on 2011-2014 Ford Edge or 2011-2014 Lincoln MKX. This part cross-references Ford BT4Z1104A for the same application.

Key Features

  • Brand: MPA Electrical
  • Part number: WH930876K
  • Front wheel hub repair kit for Ford Edge and Lincoln MKX
  • Steel construction for service replacement use
  • 31 spline count
  • 5-stud wheel mounting pattern with M12 x 1.50 wheel studs
  • Flange diameter: 5.5 inch
  • Flange offset: 2.41 inch
  • Hub pilot diameter: 1.773 inch
  • New condition

Product Details

WH930876K is a front hub repair solution for 2011-2014 Ford Edge and 2011-2014 Lincoln MKX models. The steel hub design follows the OE service layout for the front axle area, with a 31-spline interface and a 5-stud wheel pattern sized for M12 x 1.50 wheel studs. The hub pilot diameter, flange diameter, and flange offset are specified to support proper fitment during hub service on the listed vehicles. MPA Electrical identifies this unit as a quality-built hub and bearing service part, making it a direct replacement option for the front end of these applications.

Common Service Issues

  • Front wheel bearing noise or roughness
  • Excessive play at the wheel hub
  • Vibration or looseness from a worn front hub assembly
  • Wheel mounting wear related to a damaged hub flange
  • Service replacement for a failed OE-style front hub on Edge or MKX

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before installation. For 2011 Ford Edge and 2011 Lincoln MKX, axle nut torque is 258 ft-lbs / 351 Nm; for 2012-2014 models, refer to the OE service manual for the correct axle nut torque specification. Verify spline count, stud size, and hub dimensions against the original part before assembly.

Quality Assurance

MPA Electrical supplies this as a new steel service part built to match the listed OE application details for Ford Edge and Lincoln MKX front hub repair.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2014FordEdge3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2014FordEdge3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2014FordEdge2.0LL4FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2014LincolnMKX3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2013FordEdge3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2013FordEdge3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2013FordEdge2.0LL4FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2013LincolnMKX3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2012FordEdge3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2012FordEdge3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2012FordEdge2.0LL4FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2012LincolnMKX3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: Refer to OE service manual
2011FordEdge3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: 258 ft-lbs / 351Nm
2011FordEdge3.5LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: 258 ft-lbs / 351Nm
2011LincolnMKX3.7LV6FrontWheel Hub Repair Kit; Axle Nut Torque Spec: 258 ft-lbs / 351Nm
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BT4Z1104A
