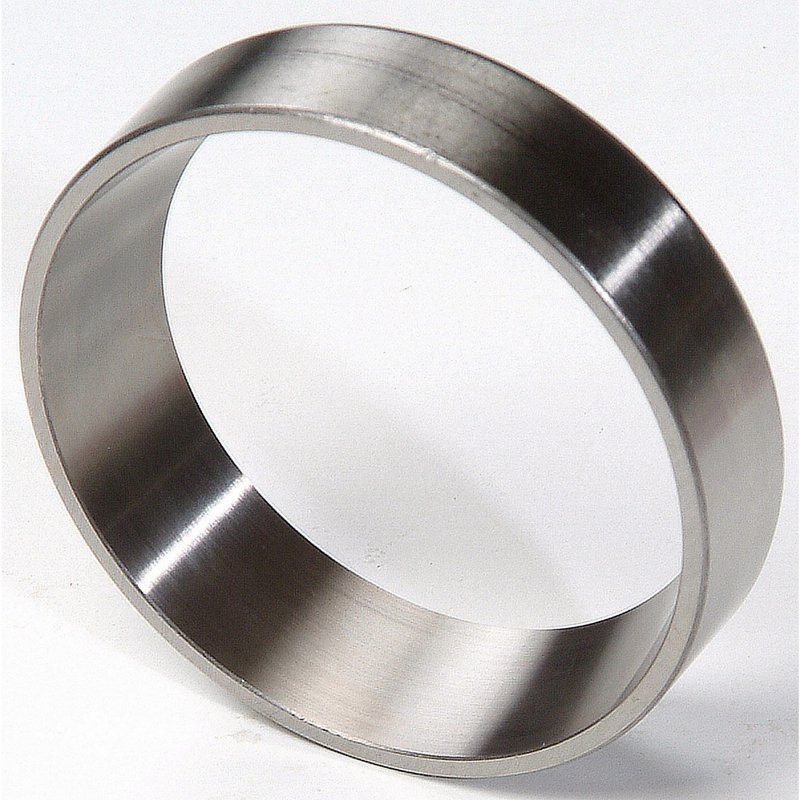

National 09196 Wheel Bearing Race - Front Outer

Overview of National 09196 Wheel Bearing Race

The National 09196 wheel bearing race is a precision-engineered taper bearing cup designed to meet the demanding requirements of driveline and axle assemblies. This component is essential for maintaining proper wheel bearing function and ensuring smooth vehicle operation, particularly in applications requiring exact fitment and durability.

• Part Number: 09196
• Brand: National
• Category: Wheel Bearing Race (Taper Bearing Cup)
• Cup Bore Diameter: 1.9380 inches (49.2250 mm)
• Cup Length: 0.6875 inches (17.4630 mm)
• Cup Radius: 0.0620 inches (1.5750 mm)

Technical Specifications and Features

The National 09196 wheel bearing race features a cup bore diameter of 1.9380 inches (49.2250 mm), providing a precise fit for compatible wheel bearings. The cup length measures 0.6875 inches (17.4630 mm), ensuring proper seating within the hub assembly. Additionally, the cup radius of 0.0620 inches (1.5750 mm) supports optimal load distribution and bearing alignment. Manufactured to meet stringent quality standards, this taper bearing cup is designed for reliable performance in driveline and axle systems.

Applications and Vehicle Compatibility

This wheel bearing race is compatible with a range of vehicles requiring a taper bearing cup with the specified dimensions. It is commonly used in driveline and axle assemblies of various makes and models, including popular trucks and SUVs where precise bearing fitment is critical. For example, it is suitable for certain Ford F-Series, Chevrolet Silverado, and Dodge Ram models that utilize a 1.9380-inch cup bore diameter in their wheel bearing assemblies. Always verify fitment with your vehicle's specifications before installation.

Common Issues Addressed by National 09196

• Eliminates wheel bearing play caused by worn or damaged bearing races
• Prevents premature bearing failure due to improper seating
• Reduces noise and vibration from axle assemblies
• Restores proper bearing alignment and load distribution
• Supports safe and smooth wheel rotation under load

Installation Notes and Tips

Proper installation of the National 09196 wheel bearing race is critical for optimal performance. Use a bearing race driver tool to seat the cup evenly without damaging the surface. Ensure the hub and spindle are clean and free of debris before installation. It is recommended to inspect the mating bearing and replace it if signs of wear are present. Torque specifications should be followed according to the vehicle manufacturer’s guidelines to avoid over-tightening or loosening during operation.

Quality Assurance and Warranty

National manufactures the 09196 wheel bearing race to meet industry standards for durability and precision. While specific warranty details may vary, National products typically come with a limited warranty against defects in materials and workmanship. This ensures that the taper bearing cup maintains its integrity under normal operating conditions when installed correctly.
