National 30305 Differential Pinion Bearing

National 30305 Differential Pinion Bearing Overview

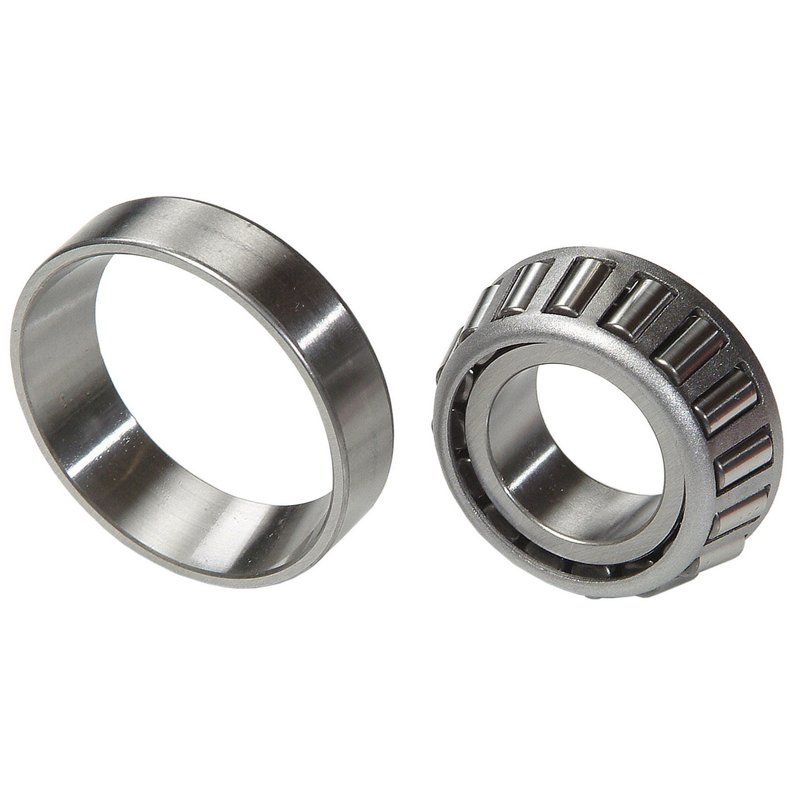

The National 30305 differential pinion bearing is engineered for reliable driveline performance in a variety of vehicles including Chevrolet, Dodge, Hyundai, and Volkswagen models. Designed as a taper bearing assembly, this part ensures smooth rotation and durability under demanding conditions.

• Bore diameter: 0.9843 inches (25.00 mm)
• Cone length: 0.6693 inches (17.00 mm)
• Cone radius: 0.0800 inches (2.032 mm)
• Cup length: 0.5906 inches (15.00 mm)
• Cup radius: 0.0800 inches (2.032 mm)
• Outside diameter: 2.4409 inches (62.00 mm)
• Width: 0.7185 inches (18.25 mm)
• Design: Iso metric taper bearing
• Type: TS series 30300
• Standout: 0.1280 inches (3.25 mm)

Technical Details of the 30305 Differential Pinion Bearing

This National differential pinion bearing features a precise bore size of 0.9843 inches (25 mm) to fit securely on the pinion shaft. The cone and cup lengths of 0.6693 inches and 0.5906 inches respectively provide optimal contact surfaces for load distribution. Both cone and cup have a radius of 0.0800 inches, contributing to the bearing’s tapered design that supports axial and radial loads effectively. The outside diameter measures 2.4409 inches, ensuring compatibility with a range of differential housings. The bearing width of 0.7185 inches allows for proper spacing and alignment within the driveline assembly. This part is classified under the TS type and belongs to the 30300 series, known for its ISO metric design standards.

Compatible Vehicles and Applications

The National 30305 differential pinion bearing is compatible with various makes and models, including Chevrolet D250 and D350 trucks, Dodge Challenger, Hyundai Eclipse and Sonata, Isuzu Trooper, Mitsubishi Galant and Eclipse, Nissan Pickup and 210, Plymouth Colt and Sundance, Suzuki SX4, and Volkswagen Beetle. This bearing is suitable for vehicles requiring a taper bearing assembly in the differential pinion to maintain smooth driveline operation and reduce wear.

• Eliminates excessive pinion shaft play and vibration
• Reduces differential noise caused by worn bearings
• Prevents premature wear of differential gears
• Maintains proper gear alignment under load
• Supports smooth torque transfer in off-road and highway conditions

Installation Notes and Tips

When installing the National 30305 differential pinion bearing, ensure the bearing surfaces are clean and free of debris. Proper lubrication is essential to prevent premature failure. Use the correct tools to press the bearing onto the pinion shaft without causing damage to the cone or cup. Verify the standout measurement of 0.1280 inches to maintain correct preload and gear mesh. Follow vehicle-specific service manuals for torque specifications and adjustment procedures to achieve optimal driveline performance.

Quality Assurance and Warranty

National bearings are manufactured to meet ISO metric standards, ensuring consistent quality and dimensional accuracy. The 30305 differential pinion bearing undergoes rigorous testing to comply with industry specifications for durability and performance. While specific warranty details are not provided, National products typically come with manufacturer-backed quality assurance to support reliable operation in automotive driveline applications.
