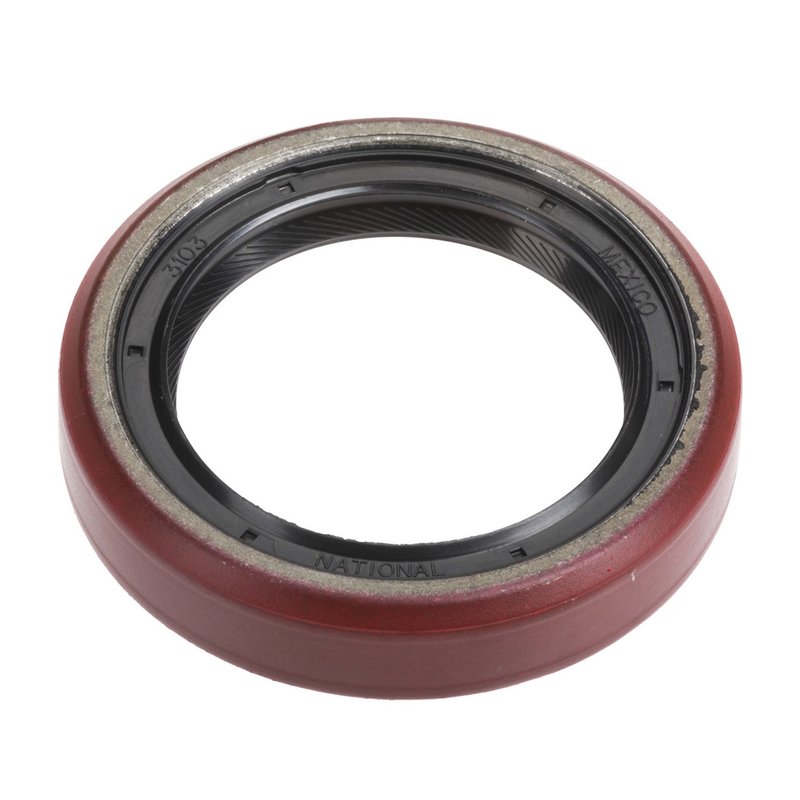

National 3103 Engine Crankshaft Seal - Front

National 3103 Engine Crankshaft Seal Overview

The National 3103 engine crankshaft seal is designed to provide reliable sealing performance for Chrysler, Dodge, and Plymouth vehicles. Engineered with precision, this oil seal helps maintain engine integrity by preventing oil leaks around the crankshaft.

• Inside diameter: 2.180 inches (55.370 mm)
• Outside diameter: 3.194 inches (81.130 mm)
• Thickness: 0.620 inches (15.750 mm)
• Material: Durable nitrile compound
• Helix type: Clockwise-spiral lip design for effective sealing
• Redicoat surface treatment for enhanced wear resistance
• Housing bore size: 3.190 inches (81.030 mm)
• Series: 3000, Type 69 oil seal

Technical Details and Material Specifications

The National 3103 crankshaft seal is constructed from nitrile, a material known for its resistance to oil, heat, and wear. Its clockwise-spiral lip design ensures a tight seal around the crankshaft, reducing the risk of oil leakage. The seal features a redicoat surface treatment that improves durability and extends service life. With an inside diameter of 2.180 inches and an outside diameter of 3.194 inches, this seal fits precisely into the housing bore of 3.190 inches, ensuring a secure fit. The thickness of 0.620 inches provides the necessary robustness to withstand engine operating conditions.

Compatible Vehicles and Applications

This engine crankshaft seal is compatible with a range of Chrysler, Dodge, and Plymouth models, including but not limited to the Dodge Ramcharger, Plymouth Duster, Chrysler LeBaron, Dodge Dakota, and Plymouth Fury. It is suitable for models such as the Dodge Charger, Dodge Challenger, Plymouth Barracuda, and Chrysler Town & Country, among others. The National 3103 seal is designed specifically for engines requiring a 2.180-inch shaft diameter and fits housing bores around 3.190 inches.

Common Issues Addressed by the National 3103 Seal

• Prevents oil leaks around the engine crankshaft
• Reduces contamination of engine oil by external debris
• Minimizes wear on the crankshaft and surrounding components
• Maintains engine oil pressure and efficiency
• Helps avoid costly engine repairs due to oil loss

Installation Notes and Tips

Ensure the crankshaft and housing bore are clean and free of debris before installation. Use appropriate tools to press the seal evenly into the housing bore without damaging the sealing lip. Verify the seal orientation matches the clockwise-spiral lip design for optimal performance. Lubricate the seal lip lightly with clean engine oil prior to installation to reduce initial wear. Check for proper fitment on Chrysler, Dodge, and Plymouth models listed to avoid compatibility issues.

Quality Assurance and Warranty

The National 3103 engine crankshaft seal is manufactured to meet industry standards for durability and performance. The nitrile material and redicoat treatment contribute to long-lasting service life under normal operating conditions. This product is part of National's 3000 series, known for consistent quality in sealing solutions. Warranty coverage details should be confirmed with the product documentation or manufacturer.
