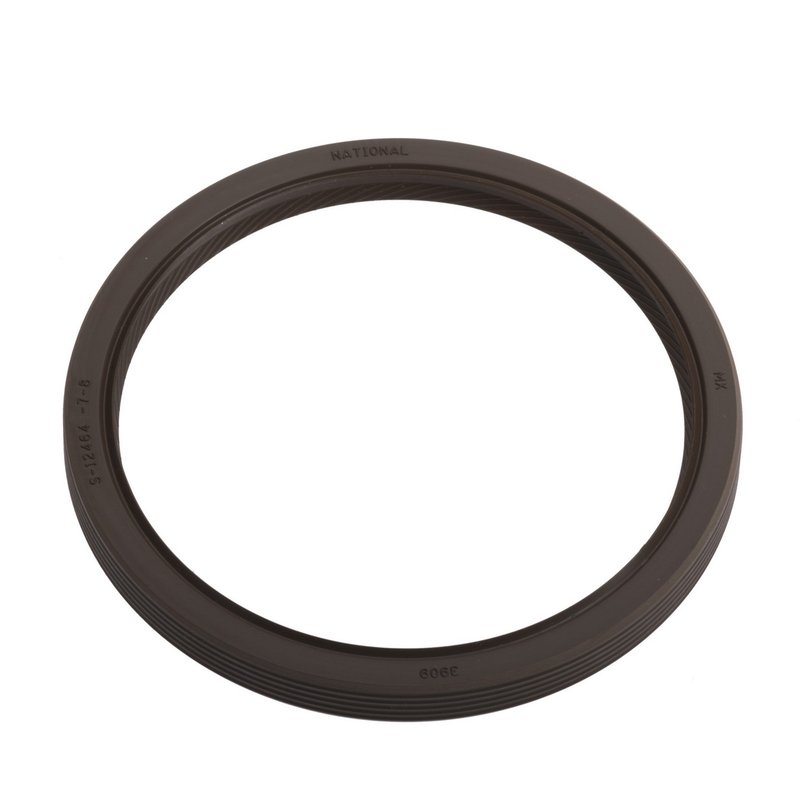

National 3909 Engine Crankshaft Seal - Rear

Overview of National 3909 Engine Crankshaft Seal

The National 3909 engine crankshaft seal is designed to provide reliable sealing performance for various vehicle models including Ford, Jaguar, Lincoln, and Aston Martin. Engineered with fluoro-elastomer material and a counter-clockwise spiral lip design, this oil seal ensures effective protection against oil leaks and contamination.

• Inside diameter: 3.625 inches (92.08 mm)
• Outside diameter: 4.256 inches (108.1 mm)
• Thickness/width: 0.390 inches (9.91 mm)
• Material: Durable fluoro-elastomer for heat and chemical resistance
• Helix type: Counter-clockwise spiral lip design for enhanced sealing
• Housing bore compatibility: 4.240 inches (107.7 mm)
• Part number: 3909, Series 3000 oil seal

Technical Details and Design Features

The National 3909 crankshaft seal is part of the Series 3000 line, known for its precision-engineered sealing components. Constructed from fluoro-elastomer, this seal offers excellent resistance to high temperatures, oils, and automotive fluids, making it suitable for demanding engine environments. The counter-clockwise spiral lip design improves sealing efficiency by directing contaminants away from the shaft, reducing wear and extending service life. With an inside diameter of 3.625 inches and an outside diameter of 4.256 inches, it fits shafts and housings with corresponding dimensions, ensuring a secure and leak-free installation.

Compatible Vehicles and Applications

This engine crankshaft seal is compatible with a range of vehicles, including models from Ford such as the F-150, Explorer, Mustang, and Crown Victoria, as well as Lincoln, Mercury, Mazda, Jaguar, and Aston Martin models like the DB7, DB9, and V12 Vantage. It is designed to replace OEM seals in these vehicles, providing a reliable solution for engine oil sealing needs.

• Prevents oil leaks from the crankshaft area
• Protects engine components from dirt and debris ingress
• Maintains engine oil pressure and cleanliness
• Reduces risk of engine damage due to seal failure
• Addresses wear and tear from prolonged engine use

Installation Notes and Tips

When installing the National 3909 crankshaft seal, ensure the shaft and housing bore are clean and free of debris. Verify the seal orientation matches the counter-clockwise spiral lip design to optimize sealing performance. Use appropriate tools to avoid damaging the seal during installation. Lubricate the seal lip lightly with engine oil before fitting to reduce initial wear. Confirm the seal dimensions match the shaft and housing specifications for a proper fit.

Quality Assurance and Warranty

National's 3909 crankshaft seal is manufactured to meet industry standards for durability and performance. The use of fluoro-elastomer material and precision design ensures consistent sealing under typical engine operating conditions. While specific warranty details are not provided, National products generally adhere to quality control processes to support reliable automotive maintenance and repair.
