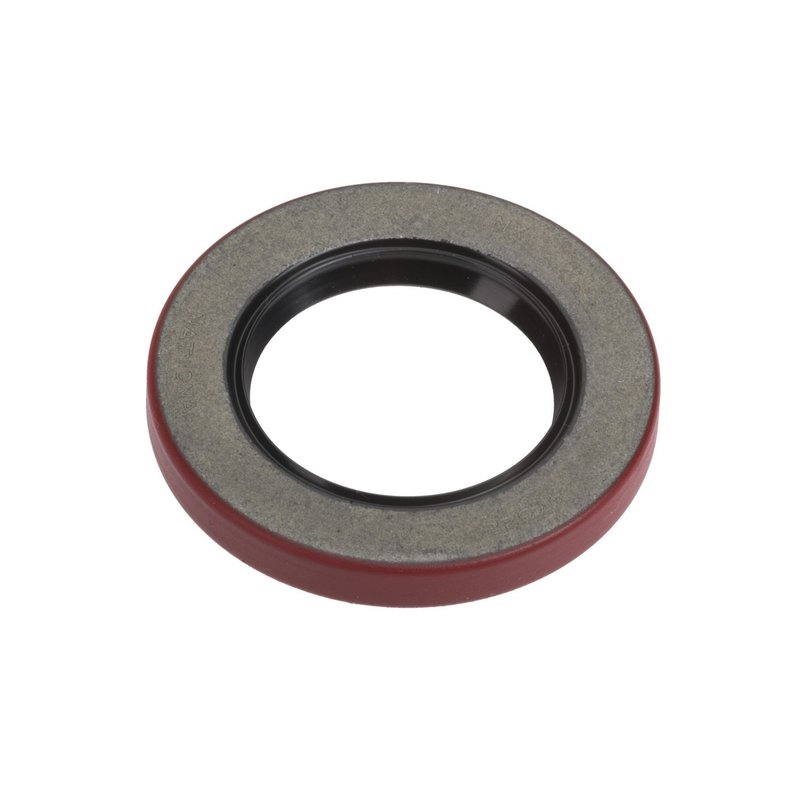

National 473229 Transfer Case Output Shaft Seal - Front, Rear or Rear Rearward

OE Quality 60-Day Returns

National 473229 Transfer Case Output Shaft Seal - Front, Rear or Rear Rearward

Brand	National 473229
Position	Front
Footnote	Zero Duplication Part
Housing Bore (Inch)	2.502
Housing Bore (MM)	63.550
Inside Diameter	1.562
Inside Diameter	39.670
Material	Nitrile
Outside Diameter	2.506
Outside Diameter	63.650
Outside Diameter (Inch)	2.506
Outside Diameter (mm)	63.650
Part Description	Oil Seal
Redicoat	Yes
Sealing Material	Nitrile
Series	470000
Shaft (Inch)	1.562
Shaft (MM)	39.670
Thickness	0.312
Thickness	7.920
Type	47
Unit of Dimension	Inch
Width (Inch)	0.312
Width (mm)	7.920
Fits	International, Jeep, and Ford · 105 vehicles

Oil seal. Nitrile construction helps maintain a reliable seal against leaks.

Redi-Coat finish. Pre-applied coating supports easier installation and a better housing fit.

Zero duplication part. A direct replacement style seal for straightforward service work.

Cross-references Bosch 15635, Bosch 15655 and Continental 49372 for the same application. See all 59.

$17.75Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Transfer Case Output Shaft Seal options

Transfer Case Output Shaft Seal for Jeep and Ford

The National 473229 transfer case output shaft seal is built for applications that need a precise seal at the transfer case output shaft. It uses nitrile sealing material and a Redicoat finish to help maintain sealing performance in demanding 4WD driveline service.

Transfer case output shaft seal for Jeep and Ford applications
Nitrile sealing material for dependable oil control
Redicoat finish
Inside diameter: 1.562 in. / 39.670 mm
Outside diameter: 2.506 in. / 63.650 mm
Thickness/width: 0.312 in. / 7.920 mm
Housing bore: 2.502 in. / 63.550 mm
Zero duplication part

Fitment Details

Compatible with 1972-1979 Jeep Cherokee, CJ5, CJ7, J10, J20, and Wagoneer applications, including front, rear, and rear rearward positions where listed. Also fits 1972-1976 Ford Bronco front applications and 1972 Jeep CJ5 and Wagoneer transfer case configurations with the specified Spicer 20 or Borg-Warner 1305 setups.

This part cross-references FEL-PRO 60536 and Four Seasons 83012 for the same application. National 473229 is also listed among interchange references for direct replacement matching.

Key Features

Designed for transfer case sealing service
Nitrile material supports oil resistance in driveline use
Dimensions listed in both inch and metric units for verification
Applies to Spicer 20 and Borg-Warner 1305 transfer case configurations shown in fitment
National 473229 reference for catalog and service matching

What This Seal Helps Address

Transfer case oil leakage at the output shaft
Fluid seepage around the housing bore
Seal wear from age and driveline use
Loss of sealing integrity on Jeep CJ5, CJ7, Cherokee, J10, J20, and Wagoneer transfer cases
Front or rear output sealing service on listed Ford Bronco and Jeep applications

Installation Notes and Tips

Verify shaft diameter, housing bore, and seal width before installation. Confirm the transfer case type and output position against the vehicle listing, especially on 1972-1979 Jeep Cherokee, CJ5, CJ7, J10, J20, and Wagoneer models and 1972-1976 Ford Bronco front applications. Clean the bore and shaft surface thoroughly before pressing the seal into place.

Quality Assurance

National has supplied sealing products for more than 75 years and continues to develop sealing solutions for modern and legacy vehicles. The 473229 seal reflects that experience with cataloged dimensions and application-specific fitment data for transfer case service.

This part fits 105 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Drive Type	Position	Notes
1979	Jeep	Cherokee	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	Cherokee	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1979	Jeep	Cherokee	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1979	Jeep	Cherokee	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	CJ5	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	CJ5	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	CJ7	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	CJ7	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	J10	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	J10	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	J20	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	J20	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	Wagoneer	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	Wagoneer	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1979	Jeep	Wagoneer	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1979	Jeep	Wagoneer	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1978	Jeep	Cherokee	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	Cherokee	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1978	Jeep	Cherokee	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1978	Jeep	Cherokee	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	CJ5	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	CJ5	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	CJ7	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	CJ7	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	J10	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	J10	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	J20	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	J20	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	Wagoneer	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	Wagoneer	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1978	Jeep	Wagoneer	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1978	Jeep	Wagoneer	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1977	Jeep	Cherokee	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	Cherokee	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1977	Jeep	Cherokee	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1977	Jeep	Cherokee	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	CJ5	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	CJ5	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	CJ7	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	CJ7	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	J10	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	J10	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	J20	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	J20	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	Wagoneer	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	Wagoneer	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1977	Jeep	Wagoneer	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1977	Jeep	Wagoneer	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1976	Ford	Bronco	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	Cherokee	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	Cherokee	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1976	Jeep	Cherokee	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1976	Jeep	Cherokee	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	CJ5	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	CJ5	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	CJ7	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	CJ7	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	J10	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	J10	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	J20	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	J20	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	Wagoneer	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	Wagoneer	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1976	Jeep	Wagoneer	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1976	Jeep	Wagoneer	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1975	Ford	Bronco	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	Cherokee	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	Cherokee	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1975	Jeep	Cherokee	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1975	Jeep	Cherokee	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	CJ5	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	CJ5	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	J10	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	J10	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	J20	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	J20	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	Wagoneer	4WD	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	Wagoneer	4WD	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1975	Jeep	Wagoneer	4WD	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1975	Jeep	Wagoneer	4WD	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1974	Ford	Bronco	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	Cherokee	—	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1974	Jeep	Cherokee	—	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1974	Jeep	Cherokee	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	Cherokee	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	CJ5	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	CJ5	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	J10	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	J10	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	J20	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	J20	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	Wagoneer	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1974	Jeep	Wagoneer	—	Rear	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1974	Jeep	Wagoneer	—	Front	Full Time 4WD; with Borg-Warner 1305 Transfer Case; 2 Speed
1974	Jeep	Wagoneer	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1973	Ford	Bronco	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1973	Jeep	CJ5	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1973	Jeep	CJ5	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1973	Jeep	Wagoneer	—	Rear Rearward	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1973	Jeep	Wagoneer	—	Front	Fits Spicer 20 Transfer Case with Part Time 4WD and 2 Speed configuration.
1972	Ford	Bronco	—	Front	2nd Design; with 0.312 (in) Width; with Spicer 20 Transfer Case; with Part Time 4WD; 2.506 (in) Outside Diameter; 2 Speed
1972	Jeep	CJ5	—	Front	2nd Design; with 0.312 (in) Width; with Spicer 20 Transfer Case; with Part Time 4WD; 2.506 (in) Outside Diameter; 2 Speed
1972	Jeep	CJ5	—	Rear Rearward	2nd Design; with 0.312 (in) Width; with Spicer 20 Transfer Case; with Part Time 4WD; 2.506 (in) Outside Diameter; 2 Speed
1972	Jeep	Wagoneer	—	Rear Rearward	2nd Design; with 0.312 (in) Width; with Spicer 20 Transfer Case; with Part Time 4WD; 2.506 (in) Outside Diameter; 2 Speed
1972	Jeep	Wagoneer	—	Front	2nd Design; with 0.312 (in) Width; with Spicer 20 Transfer Case; with Part Time 4WD; 2.506 (in) Outside Diameter; 2 Speed
No rows match your filter.

Directly replaces or cross-references 59 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Bosch — 15635Bosch — 15655Continental — 49372Eastern Catalytic — 40638Eastern Catalytic — 50391FEL-PRO — 60536Four Seasons — 83012National — 473229Nissens — 1011811CA605364M91495M97378B892528P860704-77590704-F7752983734968469964699760432114109118250143620165035194054209557M1214706293145334728502276624632624632-57849113975731812307715527579A-1805-Q-199A1805Q-199A60536AL2095TC6TZ7B215ADD16B16FG0056GP7770AJ2110J8123077M417TDN128P24149PR1031PR1772PR1773PR1779PR3868QX72410RP5087T1423T9455
