Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

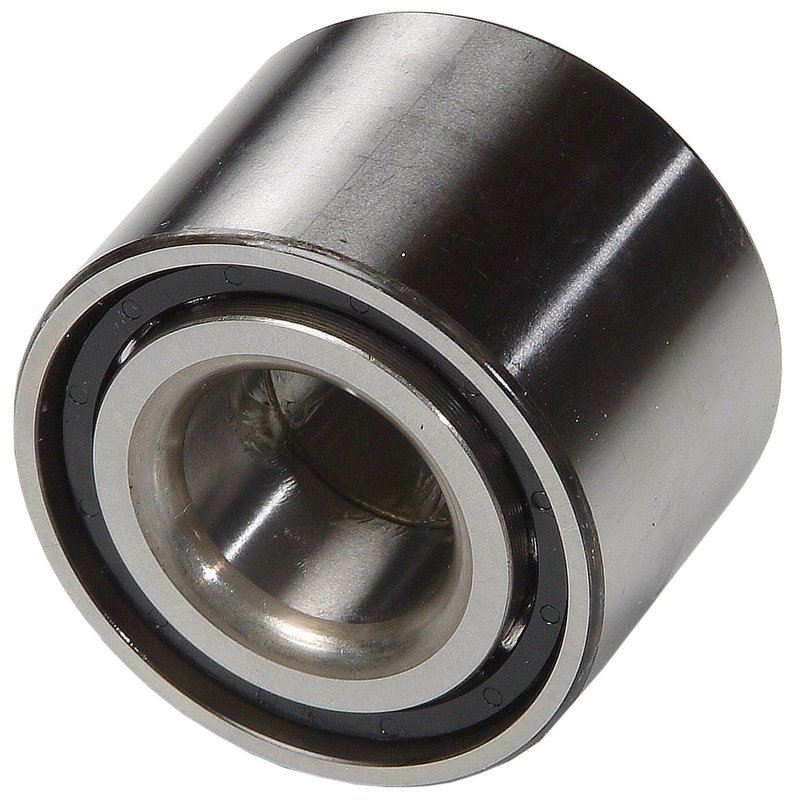

National 513031 Wheel Bearing - Front or Rear
| Brand | National 513031 |
|---|---|
| Position | Rear and Front |
| Bore (Inch) | 1.102 |
| Bore (mm) | 28.000 |
| Design | Double row angular contact |
| Footnote | Gen1 |
| Inner Race Bore (Inch) | 1.102 |
| Inner Race Bore (MM) | 28.000 |
| Inner Race Radius (Inch) | 0.146 |
| Inner Race Radius (MM) | 3.700 |
| Inner Race Width (Inch) | 1.654 |
| Inner Race Width (MM) | 42.000 |
| Outer Race Outside Diameter (Inch) | 2.402 |
| Outer Race Outside Diameter (MM) | 61.000 |
| Outer Race Radius (Inch) | 0.028 |
| Outer Race Radius (MM) | 0.700 |
| Outer Race Width (Inch) | 1.654 |
| Outer Race Width (MM) | 42.000 |
| Outside Diameter (Inch) | 2.402 |
| Outside Diameter (mm) | 61.000 |
| Part Description | Wheel bearing |
| Series | Rwdb |
| Type | E-3 |
| Width (Inch) | 1.654 |
| Width (mm) | 42.000 |
| Fits | Chevrolet, Geo, and Toyota · 26 vehicles |
OE-quality replacement. Built to meet or exceed original equipment standards.
Double row design. Angular contact construction supports stable load handling.
Extended service life. Manufactured to exacting standards for lasting performance.
Cross-references Gates 27314, National 513031 and Quality-Built WH513031 for the same application. See all 21.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Wheel Bearing for Select Toyota and Geo Applications
National 513031 is a wheel bearing built to meet or exceed OE quality standards. It uses a double row angular contact design for stable load handling and consistent operation in demanding driveline applications.
- Double row angular contact construction for balanced load support.
- Premium-quality bearing manufactured to exacting standards.
- Designed for lasting performance and extended bearing life.
- Fits 1984-1992 Toyota Corolla, rear.
- Fits 1985-1989 Toyota MR2, front.
- Fits 1984-1987 Toyota Tercel, rear.
- Fits 1985-1988 Chevrolet Nova, rear.
- Fits 1989-1992 Geo Prizm, rear.
Detailed Application Coverage
This National wheel bearing, part number 513031, is a direct replacement option for select Toyota Corolla, Toyota MR2, Toyota Tercel, Chevrolet Nova, and Geo Prizm applications. The RWDB series bearing is engineered to the dimensional and performance requirements needed for proper wheel support, with a 28 mm bore, 61 mm outside diameter, and 42 mm width.
Common Replacement Issues
- Wheel noise or growling from a worn bearing.
- Excessive play or looseness at the wheel hub.
- Rough rotation caused by bearing wear or contamination.
- Vibration related to degraded bearing surfaces.
Installation Notes and Tips
Verify the vehicle year, make, model, and axle position before ordering. Confirm bore, outside diameter, and width against the original bearing to ensure proper match. Professional installation is recommended for wheel bearing service, and the hub assembly should be inspected for wear or damage during replacement.
Quality Assurance
National manufactures this bearing to exacting standards to deliver OE-level quality, consistent performance, and extended service life. Part number 513031 is cross-referenced to SKF GRW141 for the same application.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Geo | Prizm | — | — | Rear | — |
| 1992 | Toyota | Corolla | — | FWD | Rear | — |
| 1991 | Geo | Prizm | — | — | Rear | — |
| 1991 | Toyota | Corolla | — | FWD | Rear | — |
| 1990 | Geo | Prizm | — | — | Rear | — |
| 1990 | Toyota | Corolla | — | FWD | Rear | — |
| 1989 | Geo | Prizm | — | — | Rear | — |
| 1989 | Toyota | Corolla | — | FWD | Rear | — |
| 1989 | Toyota | MR2 | — | — | Front | — |
| 1988 | Chevrolet | Nova | — | — | Rear | — |
| 1988 | Toyota | Corolla | — | FWD | Rear | — |
| 1988 | Toyota | MR2 | — | — | Front | — |
| 1987 | Chevrolet | Nova | — | — | Rear | — |
| 1987 | Toyota | Corolla | — | FWD | Rear | — |
| 1987 | Toyota | MR2 | — | — | Front | — |
| 1987 | Toyota | Tercel | Wagon | FWD | Rear | — |
| 1986 | Chevrolet | Nova | — | — | Rear | — |
| 1986 | Toyota | Corolla | — | FWD | Rear | — |
| 1986 | Toyota | MR2 | — | — | Front | — |
| 1986 | Toyota | Tercel | Wagon | FWD | Rear | — |
| 1985 | Chevrolet | Nova | — | — | Rear | — |
| 1985 | Toyota | Corolla | — | FWD | Rear | — |
| 1985 | Toyota | MR2 | — | — | Front | — |
| 1985 | Toyota | Tercel | Wagon | FWD | Rear | — |
| 1984 | Toyota | Corolla | — | FWD | Rear | — |
| 1984 | Toyota | Tercel | Wagon | FWD | Rear | — |
