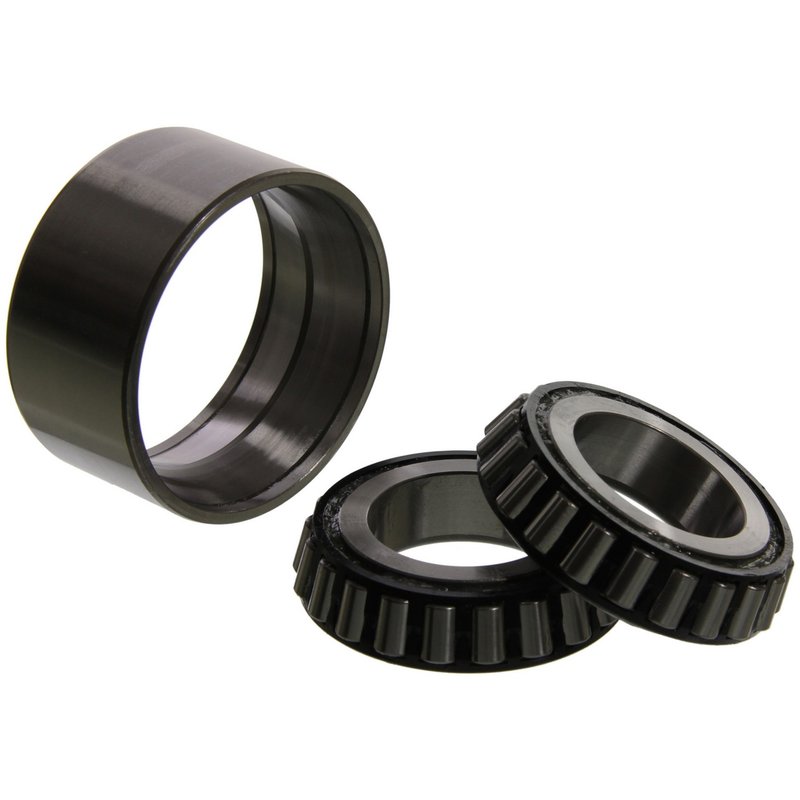

National 513246 Wheel Bearing and Race Set - Rear
| Brand | National 513246 |
|---|---|
| Position | Rear |
| Bore (Inch) | 1.5748 |
| Bore (mm) | 40.0000 |
| Cone Length (Inch) | 1.4961 |
| Cone Length (MM) | 38.0000 |
| Cone Radius (Inch) | 0.1732 |
| Cone Radius (MM) | 4.4000 |
| Cup Length (Inch) | 1.4961 |
| Cup Length (MM) | 38.0000 |
| Cup Radius (Inch) | 0.0591 |
| Cup Radius (MM) | 1.5000 |
| Design | Gen1 |
| Outside Diameter (Inch) | 3.1496 |
| Outside Diameter (mm) | 80.0000 |
| Part Description | Wheel bearing |
| Series | 513000 |
| Width (Inch) | 1.4961 |
| Width (mm) | 38.0000 |
| Fits | Nissan · 20 vehicles |
Premium-grade steel. Built for durable wheel bearing performance.
Crowned raceways and rollers. Promote even load distribution for smoother operation.
Wheel bearing set. A complete bearing and race assembly for replacement service.
Cross-references National 513246, SKF GRW170 and 38-00529 for the same application. See all 8.
Wheel Bearing Set for Nissan Rear Applications
The National 513246 wheel bearing and race set is built for rear wheel service on select Nissan Frontier, Xterra, and Pathfinder models. It uses premium-grade steel with crowned raceways and rollers to promote even load distribution across the bearing surfaces.
Key Features
- Wheel bearing and race set for rear hub service
- Premium-grade steel construction
- Crowned raceways and rollers for even load distribution
- GEN1 design
- Outside diameter: 3.1496 in. / 80.0000 mm
- Bore: 1.5748 in. / 40.0000 mm
- Width: 1.4961 in. / 38.0000 mm
- National part number 513246
Detailed Description
National 513246 is a rear wheel bearing and race set engineered for Nissan driveline and axle service. The bearing set follows the 513000 series and is specified with a 40.0000 mm bore, 80.0000 mm outside diameter, and 38.0000 mm width, making it a direct-match service part for the listed rear applications. This part cross-references SKF GRW170 for the same application.
Compatible With 1998-2004 Nissan Frontier, rear; 2000-2004 Nissan Xterra, rear; and 1988-1995 Nissan Pathfinder, rear. Use National 513246 when replacing a worn rear wheel bearing on these Nissan models and when matching the GEN1 bearing design and dimensional specifications.
What It Helps Address
- Rear wheel bearing noise
- Rough or uneven wheel rotation
- Excessive bearing play at the hub
- Wear-related vibration from the rear axle area
- Service replacement for a damaged bearing and race assembly
Installation Notes and Tips
Verify bore, outside diameter, width, and race dimensions before installation. Clean the hub and mating surfaces thoroughly, inspect the spindle and related components for wear, and follow the vehicle service manual for bearing preload and torque procedures. Confirm rear-position application before ordering.
Quality Assurance
National manufactures this bearing set with premium-grade steel and crowned race geometry to support consistent load distribution during operation. Part number 513246 is built to the listed dimensional specifications for the confirmed Nissan rear fitments.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Nissan | Frontier | 2.4L | L4 | Rear | — |
| 2004 | Nissan | Xterra | 2.4L | L4 | Rear | — |
| 2003 | Nissan | Frontier | 2.4L | L4 | Rear | — |
| 2003 | Nissan | Xterra | 2.4L | L4 | Rear | — |
| 2002 | Nissan | Frontier | 2.4L | L4 | Rear | — |
| 2002 | Nissan | Xterra | 2.4L | L4 | Rear | — |
| 2001 | Nissan | Frontier | 2.4L | L4 | Rear | — |
| 2001 | Nissan | Xterra | 2.4L | L4 | Rear | — |
| 2000 | Nissan | Frontier | 2.4L | L4 | Rear | — |
| 2000 | Nissan | Xterra | 2.4L | L4 | Rear | — |
| 1999 | Nissan | Frontier | — | — | Rear | — |
| 1998 | Nissan | Frontier | — | — | Rear | — |
| 1995 | Nissan | Pathfinder | — | — | Rear | — |
| 1994 | Nissan | Pathfinder | — | — | Rear | — |
| 1993 | Nissan | Pathfinder | — | — | Rear | — |
| 1992 | Nissan | Pathfinder | — | — | Rear | — |
| 1991 | Nissan | Pathfinder | — | — | Rear | — |
| 1990 | Nissan | Pathfinder | — | — | Rear | — |
| 1989 | Nissan | Pathfinder | — | — | Rear | — |
| 1988 | Nissan | Pathfinder | — | — | Rear | — |
