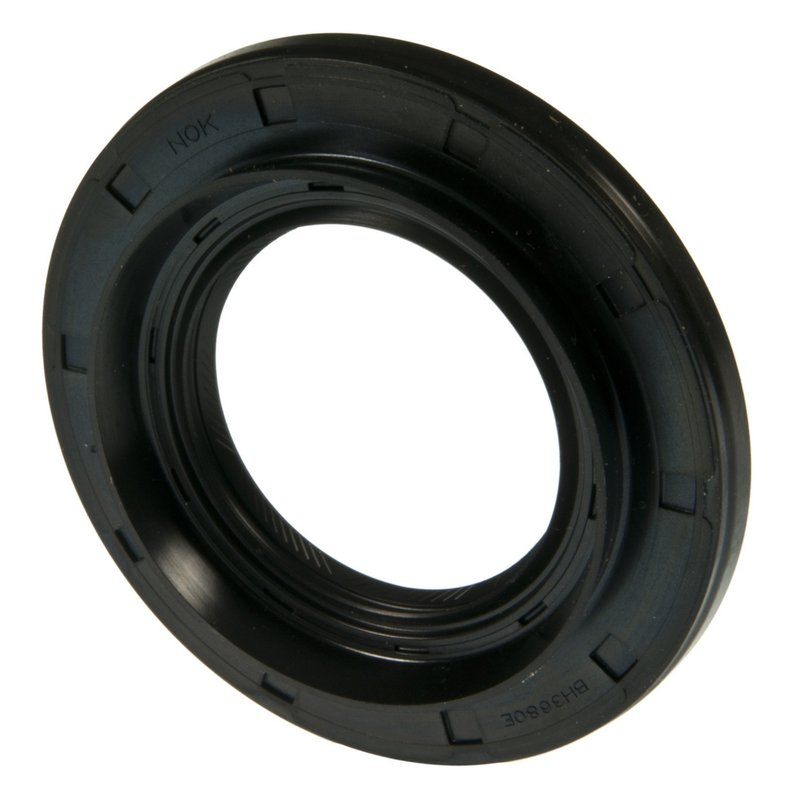

National 710115 Manual Transmission Output Shaft Seal - Left

Overview of National 710115 Manual Transmission Output Shaft Seal

The National 710115 manual transmission output shaft seal is engineered for reliable sealing performance in Toyota vehicles, including the Camry, Corolla, and RAV4. Designed to maintain transmission fluid integrity, this oil seal helps prevent leaks and protects your transmission components.

• Inside diameter: 1.732 inches (44.000 mm)
• Outside diameter: 3.154 inches (80.120 mm)
• Thickness: 0.354 inches (9.000 mm)
• Sealing material: Nitrile for durability and resistance
• Bi-directional lip design for effective sealing under varying conditions
• Overall width with side lip: 0.591 inches (15.000 mm)
• Compatible with Toyota Camry, Corolla, and RAV4 manual transmissions

Technical Details and Material Specifications

This manual transmission output shaft seal from National is constructed from nitrile, a material known for its resistance to oil, heat, and wear. The seal features a bi-directional lip design, which enhances its ability to prevent fluid leakage in both rotational directions. With an inside diameter of 1.732 inches (44 mm) and an outside diameter of 3.154 inches (80.120 mm), it fits precisely within the housing bore of 3.150 inches (80 mm). The thickness of 0.354 inches (9 mm) and overall width including the side lip of 0.591 inches (15 mm) ensure a secure fit and effective sealing performance in manual transmission assemblies.

Applications and Problem Solving

This National 710115 output shaft seal is specifically compatible with Toyota Camry, Corolla, and RAV4 models equipped with manual transmissions. It is designed to address common transmission issues such as:

• Preventing transmission fluid leaks from the output shaft area
• Reducing contamination ingress into the transmission system
• Maintaining proper lubrication for transmission components
• Minimizing wear on the output shaft and surrounding parts
• Ensuring consistent transmission performance and longevity

Installation Notes and Tips

When installing the National 710115 output shaft seal, ensure the following for optimal performance:

• Clean the housing bore and output shaft thoroughly before installation
• Inspect the shaft for any wear or damage that could affect sealing
• Use appropriate tools to press the seal evenly into the housing bore without distortion
• Verify the seal’s orientation matches the bi-directional lip design for correct sealing
• Check for proper fitment with the Toyota Camry, Corolla, or RAV4 manual transmission model

Quality Assurance and Warranty

National manufactures the 710115 output shaft seal to meet industry standards for durability and performance. The use of nitrile material and precise engineering ensures reliable sealing under typical operating conditions. While specific warranty details are not provided, National products generally adhere to quality control processes to support consistent product reliability.
