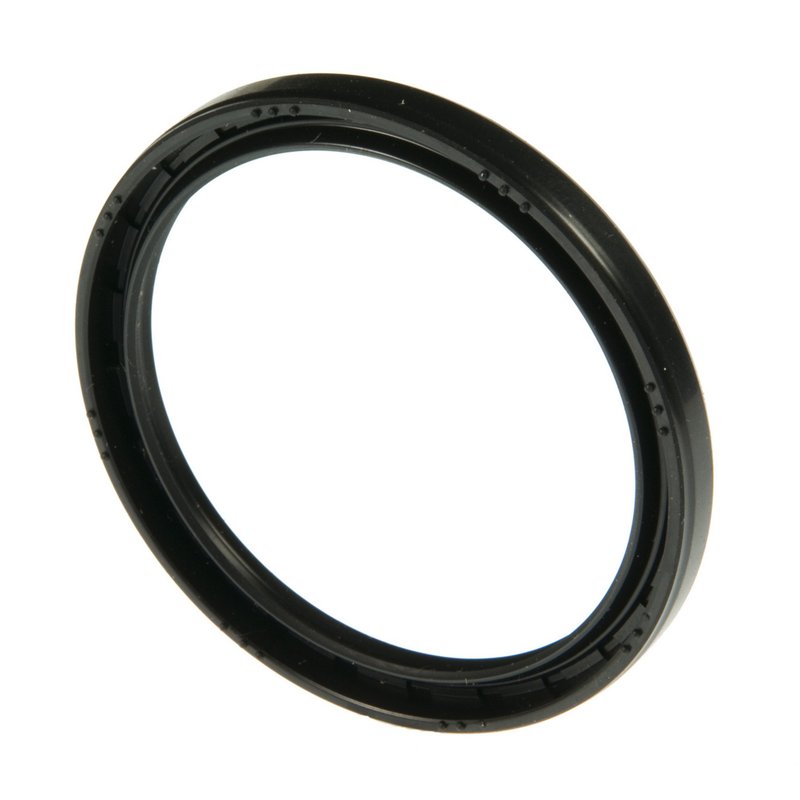

National 710192 Wheel Seal - Front Outer

Wheel Seal for Front Outer Applications

The National 710192 wheel seal is a metric oil seal built for front outer driveline and axle service. It uses nitrile construction and precise dimensions to support a secure seal at the shaft and housing bore.

Compatible with select Geo Storm and Isuzu Impulse and Stylus front outer applications, this National 710192 seal is sized for metric service and OE-style replacement needs.

Key Features

• Part number: National 710192
• Wheel seal / oil seal for driveline and axle sealing systems
• Nitrile material for sealing performance in automotive service
• Metric dimensions for accurate fitment
• Inside diameter: 1.969 in. / 50.000 mm
• Outside diameter: 2.372 in. / 60.250 mm
• Housing bore: 2.362 in. / 60.000 mm
• Width: 0.236 in. / 6.000 mm
• Type 32 design, Series 710100

Detailed Description

National 710192 is a front outer wheel seal engineered around metric sizing and nitrile sealing material. The seal measures 1.969 inches inside diameter, 2.372 inches outside diameter, and 0.236 inches wide, with a 2.362-inch housing bore requirement. These dimensions help support proper seating in the hub or housing during axle and wheel-end service.

National has supplied sealing solutions for more than 75 years, and this seal reflects that focus on fit, material selection, and dimensional accuracy. This part cross-references Centric Parts 417.43007 for the same application.

What It Helps Address

• Oil leakage at the wheel-end seal area
• Contamination entering the hub or axle sealing surface
• Wear-related seal failure during front outer service
• Improper sealing from incorrect metric sizing
• Service issues on Geo Storm, Isuzu Impulse, and Isuzu Stylus front outer applications

Installation Notes and Tips

• Verify shaft diameter, housing bore, and seal width before installation.
• Inspect the sealing surface for grooves, corrosion, or damage before fitting the new seal.
• Clean the bore and shaft area thoroughly to support proper seating.
• Use care during installation to avoid distorting the nitrile sealing lip.
• Confirm vehicle position and application details for 1990-1993 Geo Storm, 1990-1992 Isuzu Impulse, and 1991-1993 Isuzu Stylus front outer service.

Quality Assurance

National is a long-established sealing brand with a history of developing sealing components for modern vehicles. Part number 710192 is built to metric specifications and backed by National’s sealing-focused product engineering.
