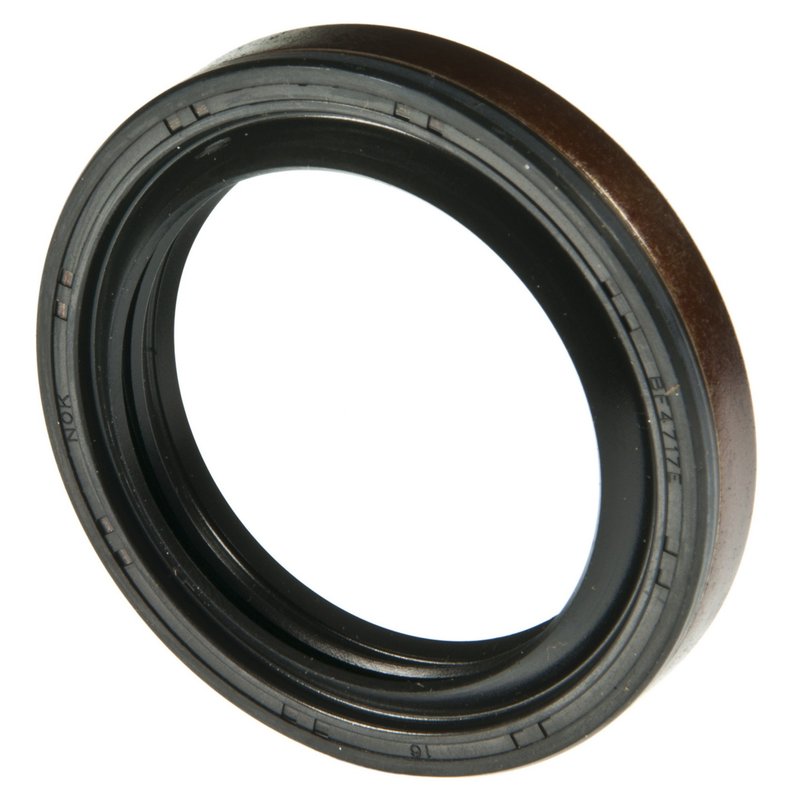

National 710300 CV Axle Shaft Seal - Outer

National 710300 CV Axle Shaft Seal Overview

The National 710300 CV Axle Shaft Seal is engineered to provide reliable sealing performance for driveline components. Designed specifically for select Acura, Honda, and Isuzu models, this oil seal helps maintain proper lubrication and prevent contamination in the axle assembly.

• Inside diameter: 1.575 inches (40.000 mm)
• Outside diameter: approximately 2.173 to 2.193 inches (55.200 to 55.700 mm)
• Thickness: 0.354 inches (9.000 mm)
• Overall width with side lip: 0.413 inches (10.500 mm)
• Sealing material: durable nitrile rubber
• Housing bore size: 2.185 inches (55.500 mm)

Technical Details and Material Specifications

This CV axle shaft seal is constructed from nitrile, a material known for its resistance to oil, heat, and wear, making it suitable for demanding automotive environments. The precise dimensions, including a 1.575-inch inside diameter and an outside diameter close to 2.19 inches, ensure a secure fit within the axle housing bore of 2.185 inches. The 0.354-inch thickness and 0.413-inch overall width with side lip provide effective sealing to prevent oil leaks and protect the CV joint from dirt and debris.

Compatible Vehicles and Applications

The National 710300 seal is compatible with a range of Acura, Honda, and Isuzu vehicles, including popular models such as the Honda Accord, Civic, Civic del Sol, CL, CR-V, EL, Integra, Odyssey, Prelude, and the Isuzu Oasis. This part number is specifically designed to meet the sealing requirements of these driveline systems, ensuring proper fit and function.

Common Issues Addressed by the CV Axle Shaft Seal

• Prevents oil leaks from the CV axle housing
• Protects CV joints from dirt, water, and contaminants
• Reduces premature wear of driveline components
• Maintains proper lubrication within the axle assembly
• Helps avoid costly repairs related to seal failure

Installation Notes and Tips

When installing the National 710300 CV axle shaft seal, ensure the sealing surface and housing bore are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the nitrile material. Verify the correct orientation of the seal lip to maintain optimal sealing performance. It is recommended to inspect the CV joint and axle shaft for wear during installation and replace any damaged components as needed.

Quality Assurance and Warranty Information

National manufactures the 710300 CV axle shaft seal to meet industry standards for durability and performance. The use of nitrile material provides resistance to oil and heat, contributing to a longer service life. This part is backed by National's quality assurance processes, ensuring consistent fit and function for Acura, Honda, and Isuzu driveline applications. Warranty coverage details should be confirmed with the original equipment provider or distributor.
