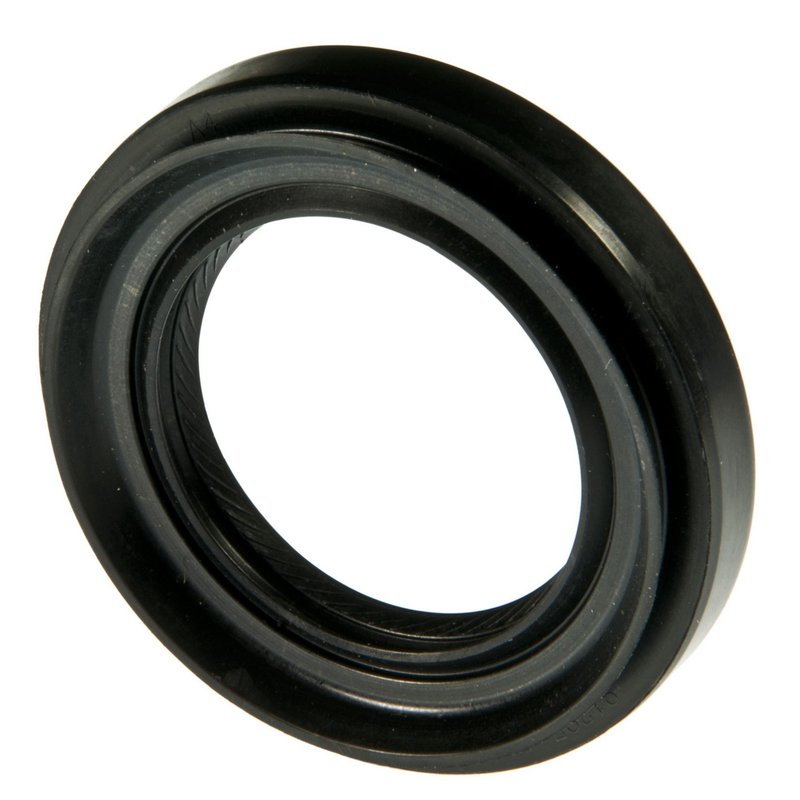

National 710314 Automatic Transmission Output Shaft Seal - Left

Automatic Transmission Output Shaft Seal for Honda and Acura

National 710314 is an automatic transmission output shaft seal built for metric applications that require a precise sealing fit. It uses a polyacrylate sealing material and a counter-clockwise spiral lip design to help maintain transmission fluid control at the output shaft.

With confirmed coverage for Honda Civic, Acura Integra, Honda CR-V, Honda Prelude, and other Honda and Acura left-side applications, this seal is a direct-fit service part for a wide range of manual and automatic transmission service needs. National 710314 is also referenced by OE and aftermarket numbers used in the same applications.

Key Features

• Automatic transmission output shaft seal for left-side applications
• Polyacrylate construction for sealing performance in transmission service
• Counter-clockwise spiral lip design
• Metric dimensions: 35.000 mm shaft size, 56.200 mm outside diameter, 8.000 mm width
• Housing bore: 56.000 mm
• Part number: 710314
• Cross-reference part numbers include Beck/Arnley 052-3516 and Bosch 67045

Detailed Description

National 710314 is an oil seal designed for transmission output shaft sealing where the shaft diameter, housing bore, and seal width must match exact service specifications. The seal measures 35.000 mm inside diameter, 56.200 mm outside diameter, and 8.000 mm width, with an overall width of 11.500 mm including the side lip. Its counter-clockwise spiral lip design supports proper sealing orientation in the listed applications.

This part is used across multiple Honda and Acura platforms, including 1992-2014 Honda Civic, 1994-2001 Acura Integra, 1997-2001 Honda CR-V, 1997-2001 Honda Prelude, 2007-2008 Honda Fit, and 2010-2011 Acura CSX. It also covers several older Honda Civic and Accord transmission applications. If you are servicing a Honda Civic or Acura Integra transmission and need the correct output shaft seal, National 710314 provides the specified metric fitment.

What This Seal Helps Address

• Transmission fluid leaking from the output shaft area
• Fluid seepage around the shaft seal during service
• Seal wear from age, heat, and transmission fluid exposure
• Improper sealing after transmission maintenance
• Noise or contamination concerns caused by a compromised seal

Installation Notes and Tips

Verify shaft diameter, housing bore, and seal orientation before installation. The listed fitment includes left-side applications, so confirm the transmission side and model-specific notes, especially on vehicles with transmission codes such as Honda SLXA, BMXA, S4RA, B4RA, M4RA, B46A, AM-1, AK2, AD, AE, AF, AB, and AC. Clean the bore and shaft surface thoroughly, and inspect for wear or scoring that could affect sealing performance.

Fits 1992-2014 Honda Civic, left; 2010-2011 Acura CSX, left; 2007-2008 Honda Fit, left; 2001-2006 Honda Insight, left; 2002-2005 Acura EL, left with 4-Speed Honda SLXA Transmission; 2001-2005 Acura EL, left with 4-Speed Honda BMXA Transmission; 1994-2001 Acura Integra, left; 1997-2001 Honda CR-V, left; 1997-2001 Honda Prelude, left; 2000 Acura EL, left with 4-Speed Honda S4RA Transmission; 1997-2000 Acura EL, left with 4-Speed Honda B4RA Transmission; 1997-1999 Acura EL, left with 4-Speed Honda M4RA Transmission; 1998-1999 Acura EL, left with 4-Speed Honda B46A Transmission; 1993-1997 Honda Civic del Sol, left; 1980 Honda Civic, left with Honda AM-1 Transmission; 1979 Honda Accord, left with Honda AK2 Transmission; 1976-1979 Honda Civic, left with Honda AD Transmission; 1977-1979 Honda Civic, left with Honda AE Transmission; 1976-1978 Honda Accord, left with Honda AF Transmission; 1973-1977 Honda Civic, left with Honda AB Transmission; 1975 Honda Civic, left with Honda AC Transmission.

Quality Assurance

National has supplied sealing solutions for more than 75 years and continues to develop sealing components for modern vehicle service needs. Part number 710314 is built to meet the dimensional and application requirements listed for Honda and Acura transmission service.
