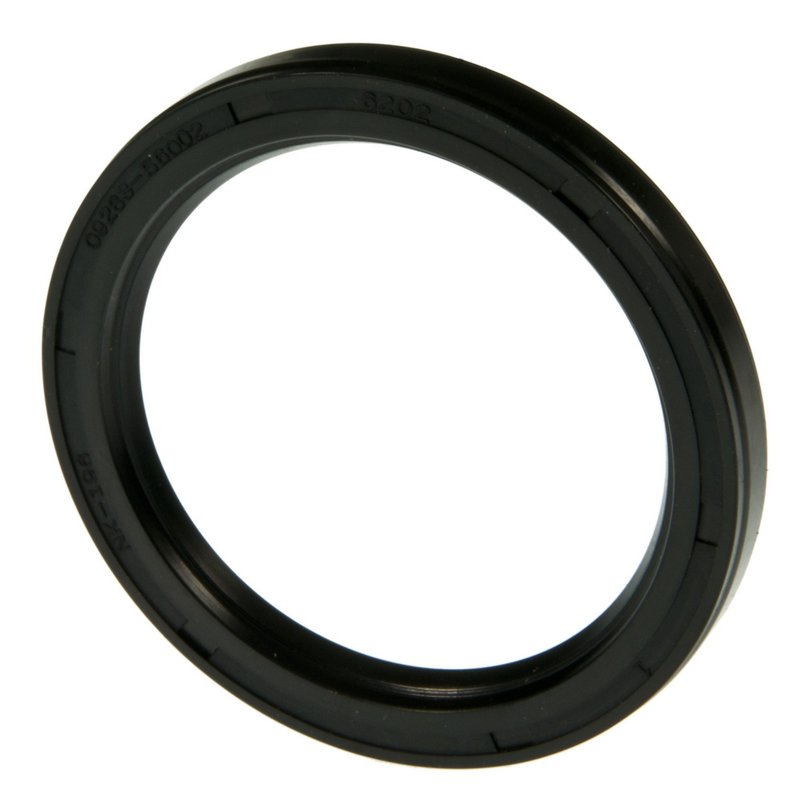

National 710393 Wheel Seal - Front Outer

National 710393 Wheel Seal for Suzuki Front Outer Applications

National 710393 is a metric wheel seal built for front outer service on select Suzuki vehicles. It uses nitrile sealing material and OE-style dimensions to support a precise housing fit and shaft seal interface.

Key Features

• Part number: 710393
• Wheel seal / oil seal design for driveline and axle sealing service
• Nitrile material for sealing performance in automotive applications
• Inside diameter: 2.205 in. / 56.0 mm
• Outside diameter: 2.843 in. / 72.2 mm
• Housing bore: 2.835 in. / 72.0 mm
• Width: 0.315 in. / 8.0 mm
• Overall width with side lip: 0.394 in. / 10.0 mm
• Metric unit of dimension for accurate replacement matching

Detailed Description

National 710393 is a front outer wheel seal engineered around metric dimensions for a direct-fit replacement on select Suzuki Esteem and Suzuki Swift models. The seal’s 56 mm shaft diameter, 72.2 mm outside diameter, and 72.0 mm housing bore help support proper seating and sealing at the wheel end of the driveline. National has supplied sealing products for more than 75 years, and this seal reflects that focus on dimensional accuracy and modern vehicle sealing requirements. This part cross-references Beck/Arnley 052-3704 and Gates 22024 for the same application.

Compatible With 1995-2002 Suzuki Esteem, front outer, and 1989-2001 Suzuki Swift, front outer. If you are replacing a leaking or worn wheel seal on a Suzuki Esteem or Suzuki Swift, National 710393 provides the specified metric sizing needed for the repair.

What This Wheel Seal Helps Address

• Gear oil seepage at the wheel end of the axle
• Contamination entering the hub or bearing area
• Seal wear from age, heat, and mileage
• Loss of sealing integrity caused by incorrect dimensions
• Noise or service issues related to a compromised outer wheel seal

Installation Notes and Tips

Verify shaft diameter, housing bore, and width before installation to confirm the seal matches the original specification. Inspect the sealing surface for scoring, corrosion, or debris before pressing the seal into place. Clean the bore thoroughly and install the seal squarely to avoid distortion of the nitrile lip. Confirm the application is front outer before ordering, since fitment is specific to the listed Suzuki Esteem and Suzuki Swift configurations.

Quality Assurance

National is a long-established sealing brand with a focus on replacement seals for automotive driveline service. Part number 710393 is built to the listed metric dimensions and material specification for consistent replacement fitment.
