OE Quality
60-Day Returns

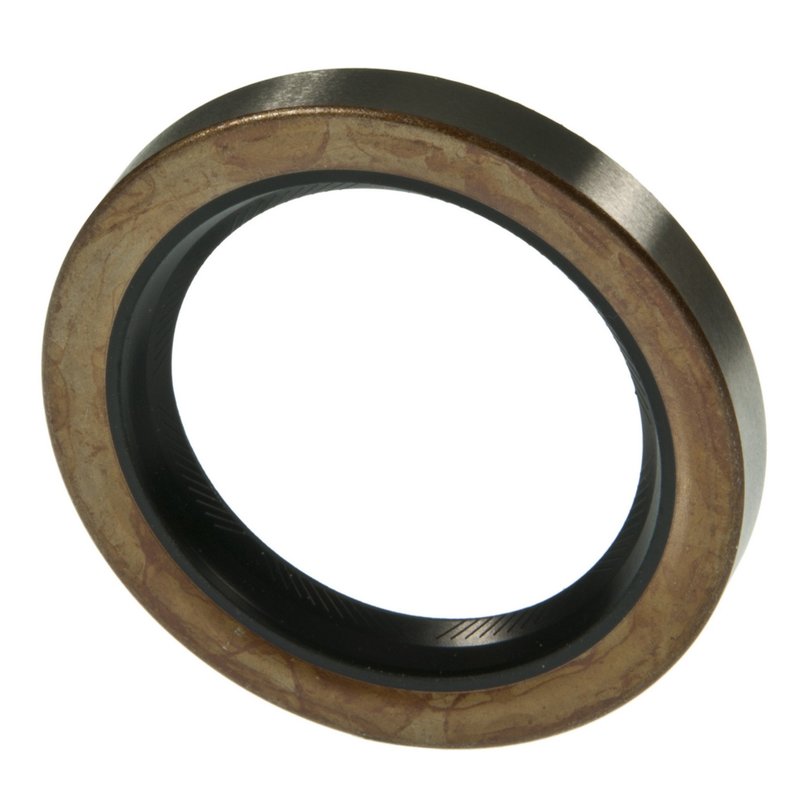

National 710649 Wheel Seal - Rear Inner
Wheel Seal for Toyota Rear Inner Applications
The National 710649 wheel seal is a metric oil seal built for rear inner use on select Toyota trucks and SUVs. It is sized for a 50.000 mm shaft and a 70.000 mm housing bore, with a bi-directional lip design that helps maintain sealing performance in rotating driveline applications.
Fits 2000-2006 Toyota Tundra, rear inner. Fits 2000-2004 Toyota Tacoma, rear inner. Fits 2001-2002 Toyota 4Runner, rear inner.
Key Features
- National part number 710649
- Metric oil seal / wheel seal construction
- Bi-directional lip design for sealing in either rotation direction
- Polyacrylate material for sealing durability
- Inside diameter: 1.969 in / 50.000 mm
- Outside diameter: 2.756 in / 70.230 mm
- Housing bore: 2.765 in / 70.000 mm
- Width: 0.354 in / 9.000 mm
Detailed Description
National 710649 is a metric wheel seal in the 710600 series, engineered for rear inner positions on Toyota Tundra, Tacoma, and 4Runner applications listed above. The seal uses a polyacrylate sealing element and a bi-directional lip profile to support consistent contact at the shaft interface. Its dimensions are matched to the specified 50 mm shaft and 70 mm housing bore, making it a direct-fit sealing component for the confirmed applications. This part cross-references Beck/Arnley 052-2086 for the same application.
What This Seal Helps Address
- Gear oil leakage at the rear inner wheel seal area
- Contamination entering the hub or axle sealing surface
- Seal wear from heat, rotation, and age
- Moisture intrusion around the axle seal interface
- Loss of sealing integrity on Toyota rear axle service work
Installation Notes and Tips
Verify shaft diameter, housing bore, and seal orientation before installation. Clean the sealing surface and inspect the axle or hub for grooves, corrosion, or damage that can affect seal life. Confirm the rear inner position on the vehicle and match the seal dimensions to the service specification before assembly.
Quality Assurance
National has supplied sealing solutions for more than 75 years and applies ongoing design development to support modern vehicle service requirements. The 710649 is part of that sealing lineup and is built to meet the dimensional and material demands of the listed Toyota applications.
| Brand | National |
|---|---|
| Part Number | 710649 |
| Helix Type | Bi-Directional Lip Design |
| Housing Bore (Inch) | 2.765 |
| Housing Bore (MM) | 70.000 |
| Inside Diameter | 1.969 |
| Inside Diameter | 50.000 |
| Material | Polyacrylate |
| Outside Diameter | 2.756 |
| Outside Diameter | 70.230 |
| Outside Diameter (Inch) | 2.756 |
| Outside Diameter (mm) | 70.230 |
| Part Description | Oil Seal |
| Series | 710600 |
| Shaft (Inch) | 1.969 |
| Shaft (MM) | 50.000 |
| Type | 48 |
| Unit of Dimension | Metric |
| Width (Inch) | 0.354 |
| Width (mm) | 9.000 |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Toyota | Tundra | Rear Inner | |
| 2005 | Toyota | Tundra | Rear Inner | |
| 2004 | Toyota | Tacoma | Rear Inner | |
| 2004 | Toyota | Tundra | Rear Inner | |
| 2003 | Toyota | Tacoma | Rear Inner | |
| 2003 | Toyota | Tundra | Rear Inner | |
| 2002 | Toyota | 4Runner | Rear Inner | |
| 2002 | Toyota | Tacoma | Rear Inner | |
| 2002 | Toyota | Tundra | Rear Inner | |
| 2001 | Toyota | 4Runner | Rear Inner | |
| 2001 | Toyota | Tacoma | Rear Inner | |
| 2001 | Toyota | Tundra | Rear Inner | |
| 2000 | Toyota | Tacoma | Rear Inner | |
| 2000 | Toyota | Tundra | Rear Inner |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
